40-120003-01 Contact, Receiver, Micro Power, Crimp, 23 Amp, 14 Awg Max
Wire
Wire
Strip Length In
Type
Awg.
Stranded
18
16
14
Pull Test Values
18 Awg
16 Awg
14 Awg
(Values based on M22759/11xx)
NOTE 1: Refer to IPC/WHMA-A-620A standard (Ch. 11.1.2) for cable lengths, measurements and tolerance.
NOTE 2: Overall length of cable should be less 3/8" to compensate for the contact attachment.

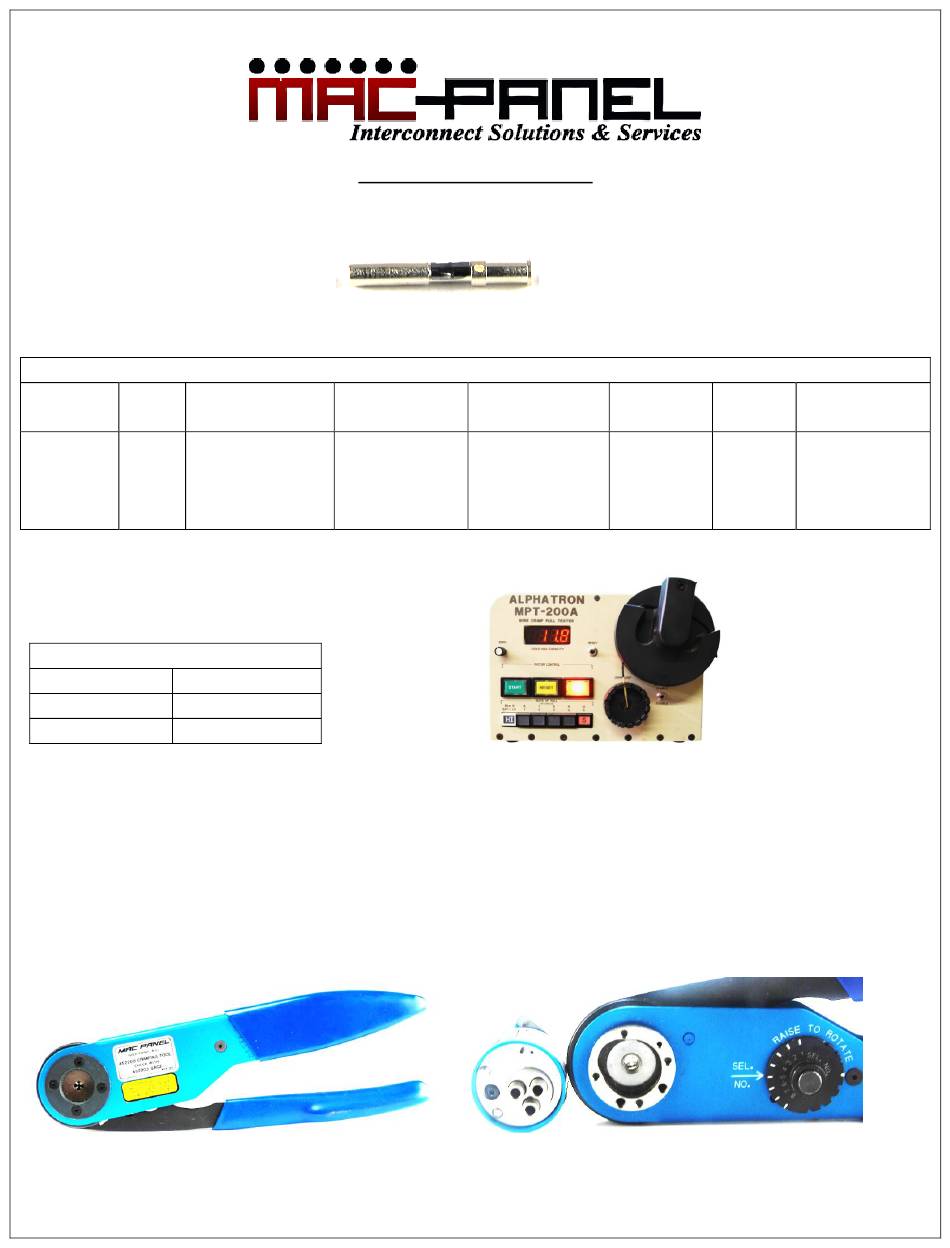

STEP 1) From the "Contact Crimp Information" Table, use the crimp tool and positioner set listed.
Fig. B. (Crimp Tool 452200)
Wiring Assembly Instructions
Fig. A. (Contact Sub-Assembly)
Contact Crimp Information Table
Crimp Tool
Inches
A) 1/4"
452200
A) 1/4"
A) 1/4"
32lbs
39lbs
48lbs
Hex Die Set/
Indicator
Positioner
452221
Yellow
Yellow
Yellow
(Example of Equipment)
Detail A. (Positioner and Crimp Tool)
IN 40-120003-01
.
Selector
Heat-shrink
No.
Length X Dia.
4
N/A
5
5
Page 1 of 2
