* Failure to follow these procedures will result in damage to either the DAK screws
Installation.

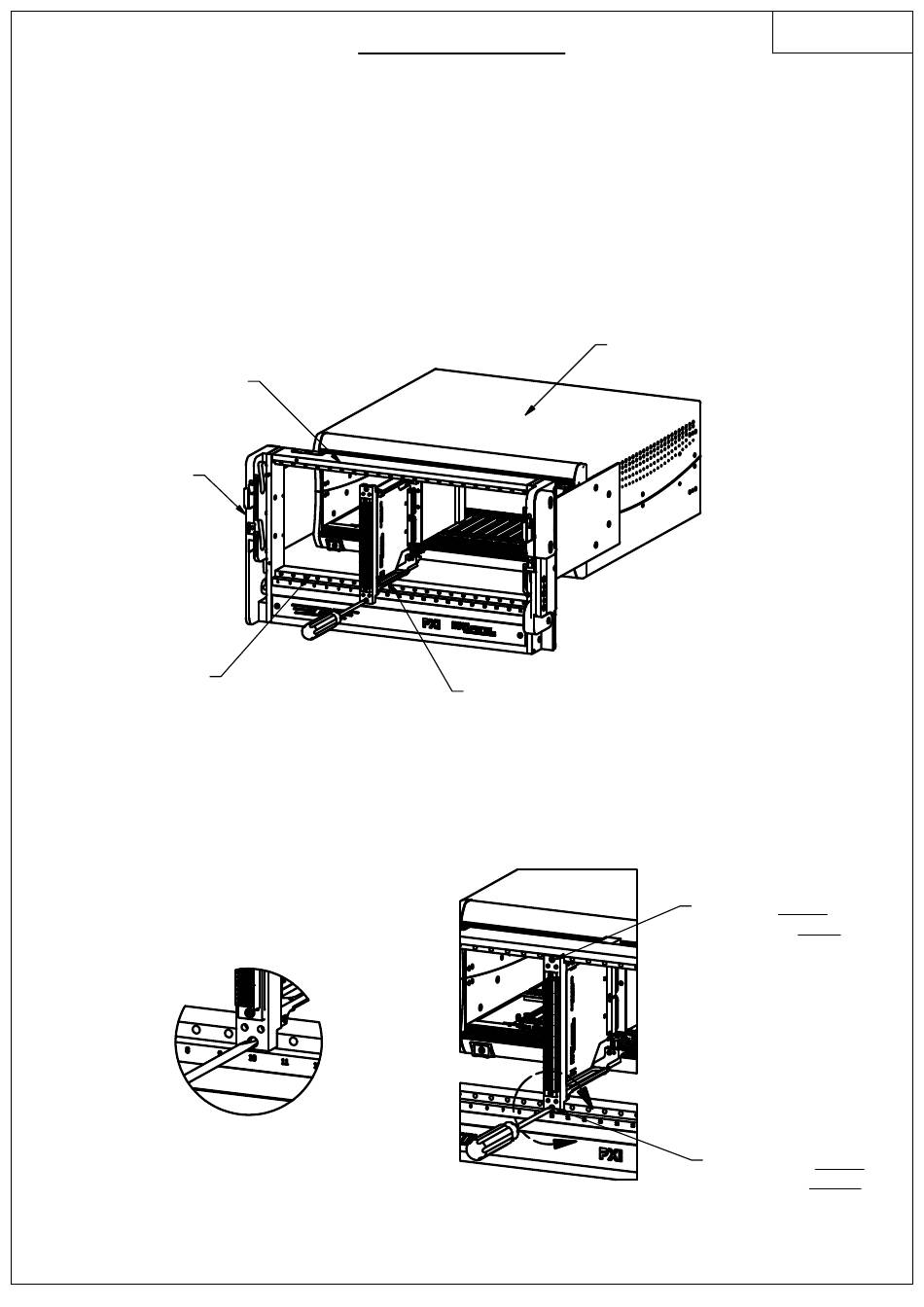

1) Slide the pre-assembled DAK / PXI card assembly into the assigned card slot.
Push in until the DAK screws touch the receiver top and bottom rails.
Top Rail
SCOUT Receiver
Bottom Rail
2) Using a 4.5mm flat bladed screwdriver, screw in the BOTTOM DAK screw first (Detail A)
This will engage the PXI card into the chassis backplane.
Once the bottom screw is properley seated, only then should the TOP screw be secured.
BOTTOM
be secured
DETAIL A
Creation Date :25/09/2014
Procedure sheet.
Procedure for installing and removing MACPanel DAK.
or Receiver frame and add stresses to the DAK / PXI Card assembly *
MUST
screw
FIRST
.
Your DAK / PXI card assembly is now correctly installed in the
SCOUT receiver and PXI Chassis.
PXI Chassis
DAK / PXI Card.
IN
91300
Top Screw MUST
be Tightened LAST
Bottom Screw MUST
be Tightened FIRST
1
Sheet No.
of
2
Advertisement
Table of Contents
Related Manuals for MAC Panel DAK
Summary of Contents for MAC Panel DAK
- Page 1 Bottom Rail DAK / PXI Card. 2) Using a 4.5mm flat bladed screwdriver, screw in the BOTTOM DAK screw first (Detail A) This will engage the PXI card into the chassis backplane. Once the bottom screw is properley seated, only then should the TOP screw be secured.
- Page 2 Procedure sheet. Removal. 1) Using a 4.5mm flat bladed screwdriver, unscrew the TOP DAK screw first. (Detail B) When TOP screw is free from the receiver top rail, only then should the BOTTOM screw be removed. (BOTTOM screw will pull the PXI card from the chassis backplane)
