REV A
7849211-30 Contact, ITA, Coax, RG180A/B (95 Ohm), RG179 (75 Ohm)
Wire
Wire
Strip Length In Inches
Type
Awg.
RG180
24
A) 1/4" B) 3/8"
RG179
C) 5/8"
NOTES: *For Center Pin Crimping (Step 7). **For Shield Crimping (Step 11).
Test Type
Hi-pot
NOTE 1: Refer to IPC/WHMA-A-620A standard (Ch. 11.1.2) for cable lengths, measurements and tolerance.
NOTE 2: Overall length of cable should be less 3/8" to compensate for the contact attachment.
STEP 1) From the "Contact Crimp Information" Table, use the crimp tool and hex die set listed.
Fig. B. (Crimp Tool 452200)
Wiring Assembly Instructions

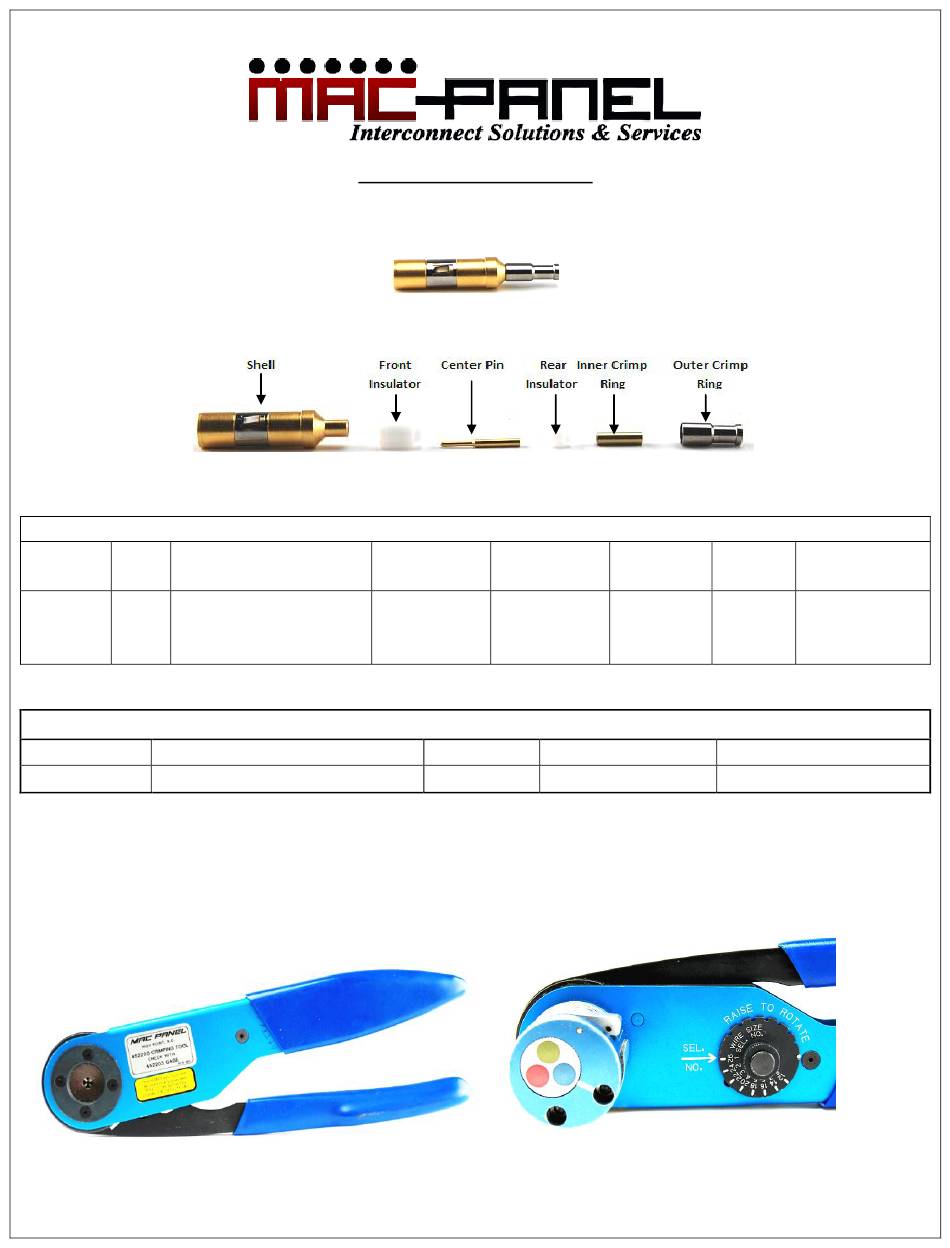

Fig. A. (Contact Sub-Assembly)
Contact Sub-Assembly Piece Parts.

Contact Crimp Information Table

Crimp Tool
**452300
Voltage (Hi-pot Only)
500V DC
Hex Die Set/
Positioner
*452200
*452205
** 452301

Test Requirements

Pull Test
5lbs
Detail A. (Crimp Tool and Positioner)
.
Indicator
Selector
No.
Blue
1
N/A
N/A
Depth Gauge
N/A
IN 7849211-30
Heat-shrink
Length X Dia.
N/A
N/A
Marker Settings
N/A
Page 1 of 4
