REV A
Wire
Wire
Strip Length In
Type
Awg.
Stranded
26
24
22
Pull Test Values
26 Awg
24 Awg
22 Awg
(Values based on M22759/11xx)
NOTE 1: Refer to IPC/WHMA-A-620A standard (Ch. 11.1.2) for cable lengths, measurements and tolerance.
NOTE 2: Overall length of cable should be less 3/8" to compensate for the contact attachment.
STEP 1) From the "Contact Crimp Information" Table, use the crimp tool and hex die set listed.
Fig. B. (Crimp Tool 452200/M)
Wiring Assembly Instructions
M02S006M Contact, ITA, Signal, Crimp 4 Amp 22-26 Awg
Fig. A. (Contact Sub-Assembly)
Contact Crimp Information Table
Crimp Tool
Inches
A) 3/16"
452200/M
A) 3/16"
A) 3/16"
3lbs
5lbs
8lbs
Hex Die Set/
Indicator
Positioner
452218
N/A
(Example of Equipment)
Detail A. (Positioner and Crimp Tool)
IN M02S006M
.
Selector
Heat-shrink
No.
Length X Dia.
3
N/A
4
5
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for MAC Panel M02S006M
Summary of Contents for MAC Panel M02S006M

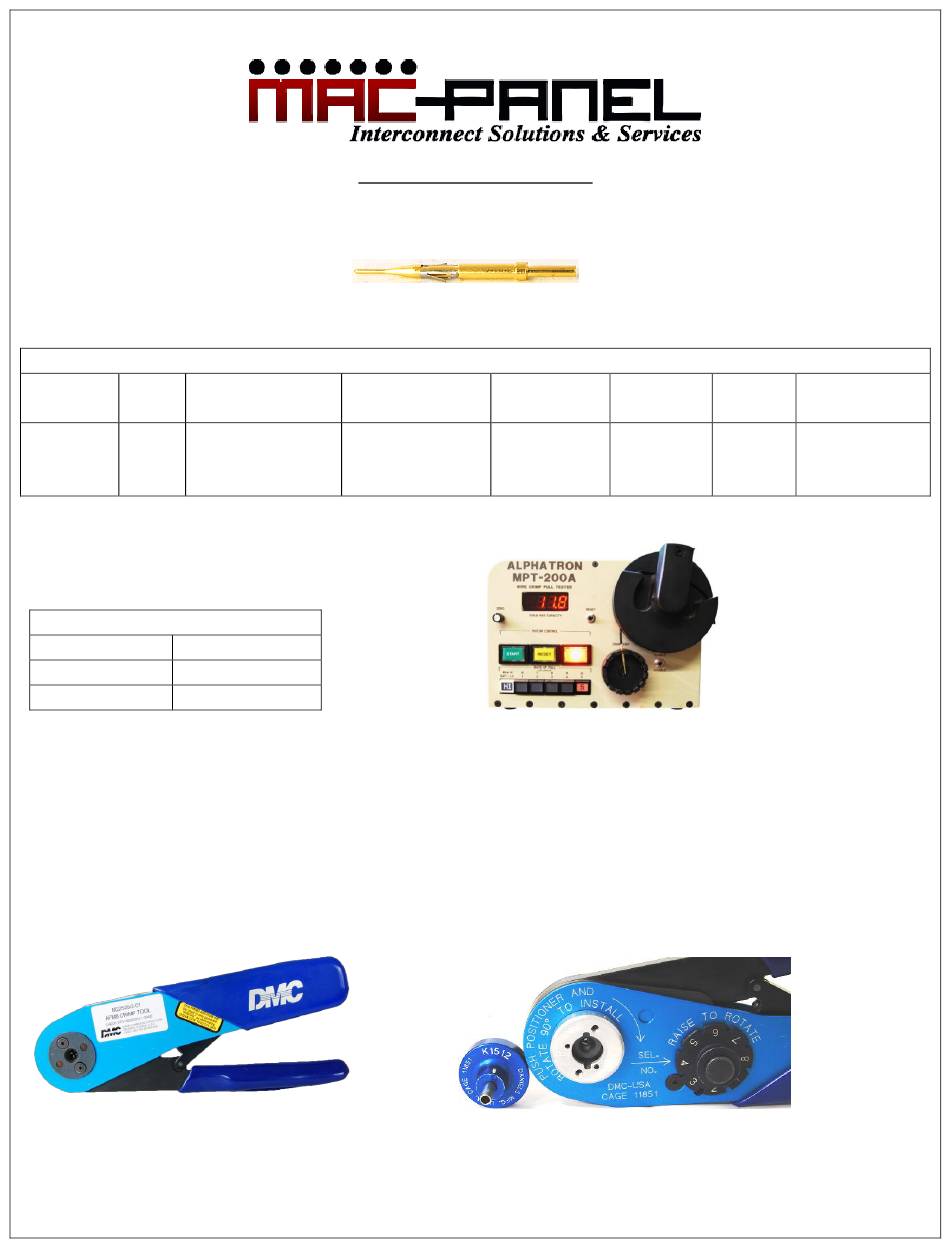

- Page 1 REV A IN M02S006M Wiring Assembly Instructions M02S006M Contact, ITA, Signal, Crimp 4 Amp 22-26 Awg Fig. A. (Contact Sub-Assembly) Contact Crimp Information Table Wire Wire Strip Length In Crimp Tool Hex Die Set/ Indicator Selector Heat-shrink Type Awg. Inches Positioner Length X Dia.
