KEY RK-2006LPP Operation Manual

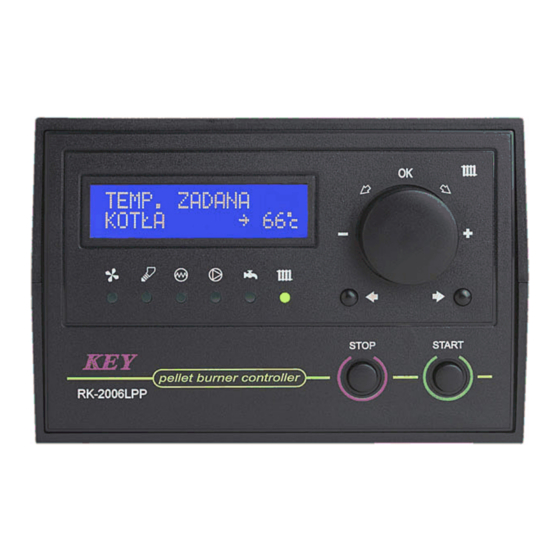

Auger fitted solid fuel boiler temperature controller
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATION MANUAL
RK-2006LPP
AUGER FITTED SOLID FUEL
BOILER TEMPERATURE CONTROLLER
Version DC19

Advertisement

loading
Need help?

Need help?

Do you have a question about the RK-2006LPP and is the answer not in the manual?

Questions and answers

Related Manuals for KEY RK-2006LPP

Summary of Contents for KEY RK-2006LPP

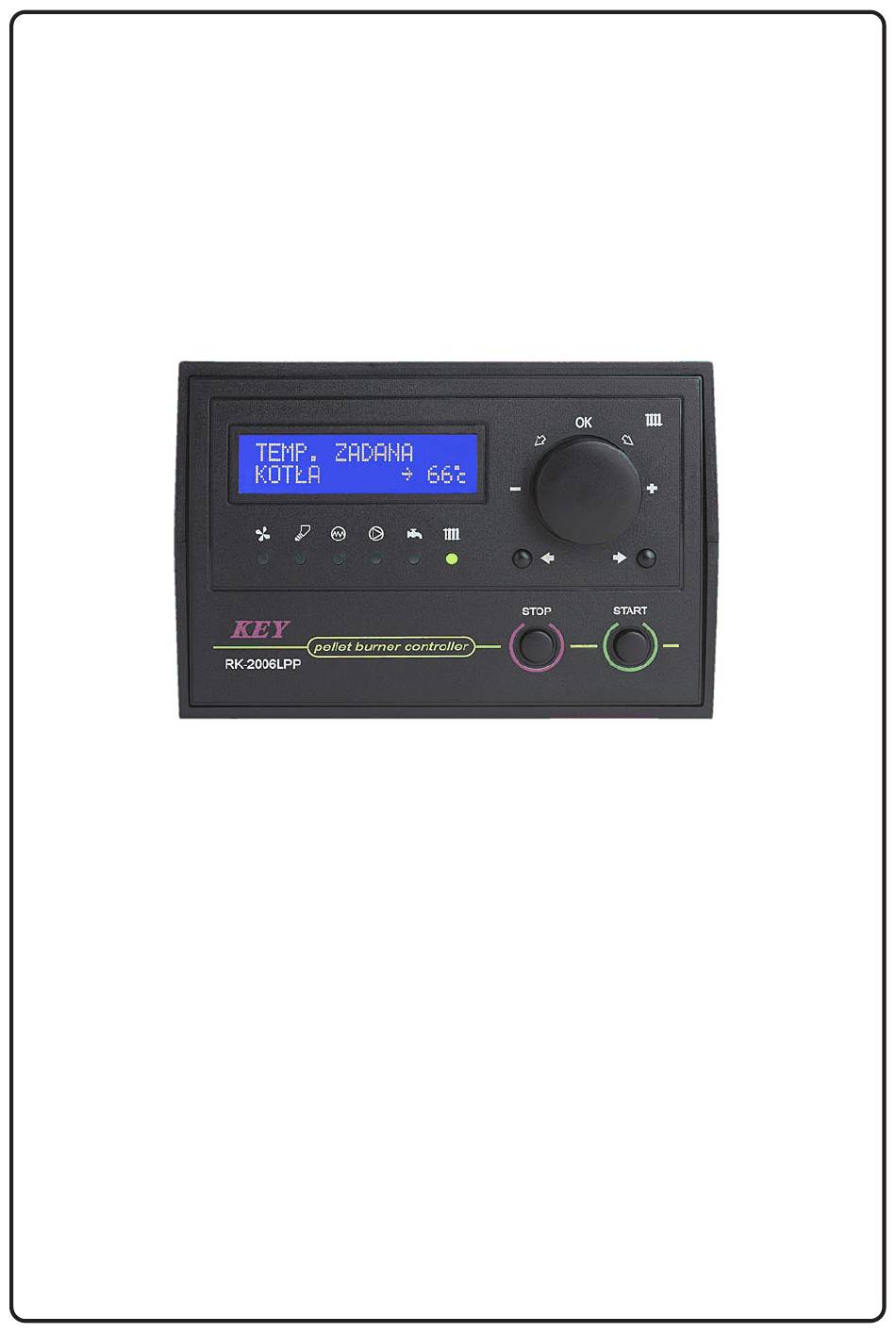

  • Page 1 OPERATION MANUAL RK-2006LPP AUGER FITTED SOLID FUEL BOILER TEMPERATURE CONTROLLER Version DC19...
  • Page 3 1. Application. Controller RK-2006LPP is designed for temperature control of solid fuel fired water boilers equipped with:: - Auger and feeding stoker working with the stoker, - Blow-in fan, - Ignition glow plug for automatic start, - Central heating pump,...
  • Page 4 8 - Previous parameter selection button, 9 - STOP button for alarm and settings change cancellation, 10- START button, 11- Next parameter selection button, 12- Boiler thermostat and parameters setting knob with OK confirmation button. Figure 1. Front panel of RK-2006LPP controller.
  • Page 5 3.1. Main window, adjustment mode and devices mode. Following turning on of the controller the main window is displayed. On the top of the display (1) boiler water temperature is shown, and on the bottom operation mode is displayed. Symbol „*” displayed in the right bottom corner indicates burner flame detection.
  • Page 6 STOP. Controller maintains central heating and domestic water pumps operation only to protect the boiler against overheating and auger channel ignition. Room thermostat contacts closing(call for heat) and domestic water temperature drop do not result in any action. Pressing START button (10) will result in switching the controller to STAND-BY mode.
  • Page 7 MINIMUM POWER OPERATION MODE. When in this mode the controller operates fuel feeding and fan operation to maintain firing to ensure the minimum fuel consumption. Fuel and air feeding rate is adjusted by the technician. If in spite of boiler minimum power, increase temperature follows of water temperature in relation to the top hysteresis parameter setting, the controller will be switched into EXTINCTION(SHUT DOWN) mode.
  • Page 8 3.3. ALARMS. RK-2006LP controller continually checks operations of installed devices as well as alarm sensors. In case of failure, the device activates alarm and proper operations are carried out. Information on the problem is also shown on the display. In addition depending on nature of damage the inner sound alarm system may be activated.
  • Page 9 S E N S O R Protection against boiler overheating. RK-2006LPP controller is provided with triple protection against boiler overheating. If boiler water temperature set point is equal to the programmed „Boiler max. temperature” service setting, the controller will engage central heating pump.
  • Page 10 Boiler temperature sensor damage. In case of boiler water temperature sensor damage the controller turns off the fan, engages central heating pump, controller switches into STOP mode and activates alarm: A L A R M : B O I L E R T E M P .

  • Page 11: Fuel Type Selection

    Burner work time. Burner start up counter. 4.1. Fuel type selection. RK-2006LPP controller enables programming ignition settings for four different fuel types. „Fuel type” parameter enables switching between particular settings. Fan, auger and igniter operation are saved for the selected fuel type.
  • Page 12 4.4. Domestic water circuit operation parameters. These parameters specify how the controller ensures domestic water temperature. In case of the system without domestic water circuit, it is not possible for the user to view and change these parameters. Domestic water desired temperature - parameter that specifies temperature of water in domestic water tank that will be obtained by the controller.
  • Page 13 4.6. Flame optical detection parameters. These parameters specify operation of burner flame optical detector. If the system is fitted with flame temperature detector, parameters change and viewing is unavailable. The current furnace brightness determined by an optical detector - this parameter displays the current flame brightness measured by the optical detector.
  • Page 14 Burner start up counter. Reading of this counter defines start number of the ignition attempts. B U R N E R S T A R T C O U N T 5. Settings – service mode. Holding OK button for 3 seconds enters the service mode where you can review and change the parameters by pressing the selection buttons (8 and 11).

  • Page 15: Language Selection

    Outputs test. Service mode end. 5.1. Language selection. RK-2006LPP controller interface offer the function of language selection. Number of available languages depend on software version being used. L A N G U A G E E N G L I S H 5.2.
  • Page 16 M I N . F A N S P E E D H E A T I N G Max. fan speed during heating up - this parameter is available, if the function of fan modulation during boiler start is selected. This parameter specifies power of the fan at end of boiler start.
  • Page 17 Fan speed during cleaning mode - only when AUTO is on. F A N S P E E D D U R I N G C L E A N I N G 1 0 0 % Fan scavenge (air purging) - the controller offers the function of scavenge (air purging), which simply includes periodical switching on of the fan during burner operation for the purpose of removal of accumulated gases.
  • Page 18 Fuel feed cycle - auger operation cycle includes fuel feeding and feeding pause. This parameter specifies the time of the whole cycle. The desired value specifies all burner work modes which require fuel feeding (ignition, maximum and minimum power). F U E L F E E D C Y C L E 1 5 s...
  • Page 19 Stoker pause time - this parameter specifies pause time during stoker operation when in work cycle. This setting is unavailable if the stoker is switched off or in automatic mode. S T O K E R P A U S E T I M E Stoker extra work time - this parameter is available only, when the stoker works in automatic mode and it specifies stoker work time after auger switching off.
  • Page 20 5.4. Fuel ignition, extinction (shut down) and cleaning combustion chamber. Flame detector - flame detection may follow with two methods: burner temperature measurement or brightness measurement. In case when temperature sensor is used, depending on its location, temperature measurement range may be from several degrees to several hundred degrees.
  • Page 21 F U E L I G N I T I O N T I M E 3 m i n Ignition try count - this parameter specifies how many times ignition may fail until the controller activates „Out of fuel alarm” and switches into STOP mode. The alarm is indicated with adequate message displayed on the display.
  • Page 22 Cleaning mechanism retraction time - this parameter is available only when the cleaning mechanism is activated (AUTO mode, or CYCLE). It specifies the time required for the mechanism retraction to the rest position after turning off the control output. M E C H A N I S M R E T U R N T I M E 1 2 0 s...
  • Page 23 P U M P W O R K M O D E A U T O Central heating (CH) pump periodic switching on - this parameter enables periodic operation of central heating pump and water transfer in the heating circuit. The pump is activated periodically every 30 seconds according to selected time in „CH pump periodic work”...
  • Page 24 Increase temperature during domestic water heating - Closing thermostat contacts means that boiler operation will follow according to the temperature programmed with the thermostat knob. If domestic water tank heating is necessary, the desired boiler temperature is higher in relation to the desired domestic water by the selected value in this setting.
  • Page 25 5.7. Boiler work parameters. Minimum boiler temperature - this parameter specifies boiler temperature when the controller shall switch off central heating and domestic water pumps. It is the lowest temperature setting of the boiler that can be programmed with thermostat’s knob.
  • Page 26 Burner power modulation - when modulation is switched on it will results in gradual reduction of fan speed and fuel dose to obtain boiler water temperature corresponding to the programmed setting. B U R N E R P O W E R M O D U L A T I O N Y E S Burner power modulation factor - this parameter specifies degree setting when...
  • Page 27 Burner off delay – this parameter determines the time of the burner in minimum power the thermostat contacts open. If, after the programmed time thethermostat input will not be closed again, the torch will be lit, and the controller switches to STANDBY.

  • Page 28: Technical Data

    7. Controller disassembly. If controller disassembly is necessary follow the following procedure: - Disconnect the boiler and controller from power supply, - Remove the controller from the boiler, - Disconnect terminals and wires from the controller. 8. Technical Data. Power Supply 230V ±...
  • Page 29 Figure 2. RK-2006LPP Controller connection diagram. 10. Notes. Settings. Light Parameter Thermostat Boiler max. power. Domestic water desired temperature. HTW pump Domestic water heating priority. Brightness when fuel ignition has occurred (FD-1). Igniter Burner temperature with fuel ignited (PT-1000, CT-1/2).
  • Page 30 Settings Light Parameter Fan modulation during boiler start. Min. fan speed during heating up. Max. fan speed during heating up. Ignition modulation start delay. Fan speed during ignition. Fan speed at max. power. Fan speed at min. power. Fan speed at extinction. Fan speed during cleaning mode.
  • Page 31 Settings Light Parameter Hysteresis loss of flame (temperature sensor). Flame failure detection delay. Fuel ignition time. Ignition try count. Furnace extinction time. Furnace cleaning mode. Igniter Cleaning mechanism work time. Cleaning mechanism retraction time. Cleaning mechanism pause time. Number shut downs before cleaning. Minimum operating time without cleaning.

  • Page 35: Declaration Of Conformity

    DECLARATION OF CONFORMITY Manufacturer: Przedsiębiorstwo Wielobranżowe KEY 11-200 Bartoszyce, ul. Bohaterów Warszawy 67 hereby declares that the product: RK-2006LPP Controller is in conformity with provisions of the following directives: 73/23/EWG i 93/68/EWG (LVD 73/23/EEC + 93/68/EEC), as superseded by Directive 2006/95/WE (EC Directive 2006/95/EEC);...
  • Page 36 Manufacturer: Przedsiębiorstwo Wielobranżowe KEY 11-200 Bartoszyce, ul. Bohaterów Warszawy 67 tel. (89) 763 50 50, fax. (89) 763 50 51 www.pwkey.pl e-mail:pwkey@onet.pl...
