  • Page 1 OPERATION MANUAL RK-2001W2 SOLID FUEL FIRED BOILER TEMPERATURE CONTROLLER Version C112...
  • Page 3: Operation

    1. Application. RK-2001W2 controller is a controller designed for temperature control of solid fuel fired boilers. The temperature of the boiler is kept on level set by the user by controlling the speed of the blow-in fan. The controller constantly monitors the temperature of water in the boiler, displays it on the display and controlls the central heating pump.

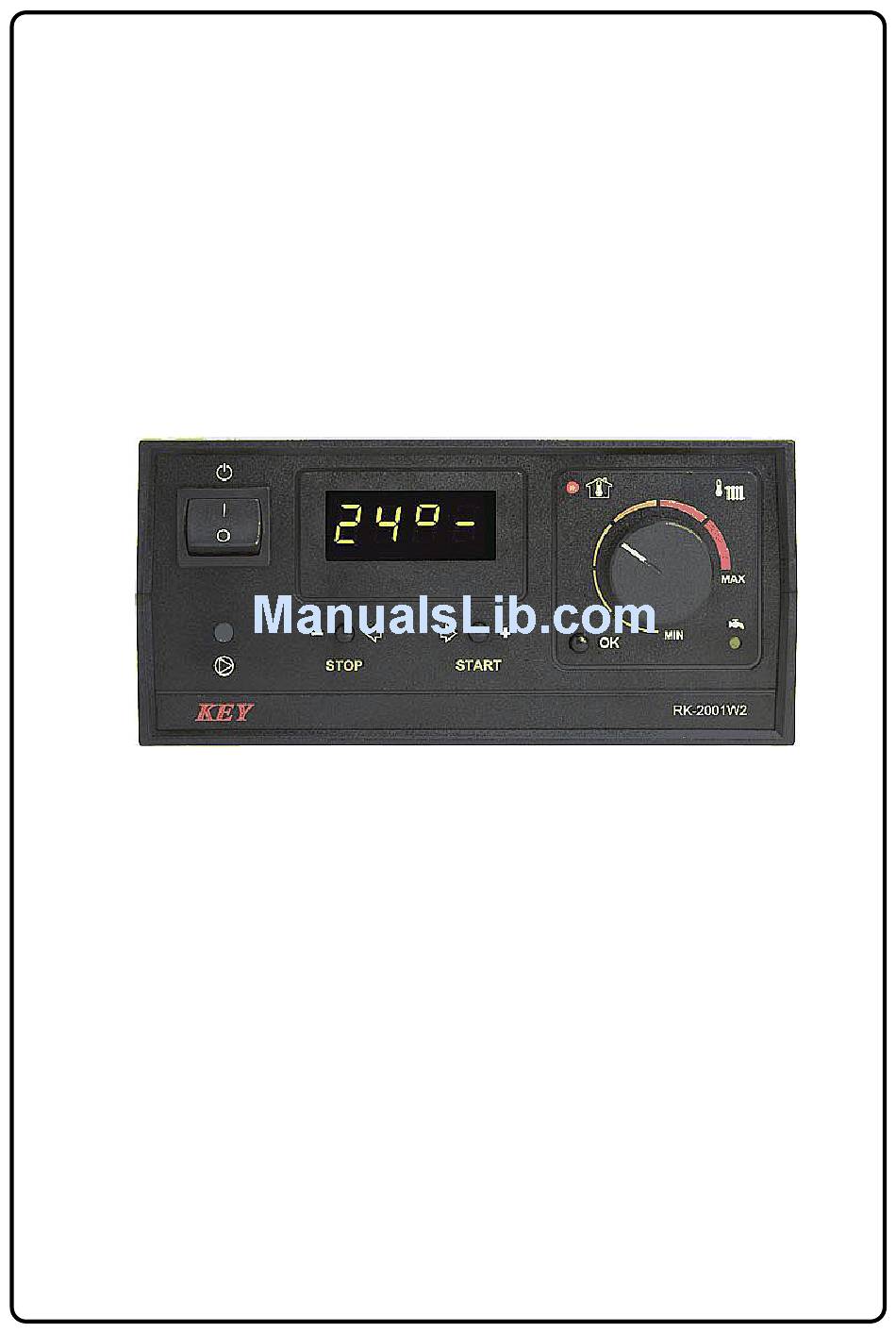

  • Page 4 Picture 1. Front plate of the RK-2001W2 controller Basic operation of the controller is carried out by setting the desired temperature with boiler thermostat knob, other functions are carried out according to parameters programmed in service mode. The change in the boiler temperature setting is displayed on the display for a few seconds, e.g.
  • Page 5 Table 1. User parameters list. Disp. Parameter Min Max Step Factory default C 45 Boiler desired temperature. L 45 H 85 1°C L 45 co C Central heating pump work when „C” (pump off when „-”). cu u Heating up „d” - total bacteria control in hot water tank. 50°C Water temperature in hot water tank.
  • Page 6 parameter value with the < or > button we choose [End] and pres OK or wait for 1 minute – the controller will exit the service mode and will start indicating the temperature of the water in the boiler. Table 2. Service parameters list. Factory Disp.
  • Page 7 5.1. Fan work parameters. Fan power [Π100] - this value defines power of the fan. When „Π” parameter is set to „0-10” this is the maximum power of the fan which can be achieved during automatic fan control. Minimum fan power [n 40] - lowest fan power which can be used when automatic fan speed control is on and when fan speed is gradually increased during boiler start.
  • Page 8 The work mode and pause time of CH pump [Pc 2] - in STOP mode or when the room thermostat circuit is not shorted, CO pump is turned on for 30 seconds to move water in the heating system. This parameter controls the repeat time. Setting this parameter to „--”...
  • Page 9 STB - the controller has additional protection from overheating which is independent from the processor. In case the temperature increases over 95°C, the control process is turned off by turning the fan off and launching the central heating pump. The fan and the pump are turned on to the control process again when temperature drops below 89°C.
  • Page 10: Additional Functions

    - [Ar 4] mode - output may control devices working together with blow-in fan. CAUTION. Equipment should be connected to additional output using UM-1 module. Connection schemes are shown on picture 3. 5.8. Factory defaults. Return to standard settings set by the producer by choosing [Prod] and pressing OK button.
  • Page 11: Controller Removal

    ability to cancel it by pressing STOP button, in spite of temperature below 90°C, may mean permanent damage of boiler temperature sensor (e.g. if the boiler overheated above 150°C). In case of programming the sensor and central heating pump in the service mode the controller tests the hot water sensor circuit.
  • Page 12 Picture 2. RK-2001W2 connection diagram. Picture 3. UM-1 module connection diagram.
  • Page 13 10 Notes. Disp. Parameter User Π100 Fan max work power or max power when Πr 0-10. n 40 Minimum fan power. Πh 2 Fan speed decrease coefficient. Πr 0 Automatic fan speed control and time of fan start. Πn15 Fan work time. Πu 6 Fan pause time.
  • Page 16 Producer: P.W. KEY 11-200 Bartoszyce, ul. Bohaterów Warszawy 67 tel. (89) 763 50 50, fax. (89) 763 50 51 www.pwkey.pl e-mail:pwkey@onet.pl...
