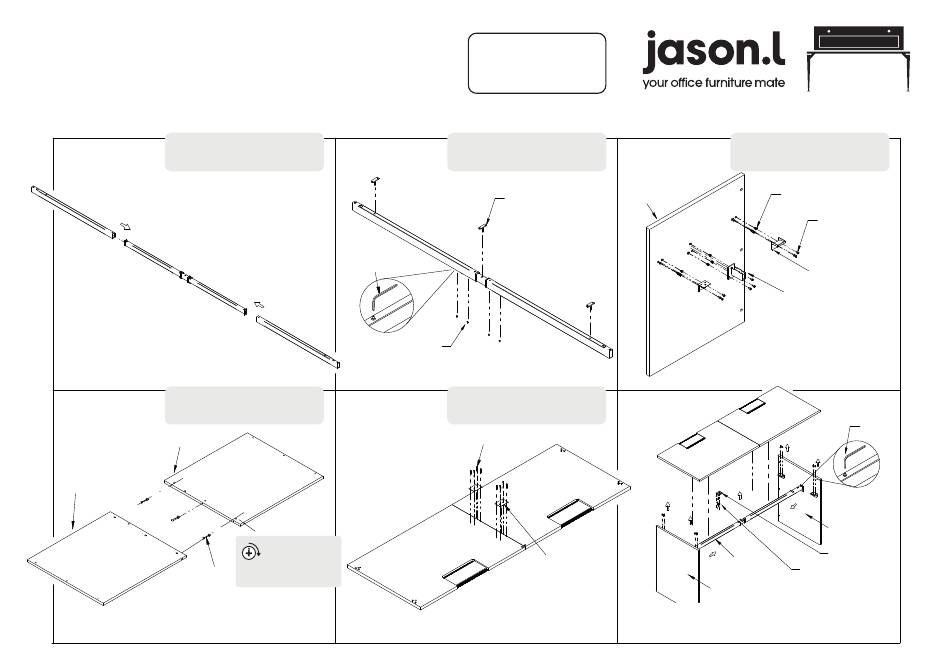

ASSEMBLY INSTRUCTIONS
Uniform Reception
UNEXTM
Step 1
Extendable Beam
Assembly of metal beam.
* Follow arrow direction.
UNFPLR1095
Step 4
Front Panel
Front panel
Front panel
Double bolt
Assemble front panel into another front
panel as shown in figure above.
Step 2
Allen
key
Set screw
Assembly of metal beam.
Step 5
Function of Klix Cam
Turn for locking
75° Min - 195° Max
Make sure the arrow is pointing
upwards before inserting into
the panel's hole.
Assemble hole bracket onto front panels
as shown in figure above.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
UNEXTM
Extendable Beam
Leveller
UNWT107
Worktop
Chipboard screw
Hole bracket
UNSPLR7095
Step 3
2x Side Panels
Side
D Nut
Panel L
Bracket
Rectangular Beam
Connector A
Assemble bracket into Side panel L &
assemble rectangular beam connector
A which is taken from hardware UNEXTBM
*Assembly of side panel R is mirror to
assembly side panel L
Step 6
UNEXTBEAM
PHM Screw
UNSPLR7095
Assemble UNEXTBEM metal beam into
UNSPLR7095 side panels as above.
*Follow arrow direction
PHM Screw
Allen
key
UNSPLR7095
L Bracket
Page 3 of 4
