Summary of Contents for MPPT M2430C

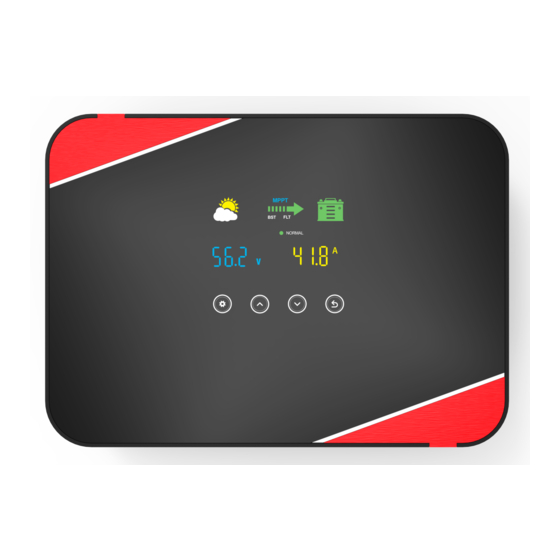

- Page 1 MPPT Solar Charge Controller Flush Mount Negative Grounded M2430C User Manual *We may modify these specifications without prior notice.
-
Page 2: Safety Tips
1. Warnings and Tools Icon Chart 2. Safety Tips · It is very important to review this manual thoroughly before attempting installation. Icons Name Description · Beware of any nearby electrical equipment that may interfere with installing this device. And please don’t plug in any AC source to this DC-DC product, or it may cause High voltage device. -
Page 3: Product Features
Thank you for choosing our products. This solar charge controller is a device for solar charge regulation with the latest MPPT algorithm technology. This device is flush mount designed, mainly used in small and medium sized o -grid solar power systems, especially for system M2430C cabinet or RV use installation. -
Page 4: Wiring Sequence
5. Fixture & Wiring Instructions 7. RS485 connection diagram (Rj12) ① ⑥ ① ⑥ 1. Remove the magnetic covers. 2. Check and confirm the screwing condition RS485 PIN in the fixture surface, and tighten the screws according to the instruction in the picture. PIN-1 PIN-2 PIN-3... - Page 5 Not in Nighttime The screen displaying cycles through di erent views page by page as following Flowing Charging pictures (with temperature unit set on F ) In MPPT Charge MPPT PV Input Voltage & Charging Power & Battery Type & Battery...
-
Page 6: Button Instruction
9. Button Instruction Battery Type Battery Description Description Type Description Button Current mode Lead-acid Battery Parameters set on default, not adjustable. Long Press Enter setting mode View Mode Sealed Battery SLD / AGM Battery system voltage automatically recognized. Gel Battery View the previous page View Mode Short Press... - Page 7 11. Button Instruction 10.4 LI Mode Battery setting Description Quick Troubleshoot Code Error – – No Error Check battery bank voltage Battery voltage has Battery for compatibility with exceeded controller Over-voltage controller. limit. Ensure the controller is placed Controller exceeds Equipment in a well-ventilated cool, operating temperature...
- Page 8 12V, n=1; 24V, n=2. For example, the equalize charge voltage for a 12V FLD (Flooded) battery bank is 14.8V*1=14.8V. The equalizing charge voltage for a 24V FLD (Flooded) battery bank is 14.8V*2=29.6V. Controller Parameter Value M2430C Model No. System Wiring Negative Grounded Grounded...
