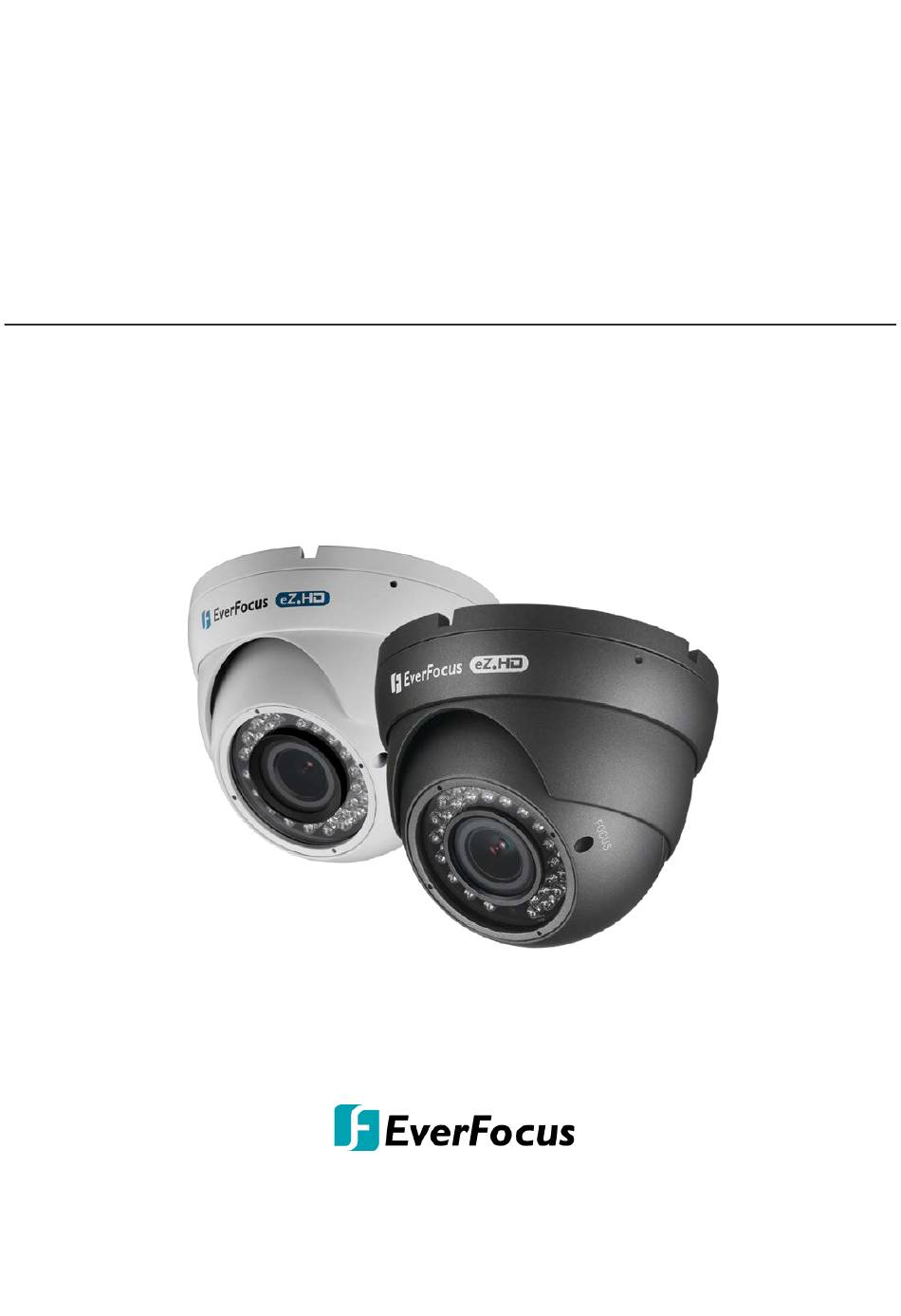

- Page 1 Series EBD935F 1080p Full High Definition True Day/Night Outdoor IR Ball Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: February 2016...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................12 5. Specifications ........................16... -
Page 5: Introduction
EBD935F eZ.HD IR Ball Camera 1. Introduction The EverFocus eZ.HD Series EBD935F ball camera is equipped with a 1/2.9" SONY 2.24M pixels CMOS sensor and providing resolution of 1080p. Featured with the Digital Wide Dynamic Range (D-WDR) function, the camera can provide clear images even under back light circumstances where intensity of illumination can vary excessively. -
Page 6: Cable Description
EBD935F eZ.HD IR Ball Camera 2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source. 1080p, 720p and 960H output, using a 75 Ohm BNC-type Video Output coaxial cable. Optional power pigtail cable. The red wire is positive (+); DC Power Pigtail Cable while the black wire is negative (-). -
Page 7: Installation
EBD935F eZ.HD IR Ball Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. Drill four holes according to the supplied Template Plate, and insert the supplied Plastic Anchors into the holes. - Page 8 EBD935F eZ.HD IR Ball Camera Unscrew the outer housing by twisting it counterclockwise and then remove the outer housing from the camera base. Screw the base plate to the wall or ceiling with supplied four Screws and Hexagon Wrench. a. If you want to wire the cables from the side cut of the camera base, attach the camera body to the base plate and run the cables through the camera base first, then screw the camera base to the ceiling / wall.
- Page 9 EBD935F eZ.HD IR Ball Camera b. If you want to wire the cables through the wall, attach and screw the camera base to the ceiling / wall. Then attach the camera body to the base plate. Connect the camera to the 12V DC power source using the supplied DC Power Pigtail Cable or power adapter.
- Page 10 EBD935F eZ.HD IR Ball Camera Note: The function button is using to control direction, and also to switch video format and video output. Please follow the detailed instruction as below to switch the camera to: Switch between 1080p and 720p (Default, 1080p): Press Upward for 5 Seconds ...
- Page 11 EBD935F eZ.HD IR Ball Camera Screw the two set screws by using the supplied Hexagon Wrench.
-
Page 12: Configuration In The Osd Menu
EBD935F eZ.HD IR Ball Camera 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure as below: No. - Page 13 EBD935F eZ.HD IR Ball Camera Level Middle, High, Low Area Position, Size,↑,↓,→,← Default Select Area1, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black Mask On/Off HSBLC Level 0-100 All Day Model Night AGC Level 0-255 Default AWC→SET Indoor White Outdoor Balance Blue 1-500 Manual...
- Page 14 EBD935F eZ.HD IR Ball Camera Mirror Off, Mirror, V-flip, Rotate Neg. Image Off/On Select Area1,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitiv 0-100 Color Green, Blue, White, Red Motion 1.00,0.75,0.50, Trans 0.25 View Type Off, Block, Outline, All OSD View On/Off Alarm Alarm Out On/Off Time 1-15...
- Page 15 EBD935F eZ.HD IR Ball Camera x2, x4, x6, x8,x10, x15, x20, Sens-up x25, x30 Pos/Siz Position, Size,↑,↓,→,← Black DPC Start Press Enter DPC View Off/On Level 0-255 CAM ID 0-255 RS485 ID Display Off/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10 Sharpness Auto Start AGC...
-
Page 16: Specifications
EBD935F eZ.HD IR Ball Camera 5. Specifications EBD935F Pickup Device 1/2.9" SONY 2.24M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Picture Elements 1920 (H)*1080 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48dB (AGC off) Electronic Shutter... - Page 17 FAX: +81 3 5625 8189 www.everfocus.com www.everfocus.co.jp sales@everfocus.com info@everfocus.co.jp Ihr EverFocus Produkt wurde Your EverFocus product is designed and entwickelt und hergestellt mit manufactured with high quality materials qualitativ hochwertigen Materialien and components which can be recycled und Komponenten, die recycelt und and reused.
