- Page 1 Series EBD930 720p Analog High Definition True Day/Night Outdoor IR Ball Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: Nov., 2014...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 5 2. Cable Description ......................6 3. Installation ........................7 Installation and Adjustment ................... 7 4. Configuration in the OSD Menu ..................11 5. Specifications ........................15... -
Page 5: Introduction

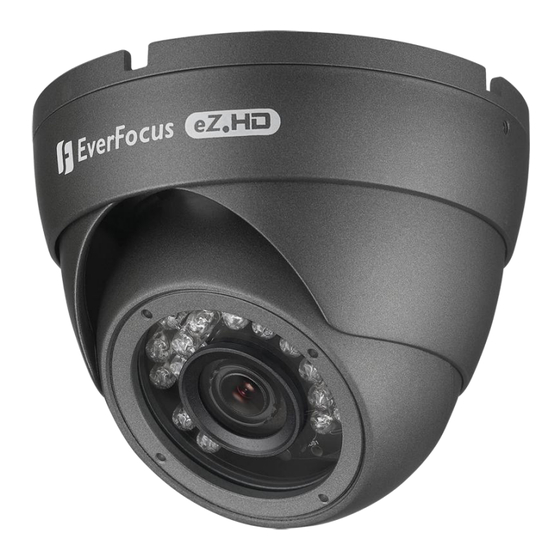

EBD930 eZ.HD IR Mini Ball Camera 1. Introduction The EBD930 ball camera is equipped with a 1/2.8" SONY 1.37M pixels CMOS sensor and providing high resolution of 720p. Featured with the Digital Wide Dynamic Range (D-WDR) function, the camera can provide clear images even under back light circumstances where intensity of illumination can vary excessively. -
Page 6: Cable Description
EBD930 eZ.HD IR Mini Ball Camera 2. Cable Description Name Descriptions Power Cable Connect to a 12VDC power source. Dual Video Output 720p and 960H output, using a 75 Ohm BNC-type coaxial cable. Optional power pigtail cable. The red wire is positive (+); DC Power Pigtail Cable while the black wire is negative (-). -
Page 7: Installation
EBD930 eZ.HD IR Mini Ball Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. Drill four holes and insert the supplied Plastic Anchors into the holes. If you wish to run the wires into the wall, then drill the circle in the middle of Template Plate. - Page 8 EBD930 eZ.HD IR Mini Ball Camera Unscrew the outer housing by twisting it counterclockwise and then remove the outer housing from the camera base. Screw the base plate to the wall or ceiling with supplied four Screws and Hexagon Wrench. a.
- Page 9 EBD930 eZ.HD IR Mini Ball Camera b. If you want to wire the cables through the wall, attach and screw the camera base to the ceiling / wall. Then attach the camera body to the base plate. Connect the camera to the 12VDC power source using the supplied DC Power Pigtail Cable or power adapter.
- Page 10 EBD930 eZ.HD IR Mini Ball Camera Note: The function button is not only for direction control, also for switching video format and video output. Please follow the detailed instruction as below: Push the joystick "down" button key over 5 seconds to switch video format from PAL to NTSC.
-
Page 11: Configuration In The Osd Menu
EBD930 eZ.HD IR Mini Ball Camera 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu. For details on the OSD menu structure as below: Main Sub Menu Sub Menu / Function... - Page 12 EBD930 eZ.HD IR Mini Ball Camera Indoor Outdoor Blue 1-500(50*) Manual 0-100(50*) 0-60(1*) D→N(Delay) Ext* 0-60(1*) N→D(Delay) D→N(AGC) 1-255(240*) D→N(Delay) 0-60(1*) Auto N→D(AGC) 1-255(50*) 0-60(5*) Day & N→D(Delay) Night Color Burst Off*/On IR Smart Level 0-15(4*) Area Position, Size,↑,↓,→,← IR PWM 0-100(100*) 2DNR Middle*/Low/Off/High...
- Page 13 EBD930 eZ.HD IR Mini Ball Camera Time 1-15(3*) Default Select Area1*,Area2,Area3,Area4 Position, Size,↑,↓,→, Color* ← Display Position, Size,↑,↓,→, Mosaic ← Privacy Position, Size,↑,↓,→, ← White*, Black, Red, Blue, CYAN, Color Yellow, Green 1.00*,0.75,0.50, Trans 0.25 Default Language ENG*/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC AGC level 0-255(65*) Level...
- Page 14 EBD930 eZ.HD IR Mini Ball Camera Level 0-10(6*) Sharpness Auto* Start AGC 0-255(50*) End AGC 0-255(200*) Black Level 0-60(0*) Blue Gain 0-100(50*) Red Gain 0-255(50*) Adjust User*,0.45,0.50,0.55,0.6 CRT/LCD 0,0.65,0.70,0.75,0.80,0.8 Gamma 5,0.90, LCD* 0.95,1.00 Blue Gain 0-100(50*) Red Gain 0-100(50*) Off*/On Video.
-
Page 15: Specifications
EBD930 eZ.HD IR Mini Ball Camera 5. Specifications EBD930 Pickup Device 1/2.8" SONY 1.37M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Picture Elements 1280 (H)*720 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on S/N Ratio Over 48dB (AGC off) Electronic Shutter... - Page 16 TEL: +91 22 6726 4500 FAX: +91 22 6726 4518 www.everfocus.in sales@everfocus.in Ihr EverFocus Produkt wurde Your EverFocus product is designed and entwickelt und hergestellt mit manufactured with high quality materials qualitativ hochwertigen Materialien and components which can be recycled und Komponenten, die recycelt und and reused.
