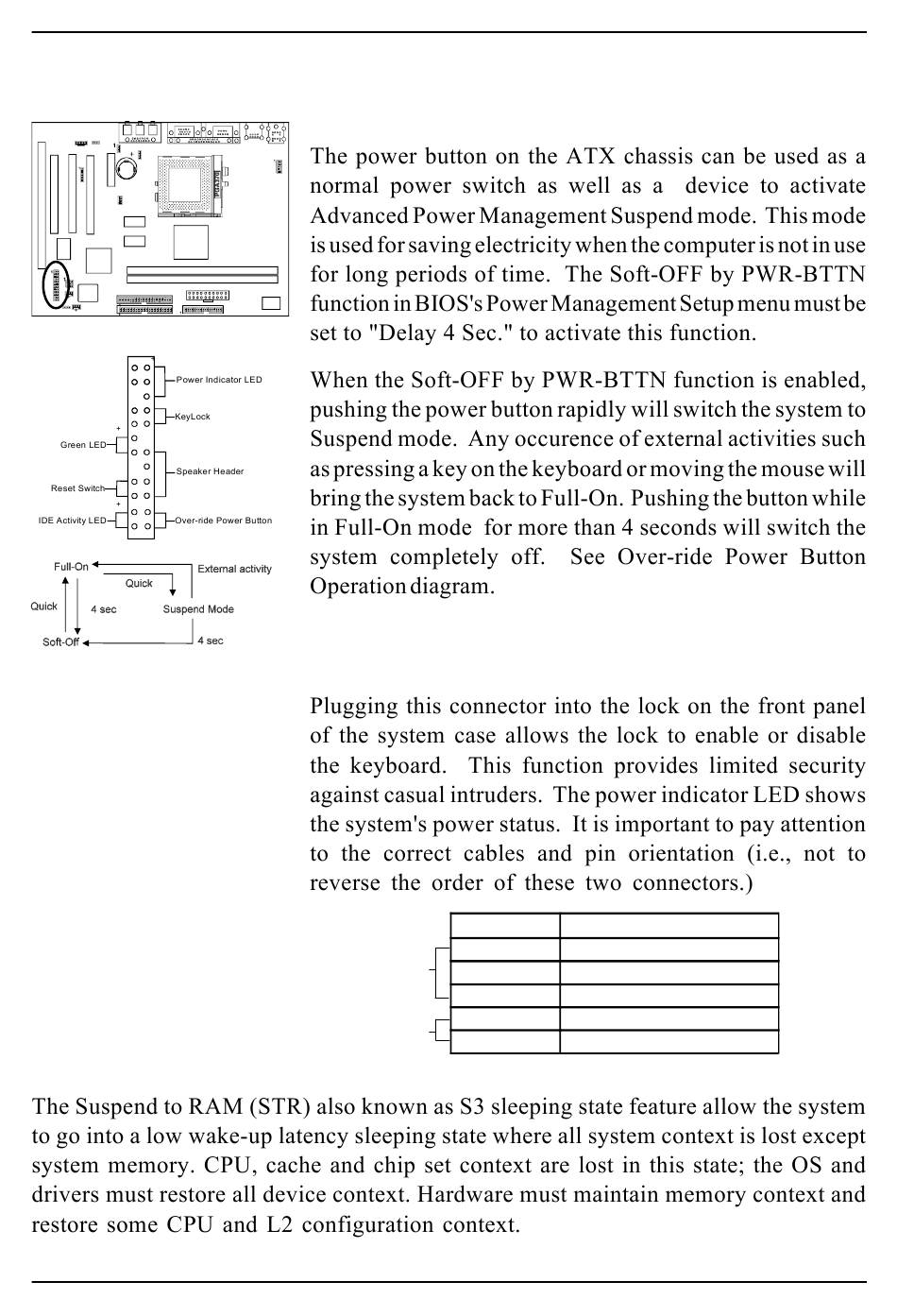

Front Panel Connector Set (CN9) A through E
1

Over-ride Power Button

Operation
Suspend to RAM (STR)
12
A. Over-ride Power Button Connector
B. Keyboard Lock & Power Indicator LED
Connector
Power Good LED
Keyboard Lock
Pin Definition
1 +5V DC
2 No Connect
3 Ground
4 Keylock
5 Ground
