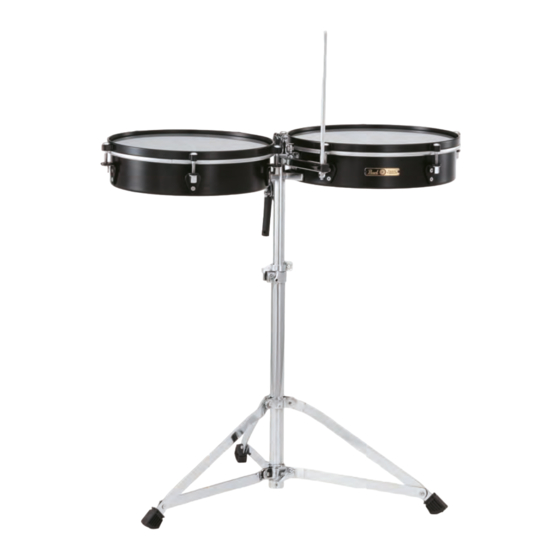

- Page 1 PEARL TRAVEL TIMBALES PTTM-1415 Instruction Manual Congratulations on your purchase! For optimum performance, please read this Instruction Manual before playing. 取扱説明書 このたびは、 本製品をお買い上げいただき誠にありがとうございます。 製品の機能を十分に発揮してお使いいただくために、 この取扱説明書をぜひご覧下さい。...
- Page 2 Step 1. Step 2. Stand Assembly Stand Assembly スタンドの組み立て スタンドの組み立て Extend the legs of the Tripod Base and place it on a flat Locate the Accessory Post and Mount (FIG.2). Attach surface. Insert the Upper Tube Assembly into the Tripod the Mount with the Wing-Bolt facing upward to the Base and tighten Wing-Nut (A).
- Page 3 CAUTION 注意 Fig.3-A / 図3-A Fig.3 / 図3 Failure to fully insert the Hinge Bracket into the Guide Hooks may cause the Travel Timbales to fall off the stand resulting in damage or personal injury. ヒンジブラケットをガイドフックに完全に挿入しないと、 トラベ ルティンバレスがスタンドから落下し、 破損や人身事故の原因に なることがあります。...
- Page 4 Timbales to Stand Attachment トラベルテ ィ ンバレスの設置 Loosen Wing-Nut (A) of the height adjustment collar of the Tripod Base and set the Travel Timbales to your 注意 desired height. Tighten Wing-Nut (A) to secure the setting. Next, loosen and adjust the Memory Lock onto 演奏中の転倒や落下を防ぐために、...
