Pearl BD-10 Instruction Manual

For optimum performance, please read this Instruction Manual before playing.
Adjustable Clamp Plate
Assembly Instructions
1. Partially raise the Pad on the Base Assembly and
turn it on its side to rest on a stable flat surface.
Next, place the Support Bar with the angled end
under the base assembly. Insert a Key Bolt with
Washer through the Support Bar into the threaded
hole in the Base. Slightly tighten by turning the Key
Bolt clockwise (Fig.1). Do NOT fully tighten the Key Bolt.
Support Bar
Washer
Key Bolt

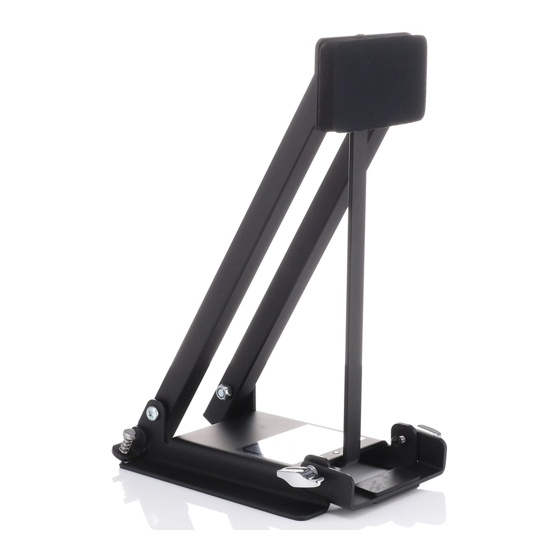

PEARL BASS DRUM PRACTICE KIT
Instruction Manual
Congratulations on your purchase!
Pad
Support Bar
BD-10
2. Turn the Base Assembly upright and raise the Pad to
line the bolt holes in the Support Bar to the
corresponding holes on the back of the Pad (Fig.2).

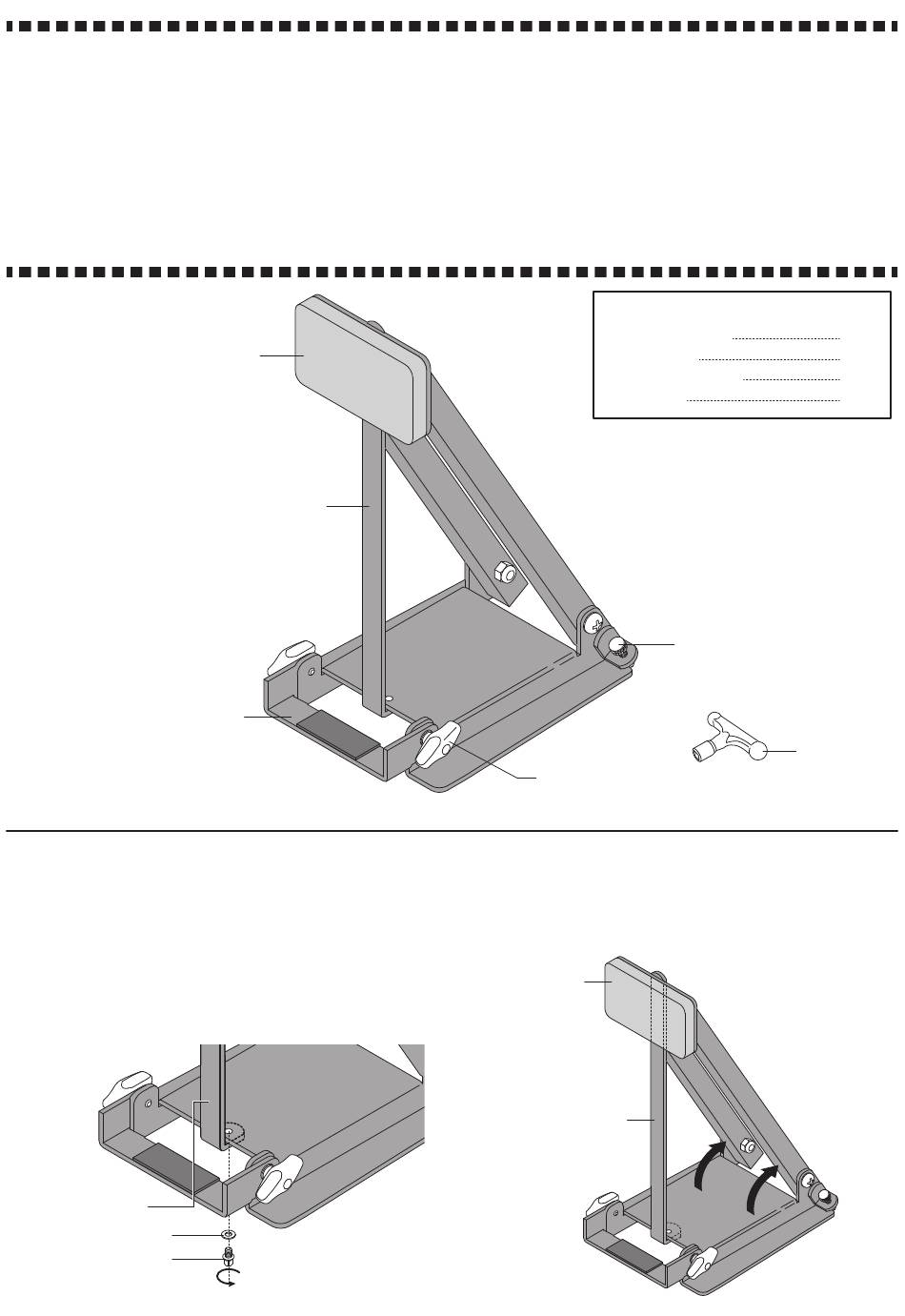

Fig.1
Components
• Base Assy w/Pad
• Support Bar
• Key Bolt w/Washer
• Drum Key
Anchor Screw
Wing Bolt
Pad
Support Bar
(x1)
(x1)
(x3)
(x1)
Drum Key
Fig.2
