Pearl DR 503 Instruction Manual

PEARL DRUM RACK SYSTEM
Congratulations on your purchase of the Pearl Drum Rack System.
To get the maximum performance from your Pearl Drum Rack,
The DR-503/DR-501/DR-501C/DR-501E/DR-501CE feature our exclusive square bar design for 100% slip-proof
performance. The bars are independently height adjustable and height setting are retained with Memory Ring for quick
and repeatable set-ups. The DR-503 features three sections and is ideal for configurations with all hanging toms. The
DR-501 and DR-5001C feature a bridge-style design and are ideal for smaller kits or percussion set-ups. By adding
DR-501E or DR-501CE Extension units, the DR-503, DR-501, or DR-501C can be expanded to accommodate
additional drums, cymbals, etc. The front legs of the DR-503, DR-501, and DR-501C are equipped with a mounting
bracket for convenient attachment of tom arms and cymbal holders.

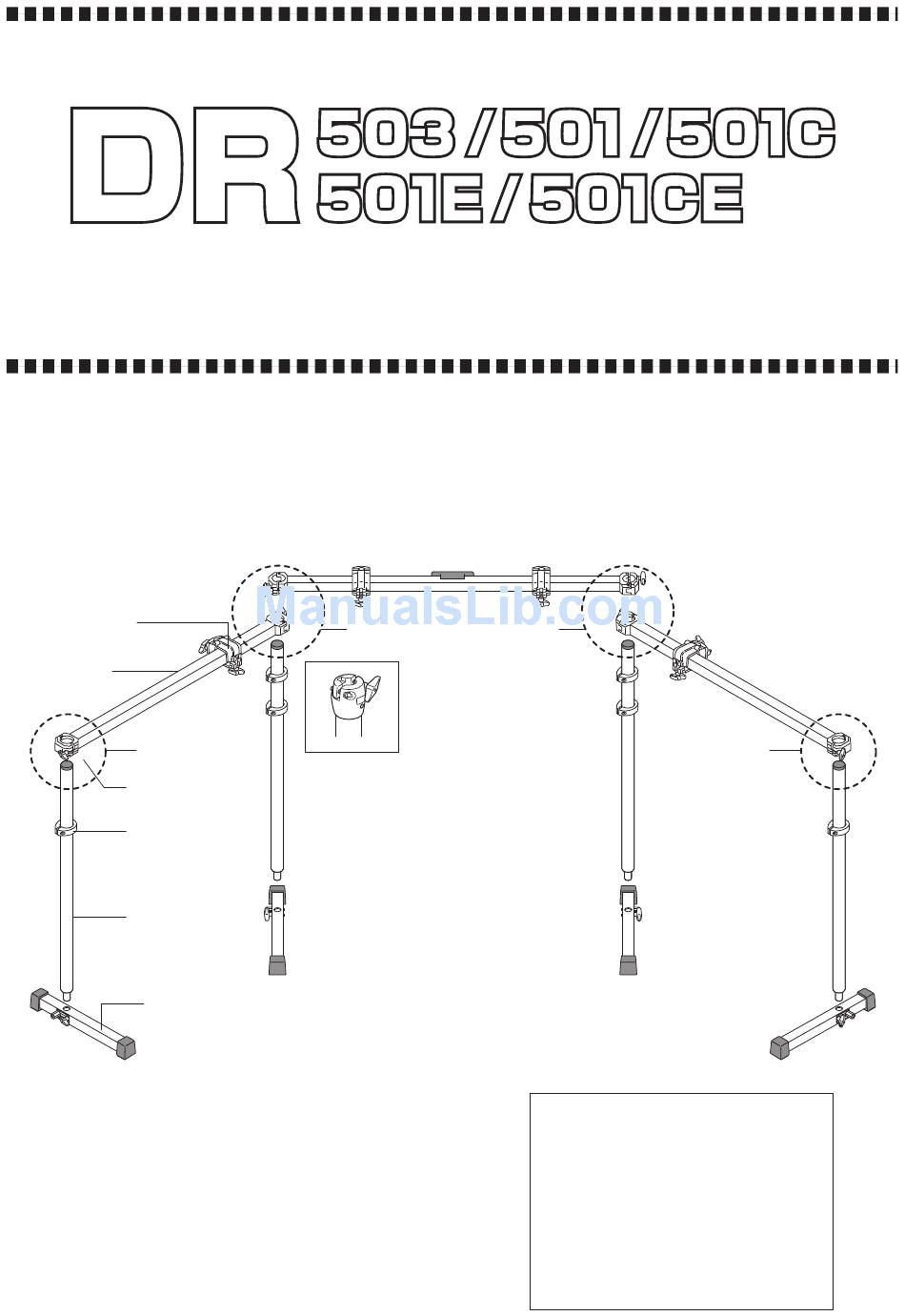

PCX-100
Pipe Clamp
Bar
A
Clamp
Memory Ring
Leg Post
Floor Bar
Instruction Manual
please read this Instruction Manual carefully.
Clip-on Logo
B B
PCL-100
Bracket

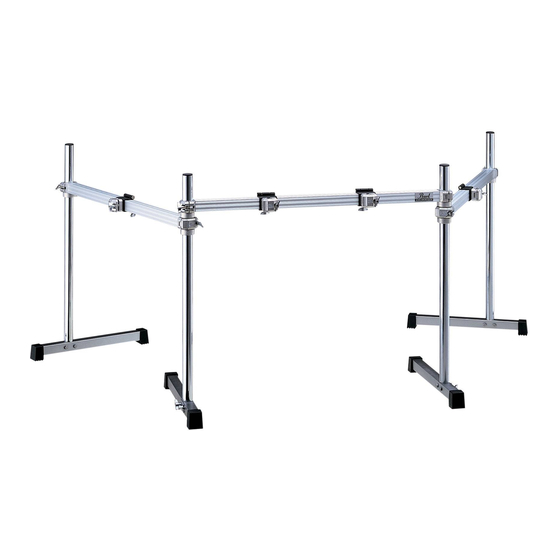

DR-503
Three-section Drum Rack
w/Straight Bar
Components
• Straight Bar / 40x40x915mm (36"Long) (3)
• Leg Post / 38.1x840mm (33"Height)
• PCL-100 Bracket
• Floor Bar / 38x38x500mm (20"Long)
• Memory Ring
• PCX-100 Pipe Clamp
• Clip-on Logo
• Drum Key
• Allen Wrench
A
(4)
(2)
(4)
(6)
(4)
(1)
(1)
(1)
