Summary of Contents for Sleipner DC SE

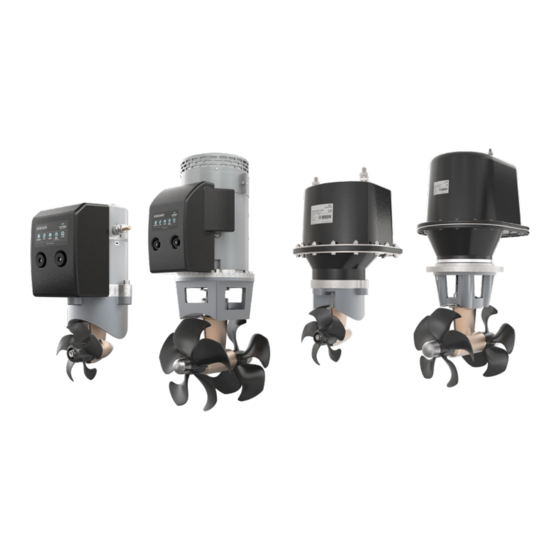

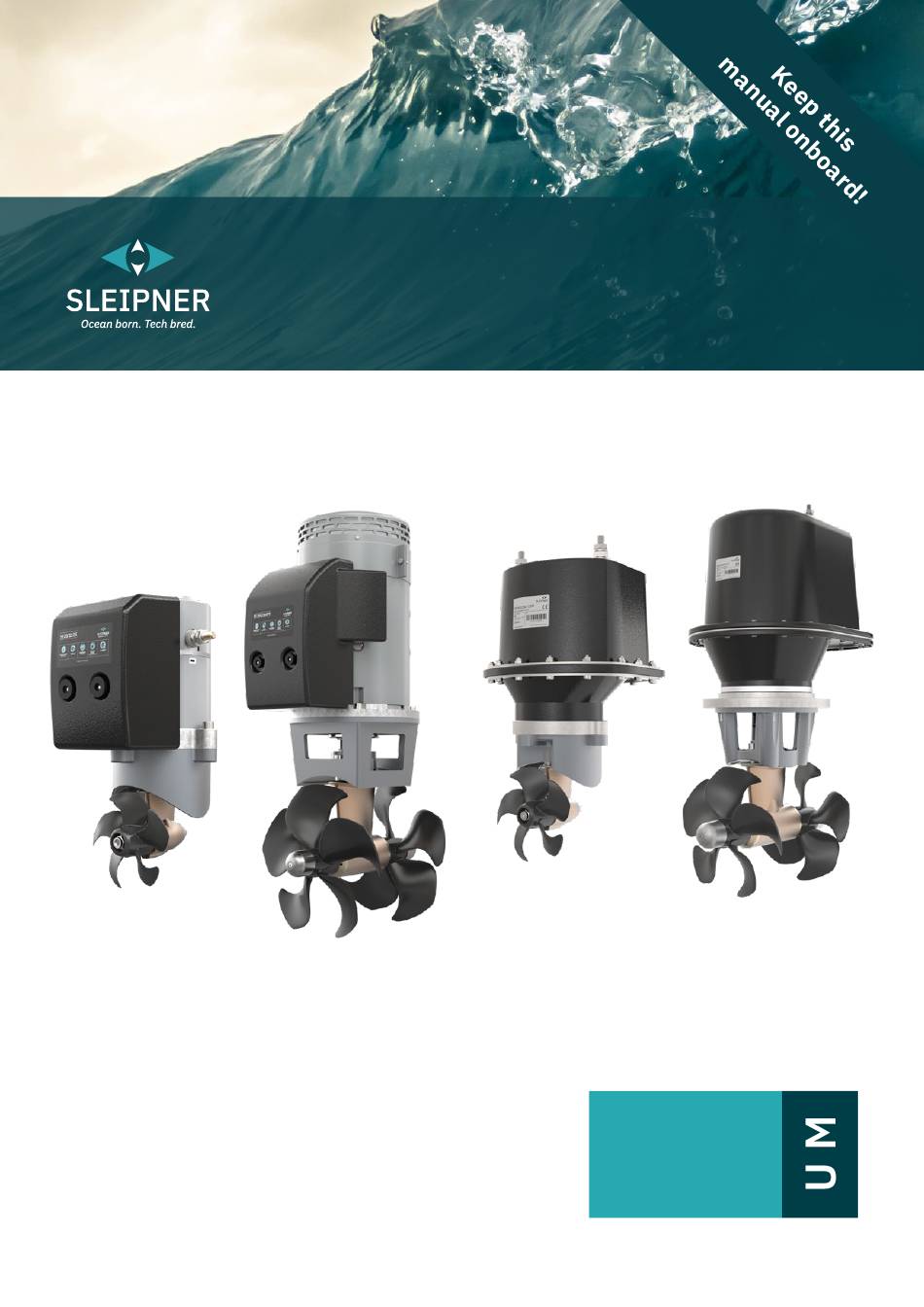

- Page 1 User Manual For Thruster Models DC SE & SE-IP Electric DOCUMENT ID: SLEIPNER AS 5915 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2021 Norway LANGUAGE: www.sleipnergroup.com To download your language go to www.sleipnergroup.com...
-
Page 2: Table Of Contents
SE60/185S2-24IP - SE60 Tunnel thruster, 24v-IP SE60/185S2-24V - SE60 Tunnel thruster, 24v DECLARATION OF CONFORMITY MC_0020 Sleipner Motor AS P.O. Box 519, Arne Svendsensgt. 6-8 N-1612 Fredrikstad, Norway Declare that this product with accompanying standard control systems complies with the... -
Page 3: Important User Considerations And Precautions
Failure to follow the Considerations and precautions can cause serious injury / damage and will render all warranty given by Sleipner Motor AS VOID. Never use thrusters when close to objects/ persons or pets in the water. The thruster will draw objects into the tunnel and the rotating propellers. -
Page 4: Thruster Operation
Turn on the main power switch for the thruster. (NB: Always turn off the main power switch when not on-board.) Turn on the control panel by pushing both “ON” buttons on the Sleipner panel simultaneously. * Turn off the control panel by pushing the “OFF” button Joystick Control To Turn the bow in the desired direction move the joystick in the direction you wish the bow to move. -
Page 5: Control Panel
Control Panel Turn ON thruster Turn OFF thruster *Control panel example Activating the bow thruster Activating the stern thruster *Control panel example *Control panel example Activating both bow and Activating both bow and stern thruster to push the stern thruster to rotate the boat sideways boat on axis *Control panel example... -
Page 6: Maintenance
Maintenance MC_0045 As a part of the seasonal service of your Thruster before every season, always check that: In Water • The area around the thruster inside the boat is clean and dry. Ensure there are no signs of water leaks. •... - Page 7 SE / SEP SE / SEP SE / SEP KEY: 1. Electro motor 2. Directional Solenoids/ power & control cables 3. Coupling (inside motor bracket 4. Motor Bracket 5. Gear Leg 6. Propeller 7. Anode 8. Propeller Drive pin 9. Washer 10.
- Page 8 SE / SEP (IP) SE / SEP (IP) KEY: 1. Electro motor 2. Directional Solenoids/ power & control cables 3. Coupling (inside motor bracket 4. Motor Bracket 5. Gear Leg 6. Propeller SE / SEP (IP) 7. Anode 8. Propeller Drive pin 9.
-
Page 9: Troubleshooting
Basic Troubleshooting MC_0013 Before seeking assistance from the website help desk from your Side-Power dealer/ distributor, please perform these tests. (NB: If you are unable to understand what to check, you must consult a Side Power distributor.) CHECK SOLUTION The motor runs, but there is no thrust Check propellers are fi... -
Page 10: Checklist
Seasonal Checklist MC_0064 SE & SE-IP user manual 5915 2021... -
Page 11: Service And Support
10. This warranty gives you specific legal rights, and you may also have other rights which vary from country to country. Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents SE & SE-IP user manual... - Page 12 © Copyright Sleipner Motor AS, 2021 The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the product specifi...
