H03620-00.C - 2012/02 - 374274014.01
PF Premium
6M-8M-11M-11T-13M
11M TSR-11T TSR-15M TSR-15T TSR
Instructions for installation and use
English
More languages on :
www.zodiac-poolcare.com
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF Premium 11T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

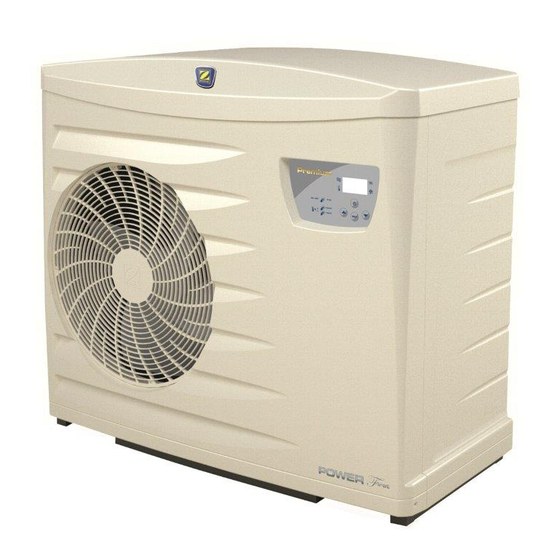

Summary of Contents for Zodiac PF Premium 11T

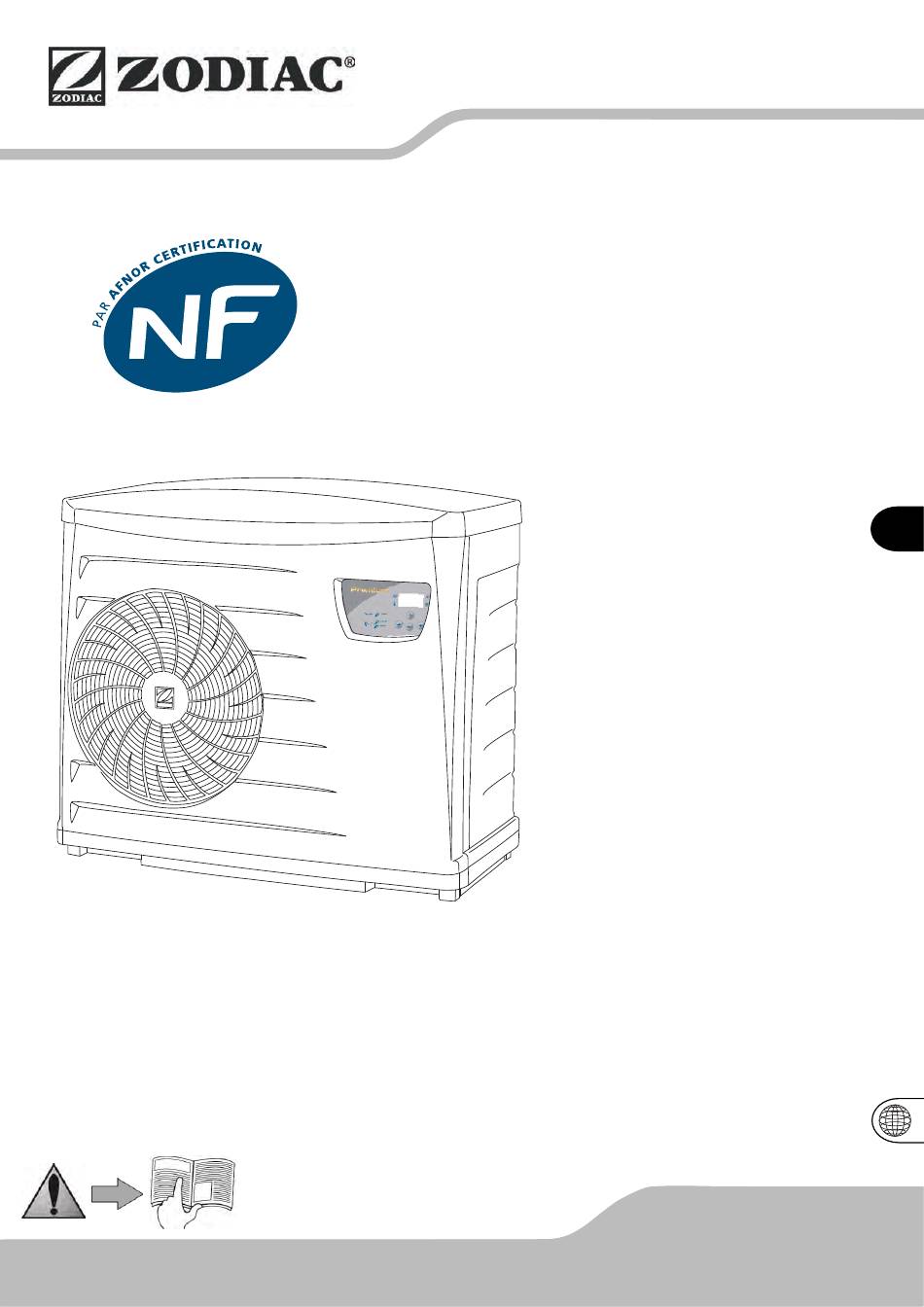

  • Page 1 PF Premium 6M-8M-11M-11T-13M 11M TSR-11T TSR-15M TSR-15T TSR Instructions for installation and use English More languages on : www.zodiac-poolcare.com H03620-00.C - 2012/02 - 374274014.01...
  • Page 2    Read this manual carefully before installing, maintaining, or repairing this device!   The symbol  indicates important information that must be taken into account in order to avoid  risk of personal injury and/or damage to the appliance.   The symbol   indicates useful information.       Warnings     Our  products  may  be  subject  to  change  without  notice  as  part  of  our  continuous  improvement  policy.    Exclusive use: pool water heating (must not be used for any other purpose).   The device must be installed by a qualified technician according to the manufacturer’s instructions  and  in  compliance  with  local  regulations.  The  installer  is  responsible  for  the  correct  installation  of  the ...
  • Page 3: Table Of Contents

    Summary    1. Information before installation ................ 2   1.1 General terms of delivery, storage and transport .................. 2  1.2 Content ................................ 2  1.3 Operating conditions ........................... 3  1.4 Technical specifications .......................... 3  2. Installation  ....................... 3   2.1 Access to the technical compartment ...................... 3  2.2 Selecting an installation site ........................ 3  2.3 Installing the device ............................. 4  2.4 Hydraulic connections  .......................... 4  2.5 Electrical connections .......................... 5  3. Use .......................... 7   3.1 Presentation of the regulation  ........................ 7  3.2 Starting the device ............................ 8  3.3 Checks to perform after start‐up ......................... 8  3.4 Winter storage ............................. 9  4. Maintenance  ...................... 9   4.1 Maintenance instructions .......................... 9  4.2 Additional recommendations ........................ 9  4.3 Available accessories .......................... 10  4.4 Recycling .............................. 10  5. Troubleshooting   .................... 10   5.1 Display of the regulator .......................... 10  5.2 Sovling malfunctions ...
  • Page 4: Operating Conditions

    1.3 Operating conditions    Operating range:    air temperature of between 5 °C and 38 °C for standard models,   air temperature of between ‐8 °C and 38 °C for TSR models,   water temperature of between 10 °C and 32 °C,     Maximum temperature of 32°C to protect the pool liner.     The TSR version also features a de‐icing function by using forced ventilation or reversed cycle.    1.4 Technical specifications    Power input*     Power output*  Nominal current input*  PFP  Voltage  COP* kW  kW  A  6M  230V‐50Hz  1.4  6.8  6.7  4.7  8M  230V‐50Hz  1.7  7.6  7.9  4.5  11M  230V‐50Hz  2.2 ...
  • Page 5: Installing The Device

    2.3 Installing the device     fit the 5 stabilizing blocks (supplied, see §1.2), if they are not already fitted under the device,   place on a stable, solid (concrete slab type), level and plane surface,     ensure that it will not be flooded by condensation water produced by the device during operation (see §2.4)    Fixing holes       The  heat  pump  can  be  fixed  to  the  ground  using  the  brackets  at  the  base  of  the  unit  (attachments  not    included). A diagram for drilling is featured on the back of the packing box.    2.4 Hydraulic connections    Check the direction of the pipework connection (see § “Dimensions” in the appendix).     ...
  • Page 6: Electrical Connections

    Disposing of condensation:  Warning: your device can produce several litres of water per day. It is strongly recommended to guide the  flow to drains.   connect  a  Ø18  interior  pipe  (not  supplied),  to  the  grooved  end‐piece  mounted  on  the  base  of  the  appliance,      outlet: to the back or on the side:      2.5 Electrical connections     2.5.1 Voltage and protection     the  electrical  supply  to  the  heat  pump  must  include  a  protection  and  circuit‐breaker  device  (not  supplied)  complying with the standards and regulations in force in the country, ...
  • Page 7 2.5.4 Connection of options     use cables with a cross‐section: of 2 x 0.75 mm² or larger, of type RO2V or equivalent in countries outside of the  European Community, with an outer diameter of between 8 and 13 mm.    Remove  the  lid  (just  above  the  cable  gland)  and  fit  the  supplied  cable  glands  to  run  the  cables  into  the  device.  The  cables  used  for  the  optional  features  and  the  power  supply  must  be  held  together  using  a   ...
  • Page 8: Use

      3. Use    3.1 Presentation of the regulation    Water temperature  Cold mode   Setpoint temperature  (only on TSR  models)      Symbol  Designation  steady  flashing  water flow  water flow‐rate ok  water flow too weak, high or absent    ambient air temperature  adequate  inadequate    During heating or air  On standby until operating command  operation indicator    conditioning  received  defrost indicator  Defrost in progress  /    On/off button      button to set and confirm parameters     value setting buttons   ...
  • Page 9: Starting The Device

    3.1.2 Locking and releasing the key pad      and   for 3 seconds:   or    Press    3.2 Starting the device     check that no tools or other objects have been left inside the device,   the access door for technical components must be fitted,   set the by‐pass and setting valves (see § 2.4) as follows:  - valve 1 completely open,   - valves 2‐3‐4 & 5 closed.    An incorrect setting of the by‐pass valve may lead to device malfunction       switch on the filter system,   progressively close valve 1 in order to increase the filter pressure to 150 g (0.150 bar) ,   open  valves  2,  3  and  4  completely,  then  half  open  valve  5  (see  §2.4)  (the  air  accumulated  in  the  heat  pump  condenser and in the filter circuit is then bled), ...
  • Page 10: Winter Storage

    3.4 Winter storage    Winter storage is essential due to the risk of the condenser freezing and breaking. This situation is not  covered by the warranty.    To avoid damaging the device with condensation, do not cover it with an air‐tight cover.     switch the digital control panel to "stand‐by" mode by pressing   for 3 seconds, and cut the power supply,    open valve 1,   close valves 2 and 3, and open valves 4 and 5 (if fitted),    ensure that no water is flowing through the heat pump,    drain  the  water  condenser  by  unscrewing  the  two  pool  water  inlet  and  outlet  connections  at  the  back  of  the  heat pump,    in the case of full winter storage conditions for the pool: re‐connect the inlet and outlet connections to avoid  foreign bodies entering into the condenser,   ...
  • Page 11: Available Accessories

    4.2.2 Troubleshooting     all soldering work must be carried out by a someone qualified to do so.   replacement pipes must always be made of copper in compliance with standard NF EN 12735‐1.   leak detection; pressure test:  - never use oxygen or dry air, risk of fire or explosion,   - use dry nitrogen or the mixture of nitrogen and refrigerant indicated on the information plate,   - the test pressure for both the high and low pressure circuits must not exceed 42 bar.   the  high  pressure  circuit  pipes  are  made  of  copper  and  have  a  diameter  equal  to  or  greater  than  1’’5/8.  A  certificate as indicated in §2.1 in compliance with standard NF EN 10204 will be requested from the supplier and  filed in installation technical documentation.   technical data relative to the safety requirements of the various applicable directives must be indicated on the  information plate.   ...
  • Page 12 Display  Designation  Cause  Solution  Reset  Automatic reset  Low pressure circuit  Refrigerant  (for less than 4  pressure defect (if  Contact an approved  circuit low  defects per hour)  the defect remains  technician    pressure defect  after reset)    or press  1. check the pool hydraulic  1. water and air  circuit  mixture passing in  2. increase the flow‐rate  the appliance,  using the by‐pass, check that  Automatic reset  Refrigerant  2. unsatisfactory  the pool filter is not clogged)  (for less than 4  circuit high  water flow,  3. check the flow‐rate  defects per hour)    pressure defect  3. blocked flow  controller   ...
  • Page 13: Faq

    5.2 Solving device malfunctions      Dysfunction  Causes  Verification / solution  The device is not  No display  Check the supply voltage and the fuse F1   operational  The pool temperature is above the  Increase the set‐point temperature  set‐point temperature  A message is displayed on the screen  Check the meaning of message §5.1  Absent or inadequate water flow‐rate  Check the water flow‐rate (by‐pass, filtration)  The device is  Set the filtering system to manual 24‐ hour  Inadequate filtering time  operational, but water  operation for temperature control  temperature fails to  Check that outdoor temperature is within the  Non‐compliant period of use  rise  operating range (see §1.3)  Check the characteristics of the heat pump  The heat pump is under‐dimensioned  according to the pool  The automatic pool water filler is  Check the correct operation of the automatic  blocked in the open position  filler  The heat insulating cover is not used  Fit the heat insulating cover  The evaporator is clogged  Clean the evaporator (see §4.1)  The device must be installed outdoors.  Check that there is no obstacle less than 4  The device is incorrectly installed  metres from where the blower is facing, and ...
  • Page 14: Product Registration

    The heat pump is  Your  heat  pump  will  give  off  water  in  the  form  of  condensation.  This  water  is  the  giving off water: is  humidity contained in the air, which condenses on contact with certain cold components  this normal?  inside the heat pump.   Note: your device can produce several litres of water per day.    6. Product registration    Register your product using our website:   - you will be among the first to be informed of new Zodiac products and special offers,  - You can help us to constantly improve our product quality.    Australia – New Zealand  www.zodiac.com.au  Europe, South Africa and rest of the world  www.zodiac‐poolcare.com           13 ...
  • Page 15   Wiring diagram   PFP 6M‐8M‐11M‐13M        1  H03620‐00.D2.EN – 2013/03...
  • Page 16   PFP 11T                        2  H03620‐00.D2.EN – 2013/03...
  • Page 17   PFP 11M TSR            3  H03620‐00.D2.EN – 2013/03...
  • Page 18   PFP 15M TSR            4  H03620‐00.D2.EN – 2013/03...
  • Page 19   PFP 11T TSR ‐15T TSR                  5  H03620‐00.D2.EN – 2013/03...
  • Page 20   L‐N‐PE  Power supply (230V/1N/50 Hz)  L1‐L2‐L3‐N‐PE  Power supply (400V/3N/50 Hz)  Ground  PE ( )  1‐2  Pump control (max. 8A contact)  3‐4  Electrical heating control (max. 2A contact)  5‐6  Alarm control(max. 2A contact)  7‐8  Remote control  20S  4‐way valve coil  A1  Electronic board for regulation  A2  Electronic board for display  C1  Fan capacitor  C2  Compressor capacitor  C3  Filter  D1  Progressive starter  H  Defrost resistance  HP  High‐pressure switch  LP  Low‐pressure switch  J1  Flow rate switch  M1  Fan motor  M2 ...
  • Page 21   Dimensions and description                                                               Base    Front pannel    cowl    Technical door    Back pannel    Post    Grid    Regulator    Ø1” ½ water pool inlet    Ø1” ½ water pool outlet   ...
  • Page 22 Plaque signalétique – Product name plate Votre revendeur / your retailer Pour plus de renseignements, merci de contacter votre revendeur. For further information, please contact your retailer. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
