LEGRAND 0 489 54 Technical Data Sheet

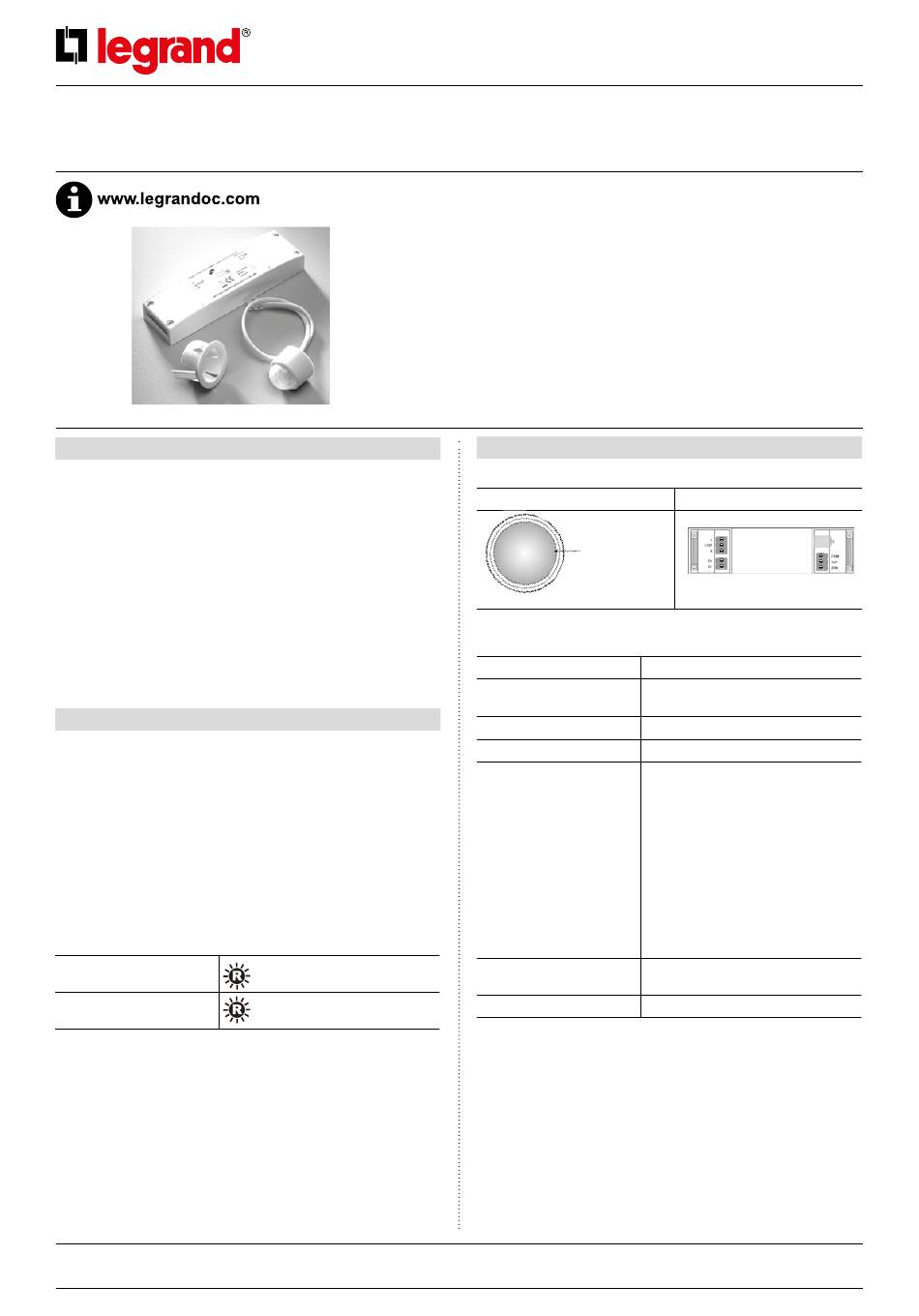

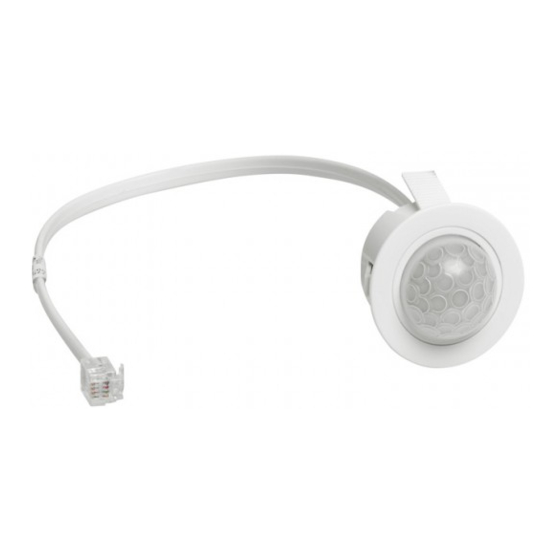

Miniature PIR presence detector - ON/OFF

1. USE

This miniature PIR (passive infrared) presence detector provides
automatic control of lighting loads with optional manual control.
This model can be used for switching control of incandescent,
fluorescent and compact fluorescent loads.
The unit detects movement using a PIR sensor and turns the load on.
When an area is no longer occupied, the load will switch off after an
adjustable timeout period.
These units come complete with accessories allowing flush mounting in
suspended ceilings or surface mounting on ceilings, or side mounting
on a luminaire.
All functionality is fully programmable using an infrared configurator.

2. TECHNICAL CHARACTERISTICS

PIR sensor
Detects movement within the unit's detection range, allowing load
control in response to changes in occupancy.
IR receiver
Receives control and programming commands from the infrared
configurator.
Light level sensor
Measures the overall Lux level in the detection area.
LED status
The LED flashes red to indicate the following:
Walk test LED active
Valid setting received
RJ11 connector
The sensor head has an RJ11 socket for connection to the power supply.
Power supply
This power supply has a 6 A relay. It also has connections for an auxiliary
switch that can be used to turn on the lighting manually.
Technical data sheet: S000105121EN-1
CONTENTS
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
When movement is detected
Updated: 26/11/2018
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Technical characteristics . . . . . . . . . . . . . . . . . 1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
7. Parameter settings . . . . . . . . . . . . . . . . . . . . . . . 3
8. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
9. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
10. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2. TECHNICAL CHARACTERISTICS (CONTINUED)
Sensor head
PIR lens
IR receiver
Light level sensor
Status LED
Dimensions See dimensions section
Weight
Sensor head: 0.02 kg
Power supply: 0.08 kg
Power supply 230 VAC +/-10%
Frequency 50 Hz
Maximum load 6 A resistive and incandescent lighting
3 A fluorescent lighting
2 A compact fluorescent lighting
2 A low-energy lighting
2 A low-voltage lighting (switches
transformer primary)
1 A fans and ventilation equipment
NOTE: For fluorescent lighting, 6 loads
maximum recommended. Total power
factor correction capacitance must not
exceed 40 µF
Power consumption
ON 816 mW, OFF 837 mW
Terminal capacity 1.5 mm²
Cat. No(s): 0 489 54
Page
Power supply
Created: 07/11/2018
1/5
