Reseating the Ink Chip Holder

Applicable Models: AnaJet FP-125 printer series

Issues relating to the ink chip holder will result in one or more LEDs being solidly lit on the LED board

under the printer's cover. Most likely the ink chips have moved off of their contacts and need to be

reseated. It is also possible that one or more of the chips has failed.

This procedure follows many similar steps to damper replacement. Please view the damper replacement

procedure video prior to attempting to access the ink chip holder.

Tools Required: Small flat bladed screw driver and standard Phillips or crosshead screw driver. Optional:

small needle nose pliers (small pliers with long thin jaw for fine work).

Follows these steps:

1. Power down the printer.

2. Remove the two E clips holding the Damper retainer shaft in place. Be careful not to break any

of the plastic components. You may use a small flat bladed screw driver or a small pair of needle

nose pliers to do this.

Technical Notes

Total number of pages: 3

Date: June 15, 2009

damper_replacement.wmv

Page 1 of 3

Table of Contents

Do you have a question about the FP-125 and is the answer not in the manual?

Page 1 Total number of pages: 3 Date: June 15, 2009 Applicable Models: AnaJet FP-125 printer series Issues relating to the ink chip holder will result in one or more LEDs being solidly lit on the LED board under the printer’s cover. Most likely the ink chips have moved off of their contacts and need to be reseated.
Page 2 3. Unscrew the clamp holding the ink tubes in place, and remove the damper retainer shaft. 4. Peel back the first three sections of the tube carrier links, and lift off the damper retainer. 5. Remove dampers 7 and 8 individually. These are the on the far right. Lift strait up and be careful not to damage the thin plastic membrane on right side of each damper.

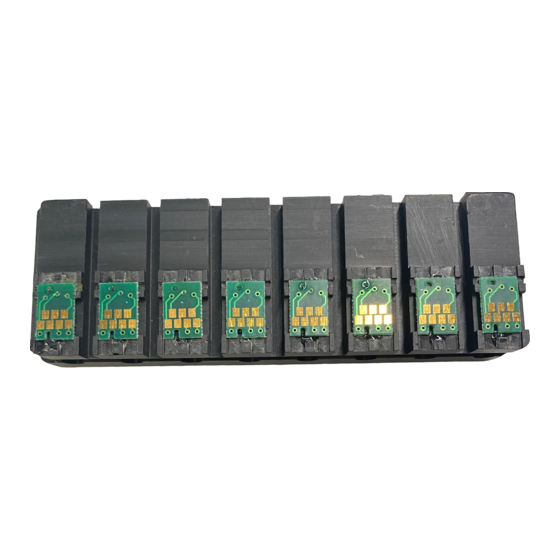

Page 3 7. Use a static discharge strap. Lift off the ink chip holder and inspect it. (Do not touch the ink chips with your finger tips). If dust or ink is on the surface of the chips, clean it off with a dry cleaning applicator.
