- Page 1 Operators Manual & Parts List SWIFT MJ71-190/240 MJ71-190FM/240FM MJ71-340/400/540 MJ71-340T/400T/540T MJ71-400FM MJ71-600T/730T SWIFT...
- Page 2 Major reserves the right to modify the machinery and the technical data contained within the manual without prior notice. Further to this, Major assumes no liability for any damages which may result from the use of the information contained within this manual.
-
Page 3: Table Of Contents
Operating the Machine/Mowing Top Link position (flotation restrictor) Roller and Castor wheels adjustment Maintenance Machine storage PTO Shaft Maintenance Transmission Bolts Roller (if applicable) Replacement of wear parts Clearing out a blockage Wing shafts alignment (if applicable) Troubleshooting Lubrication schedule www.major-equipment.com... - Page 4 Roller End - Parts List MJ71 Scraper Bars MJ71 PTO shafts 50 SQ 5 Stud unbraked axle stub (to suit MJ30-560T-AB12) 50 SQ 5 Stud braked axle stub (to suit MJ30-560T-AB14) LF205H-205 872-1.92 LF205TH-205.874-1.92 MJ40T11-347.805-1 JJ.03499-1.9 (1:1.9 3 way gearbox) TF26A-266.208-1.84 4W www.major-equipment.com...
-
Page 5: Thank You
(see “Product Specifications” section of this booklet) and driven by an adequate drive-line of the tractor PTO. All other use is strictly prohibited. Major will not be held responsible for any loss or damage caused due to a misuse of the machine. -
Page 6: Tractor Requirements
Any exposed, rotating machine component is a potential wrap point. Injuries usually occur when loose clothing or long hair catch on and wrap around rotating parts such as PTO shafts or Drive shafts on the machine. Ensure all guarding is present. www.major-equipment.com... -
Page 7: Operating Safely
Operating Safely This MAJOR machine is designed to operate at a PTO rate which is stated in the Product Specifications part of this booklet. Ensure tractor PTO output is set at a correct RPM rate. This MAJOR machine must only be used for purposes outlined in the Intended Use section of this booklet. -
Page 8: Workstation
• Trim and chamfer the two cut ends of the PTO and clean off all swarf and shavings. • Grease the two profiles and join the two halves of the PTO together. • Mount the PTO shaft and check that its length is correct as before. www.major-equipment.com... -
Page 9: Driving Safely On Public Roads
Maximum transport speed of the implement is limited to 25-30km/h depending on the model of the machine (observe safety labels on the machine). Trailed Machines only (if applicable) The shaft must not reach the end of the tube or project from this. Ensure the PTO does not bottom when turning www.major-equipment.com... -
Page 10: Inspections Before Use
Always ensure the pins lock the PTO shaft yoke ends onto the spline shafts on both the tractor and the implement. An unlocked shaft could slip out of position, causing notable mechanical damage and serious injury to both operator and bystanders. www.major-equipment.com... -
Page 11: Product Identification
Machine Serial Numbers If you need to contact MAJOR or your MAJOR dealer for information on servicing or spare parts, always provide the product model and serial numbers. Model and Serial number can be found on the Serial Plate located on the machine. -
Page 12: Eec Certificate Of Conformity For Machines
EN ISO 13857 - Safety of machinery: Safety distances to prevent hazard zones being reached by upper and lower limbs. I hereby certify on behalf of Major Equipment Int. Ltd., that this machine when properly installed and operated correctly, complies with all the essential Health & Safety requirements of all legislation referred to above. -
Page 13: Machine Safety Labels
- keep clear of PTO drives. ATTENTION! High oil Do not engage drive pressure while in transport hazard position Do not engage drive while in transport position Check tightness of the transmission bolts Grease points Maximum PTO input Moving parts www.major-equipment.com... -
Page 14: Key To Main Parts

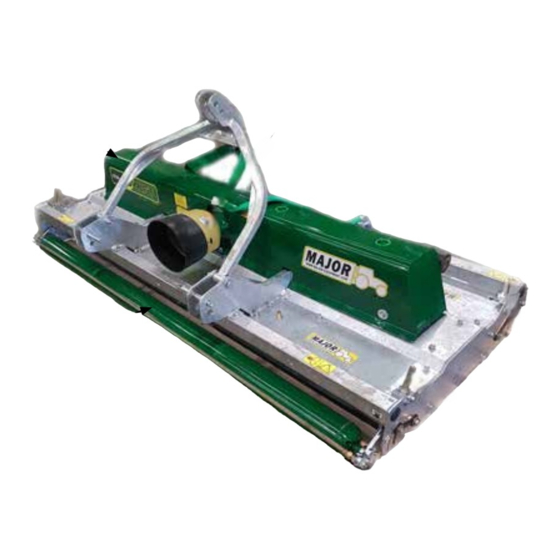

Key to Main Parts Body Drivetrain cover A-Frame Gearbox PTO cover PTO shaft Rear roller Strap Roller height adjuster rod Roller height indicator Top Link Blade Front roller Scraper bar Rubber deflector Lighting kit Hydraulic Ram Wing www.major-equipment.com... -
Page 15: Blade Rotation
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Stock Code: Rev. Drawing No. -
Page 16: Blade System
8 Blade pivot bush 3 Gearbox split pin 9 Blade 4 Blade back 5 Blade back bolt 6 Blade back spacer Drive-line gearboxes Primary gearbox Rotor gearbox Oil filler Oil filler plug plug Oil level Oil level plug plug www.major-equipment.com... -
Page 17: Operating The Machine
3. Connect the machine to the tractor. Ensure no one is standing between the tractor and the Machine. 4. Check the PTO shaft for length as described previously. Connect the PTO shaft. Ensure PTO check chains are anchored to prevent PTO guarding from rotating. 5. Connect the hydraulic hoses to the appropriate connections (selected models only). www.major-equipment.com... -
Page 18: Transport Position
Doing this removes pressure from the hydraulic system. Failure to use the safety equipment can cause mechanical as well as physical damage. Transport Speed of Trailed models should not exceed 25 km/h. Axle Locks Drawbar Locks Top Link Position Transport Position Mowing Position www.major-equipment.com... -
Page 19: Operating The Machine/Mowing
Adjust the top link so the pin (1) is located in the middle of the slot (2). Lock the position by tightening the lock nut (3). Top links limit the wing lift and prevent damage to wing PTO shafts and gearboxes. Mowing Position Mowing Position Mowing Position www.major-equipment.com... -
Page 20: Roller And Castor Wheels Adjustment
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJO OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipme PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Route: Quantity Date Stock Code: Rev. -
Page 21: Maintenance
Maintenance 061120 In order to keep your Major machine in a good working order it is necessary to conduct maintenance on a regular basis. Only competent and skilled persons who have fully read and understood this operator’s manual are allowed to carry out maintenance on this machine. -
Page 22: Transmission Bolts
Blades, blade backs, blade bushing, blade bolts and nuts must be checked on a regular basis for wear and defection. MAJOR recommends to visually check the blade assemblies every 40 hours of operation. This interval may change depending on the operational conditions. -
Page 23: Troubleshooting
Check PTO rate & adjust as necessary Noisy machine Rotors bent / broken Replace bent or missing blades Check PTO shafts are aligned correctly Bent PTO shaft Check output shaft on gearboxs are not bent Check driveline between gearboxes is aligned. www.major-equipment.com... - Page 24 Replace seal or use a sealant on outside diameter Gearbox leaking Oil seal not sealing in the housing of seal Oil level too high Drain oil to proper level Hole in gearbox Replace the gearbox Gasket damaged Replace gasket Bolts loose Tighten bolts www.major-equipment.com...
-
Page 25: Lubrication Schedule
Roller 4/12 ● Roller height adjuster 2 x 2 x 6 ● Castor wheel pivot 0/2/4/6 ● Castor wheel axle 0/2/4/6 ● Drawbar Pivot eye ● Axle Pivot ● Drawbar hydraulic ram ● Axle hydraulic ram ● Parking Jack www.major-equipment.com... -
Page 26: Mj71 Spare Parts - Mj71-190/240/Fm
101120 MJ71 Spare Parts - MJ71-190/240/FM MJ71-190 - General Assembly www.major-equipment.com... -
Page 27: Mj71-190 - Underbody Assembly
MJ71-190 - Underbody Assembly www.major-equipment.com... -
Page 28: Mj71-190 - Drivetrain And Roller Height Asjuster Assembly
MJ71-190 - Drivetrain and Roller Height Asjuster Assembly www.major-equipment.com... - Page 29 5/8F 5/8" FINE NYLOC NUT 58x2FBZP 5/8"x2" FINE BOLT CAT 2 PIN DIA 25.4x110mm 8400STR 8400RM MKII STRAP (2130mm) GREASE NIPPLE M8x1.25 STR AN099/10 LINCH PIN DIA 9.5 CP176-181MG1 45mm INSERT CW39174 DISC SPRING (YELLOW) D281421 DISC SPRING 28x14.2x1.0 www.major-equipment.com...
-
Page 30: Mj71-240 - General Assembly
MJ71-240 - General Assembly www.major-equipment.com... -
Page 31: Mj71-240 - Underbody Assembly
MJ71-240 - Underbody Assembly www.major-equipment.com... -
Page 32: Mj71-240 - Drivetrain And Roller Height Asjuster Assembly
MJ71-240 - Drivetrain and Roller Height Asjuster Assembly www.major-equipment.com... - Page 33 5/8F 5/8" FINE NYLOC NUT 58x2FBZP 5/8"x2" FINE BOLT CAT 2 PIN DIA 25.4x110mm 8400STR 8400RM MKII STRAP (2130mm) GREASE NIPPLE M8x1.25 STR AN099/10 LINCH PIN DIA 9.5 CP176-181MG1 45mm INSERT CW39174 DISC SPRING 39x17x4 D281421 DISC SPRING 28x14.2x1.0 www.major-equipment.com...
-
Page 34: Mj71-190Fm - General Assembly
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Rev. Drawing No. Route:... - Page 35 CP176-181MG1 45mm INSERT FWM12 M12 FLAT WASHER FWM20 M20 FLAT WASHER M12 NYLOC NUT M12x30SZP M12x30 SET BOLT M12x35BZP M12x35 BOLT M20 NYLOC NUT M20x120BZP M20x120 BOLT M6 NYLOC NUT M6x40SZP M6x40 SET BOLT * - further breakdown provided www.major-equipment.com...
-
Page 36: Mj71-240Fm - General Assembly
MJ71-240FM - General Assembly www.major-equipment.com... -
Page 37: Mj71 - Wheel Assembly (Sw2-Cw-01)
M12x35 SOCKET BUTTON HEAD 10.9 RM2-L020 CASTOR TOP M16x40SZP M16x40 SET BOLT 0051300000VR NYLON WASHER 56x31x4 M8 NYLOC NUT 15x6-00-6 WHEEL 364x151mmx 6 PLY (TUBE) M8x40BZP M8x40 BOLT 3026DU 30x34x26 FLANGE BUSH S8874-A M8xDIA 35 U-BOLT (1 3/8") GREASE NIPPLE M8x1.25 STR www.major-equipment.com... -
Page 38: Mj71 Spare Parts - Mj71-540/400/340
IFT 410 WING REF DRWG MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. IFT 400 WING REF DRWG SW2-400-WGGA Quantity Date Stock Code: Rev. -
Page 39: Mj71-340/400/540 Body
MJ71-340/400/540 Body www.major-equipment.com... - Page 40 www.major-equipment.com...
- Page 41 www.major-equipment.com...
-
Page 42: Mj71-340/400/540 Body- Parts List
111044 DIA 26-30mm INSERT NL8SP M8 SP NORDLOCK 12HEX109 1/2F HEX 10.9 S112 CAT 2 PIN DIA 28.5x159mm 12x112FSKS 1/2"x1 1/2" FINE SKT HEAD 12.9 * - further details provided 190.000.545 PTO GUARD (EXT OVAL) 1" FINE NYLOC NUT www.major-equipment.com... -
Page 43: Mj71-540 Wing
MJ71-540 Wing Right Hand wing shown www.major-equipment.com... - Page 44 Right Hand wing shown www.major-equipment.com...
-
Page 45: Mj71-540 Wing - Parts List
SW2-550-CV15 GUARD BASE MOUNT M8x20SKBH M8x20 SKT BUTTON HEAD 10.9 DRV-RC-SWT2-410 SW2-410 DRIVE M8x30SKBH M8x30 SKT BUTTON HEAD 10.9 MJ30-350-WA11 RAM SPACER M8x40BZP M8x40 BOLT RM-RSN3 SHAFT COLLAR DIA 35 NL12SP M12 SP NORDLOCK * - further details provided www.major-equipment.com... -
Page 46: Mj71-400/340 Wing
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Stock Code: Rev. Drawing No. - Page 47 THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Rev. Drawing No. Route:...
-
Page 48: Mj71-400/340 Wing - Parts List
M20 HEX ADJUSTER M8x30SKBH M8x30 SKT BTN HD 10.9 DRV-RC-SWT2-410 SW2-410 DRIVE M8x40BZP M8x40 BOLT MJ30-350-WA11 RAM SPACER NL12SP M12 SP NORDLOCK RM-RSN3 SHAFT COLLAR DIA 35 S1215 ROLL PIN DIA 6x40 12HEX109 1/2F HEX 10.9 * - further details provided www.major-equipment.com... -
Page 49: Mj71-340 Wing
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Rev. Drawing No. Route:... - Page 50 THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Route: Quantity Date Stock Code: Rev.
-
Page 51: Mj71-340 Wing - Parts List
1"x4" FINE BOLT 5/8F 5/8" FINE NYLOC NUT 58x2FBZP 5/8"x2" FINE BOLT GREASE NIPPLE M8x1.25 STR GREASE NIPPLE M8x90x1.25P Left Hand wing MJ71-340 www.major-equipment.com IF IN DOUBT ASK THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY OF MAJOR EQUIPMENT INTL. LTD. -
Page 52: Mj71-400Fm Overview
SWIFT 400 FRONT MOUNT WING SW2-400FM-WGGAH SWIFT 400 FRONT MOUNT WING CY-350-WR CYCLONE WING RAM 00x1.0x1.92 = 1920rpm S5D02000P60001 CLAMP COLLAR PTO 373 m/min 8-6-7-00161 3/8" BREATHER PLUG (68085600) 4348 ft/min GREASE NIPPLE M8x1.25 STR S482-A CAT 1-2 TOP LINK www.major-equipment.com... -
Page 53: Mj71-400Fm Body Assembly
DIA 5/8"x1 1/8"x1/2" COLLAR SW2-400-FM06 FRONT MOUNT LINKAGE BRACE 111044 DIA 26-30mm INSERT FWM12 M12 FLAT WASHER M12 NYLOC NUT M12x30SKBH M12x30 SOCKET BUTTON HEAD 10.9 M12x30SZP M12x30 SET BOLT M12x35BZP M12x35 BOLT M6 NYLOC NUT M6x40SZP M6x40 SET BOLT www.major-equipment.com... -
Page 54: Mj71-400Fm Wing Assembly
DIA 5/8"x1 1/8"x1/2" COLLAR 111044 DIA 26-30mm INSERT FWM12 M12 FLAT WASHER FWM8 M8 FLAT WASHER M12 NYLOC NUT M12x30SZP M12x30 SET BOLT M12x35BZP M12x35 BOLT M6 NYLOC NUT M6x40SZP M6x40 SET BOLT M8 NYLOC NUT S8874-A M8xDIA 35 U-BOLT (1 3/8") www.major-equipment.com... -
Page 55: Mj71 Spare Parts - Mj71-730T/600T
RUBBER HINGE WING PTO S5D02000P60001-A RUBBER HINGE WING PTO SW2-600-BDGA 600 SWIFT BODY SW2-730-WGGA SWIFT 730 WING (RH) SW2-730-WGGAH SWIFT 730 WING (LH) CY-720-WR CYCLONE WING RAM 8-6-7-00161 3/8" BREATHER PLUG (68085600) GREASE NIPPLE M8x1.25 STR S482-A CAT 1-2 TOP LINK www.major-equipment.com... -
Page 56: Mj71-600T/730T Body
MJ71-600T/730T Body www.major-equipment.com... - Page 57 www.major-equipment.com...
-
Page 58: Mj71-600T/730T Body- Parts List
MJ70-550 WING ROLLER 8400RM-RPV01 ROLLER PIVOT 725-BLD8-FL5 DIA 725 BLADE Anti_Clk 8400RM-RPV10 ROLLER PIVOT 725-BLD8-FR5 DIA 725 BLADE Clk MJ30-350-LK30 PIVOT PIN 8400RM-HG65 M20 THREADED ADJUSTER MJ30-350-RHB03 HINGE MOUNT MJ70-320-HYD05 HYDRAULIC BLOCK MJ30-RMH-27 PIVOT PIN SW2-540-BSCRPR-01 540 WING SCRAPER BAR www.major-equipment.com... - Page 59 PLASTIC GUARD COVER 1" FINE NYLOC NUT 1x512FBZP 1"x5 1/2" FINE BOLT 5/8F 5/8" FINE NYLOC NUT 58x2FBZP 5/8"x2" FINE BOLT GREASE NIPPLE M8x1.25 STR GREASE NIPPLE M8x90x1.25P CW39174 DISC SPRING 39x17x4 (YELLOW) DH-10404 DOCUMENT HOLDER 350x85 DIA 1" FLAT WASHER www.major-equipment.com...
-
Page 60: Mj71-730T Wing
MJ71-730T Wing Right Hand wing shown www.major-equipment.com... - Page 61 Right Hand wing shown www.major-equipment.com...
-
Page 62: Mj71-730T Wing - Parts List
NL12SP M12 SP NORDLOCK MJ30-350-WA11 RAM SPACER OB253230 PLAIN OILITE BEARING BUSH MJ30-RMH-15 SLIDING CUBE S1215 ROLL PIN DIA 6x40 RM-RSN3 SHAFT COLLAR DIA 35 111047 DIA 40 (1-3mm) INSERT * - further details provided 111223 SQ 44-48mm INSERT www.major-equipment.com... -
Page 63: Mj71-600T Wing
MJ71-600T Wing www.major-equipment.com... - Page 64 www.major-equipment.com...
-
Page 65: Mj71-600T Wing - Parts List
8400RM-HG77 M20 HEX ADJUSTER NL12SP M12 SP NORDLOCK MJ30-350-WA11 RAM SPACER OB253230 PLAIN OILITE BEARING BUSH MJ30-RMH-15 SLIDING CUBE S1215 ROLL PIN DIA 6x40 RM-RSN3 SHAFT COLLAR DIA 35 111047 DIA 40 (1-3mm) INSERT * - further details provided www.major-equipment.com... -
Page 66: Mj71 Blades
2 off MJ71-240 2 off MJ71-240 2 off MJ71-340 3 off MJ71-340 3 off MJ71-400 3 off MJ71-400 4 off MJ71-540 4 off MJ71-540 5 off MJ71-600 optional 4 off MJ71-600 optional 5 off MJ71-730 optional 6 off MJ71-730 optional www.major-equipment.com... - Page 67 BLADE BACK (300 CTR 25 deg) BLD-25025-C BLADE 250xDia 25 (Clk) ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Stock Code: Rev.
- Page 68 M10 NYLOC NUT M10 NYLOC NUT 10 M10x30SKBH M10x30 SOCKET BUTTON HEAD 10.9 M10x30SKBH M10x30 SOCKET BUTTON HEAD 10.9 11 M16 M16 NYLOC NUT M16 NYLOC NUT MJ71-600 5 off MJ71-600 4 off MJ71-730 5 off MJ71-730 6 off www.major-equipment.com...
-
Page 69: Mj71-600T/730T Trailed Kit Assembly
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Route: Quantity Date Stock Code: Rev. - Page 70 M8x20mm SOC HEAD 12.9 23 8T19-65 BUFFER SPACER 51 NL16SP M16 SP NORDLOCK 24 1F 1" FINE NYLOC NUT 52 PT48 DRAWBAR EYE DIA 50 25 1x5FBZP 1"x5" FINE BOLT 53 S15501 CAT 0 PIN DIA 16x97mm 26 3006512 DIA 685x305mm www.major-equipment.com...
-
Page 71: Mj71-340T/400T/540T Trailed Kit Assembly
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY MAJO OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipm PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Stock Code: Rev. Drawing No. - Page 72 TOE EYE BUSH 48 M8 M8 NYLOC NUT 22 8T19-65 BUFFER SPACER 49 M8x20SKS129 M8x20mm SOC HEAD 12.9 23 1F 1" FINE NYLOC NUT 50 S15501 CAT 0 PIN DIA 16x97mm 24 1x5FBZP 1"x5" FINE BOLT 25 3006512 DIA 685x305mm www.major-equipment.com...
-
Page 73: Clevis Hitch (Mj30-Trailed-Rce04)
THE INFORMATION CONTAINED IN THIS DRAWING IS THE PROPERTY WEIGHT = 38.1 kg MAJOR OF MAJOR EQUIPMENT INTL. LTD. Vendor: ANY REPRODUCTION IN PART OR A WHOLE WITHOUT THE WRITTEN www.major-equipment.com PERMISSION OF MAJOR EQUIPMENT INTL. LTD. IS PROHIBITED. Quantity Date Stock Code: Rev. Drawing No. Scale... -
Page 74: Mj71 Hydraulics
1/2"-1/4" M/M CONNECTOR EMM14 1/4" M/M CONNECTOR EMM3814 3/8-1/4" M/M CONNECTOR EMMMT14 1/4" M/M/M CONNECTOR QRM12 1/2" QUICK RELEASE MALE SW2-HOSE-A 1/4"x 1800mm Str to Str SW2-HOSE-B 1/4"x 900mm Str to Block 90 SW2-HOSE-C 1/4"x 1140mm Str to Block 90 www.major-equipment.com... - Page 75 1/4" DOWTY WASHER SW2T-HOSE-F 1/4"x1050mm Str to Block 90 EDOW38 3/8" DOWTY WASHER SW2T-HOSE-G 1/4"x4600mm Str to Str EMF1438 1/4" MALE 3/8" FEMALE CONNECTOR 2 SW2T-HOSE-H 1/4"x1240mm Str to Block 90 EMM12-14 1/2"-1/4" M/M CONNECTOR SW2T-HOSE-K 1/4"x1480mm Str to Block 90 www.major-equipment.com...
- Page 76 1/4"x1140mm Str to Block 90 EDOW14 1/4" DOWTY WASHER SW2T-HOSE-E 1/4"x635mm Str to Block 90 EDOW38 3/8" DOWTY WASHER SW2T-HOSE-F 1/4"x1050mm Str to Block 90 EMF1438 1/4" MALE 3/8" FEMALE CONNECTOR 2 SW2T-HOSE-G 1/4"x4600mm Str to Str EMM12-14 1/2"-1/4" M/M CONNECTOR www.major-equipment.com...
- Page 77 SW2T-HOSE-B 1/4"x1550mm Str to Str EDOW12 1/2" DOWTY WASHER SW2T-HOSE-C 1/4"x900mm Str to Block 90 EDOW14 1/4" DOWTY WASHER SW2T-HOSE-D 1/4"x1140mm Str to Block 90 EDOW38 3/8" DOWTY WASHER SW2T-HOSE-E 1/4"x635mm Str to Block 90 EMM12-14 1/2"-1/4" M/M CONNECTOR www.major-equipment.com...
- Page 78 Hydraulic Ram spares Item Part No. Description MJ70-TARAM-SK SEAL KIT FOR MJ70-TARAM RAM CY-720-WR-SK SEAL KIT FOR CY-720-W RAM CY-420-WR-SK SEAL KIT FOR CY-420-W RAM www.major-equipment.com...
-
Page 79: Mj71 Rollers
M8x12SK M8x12mm SOCKET HEAD 12.9 RM-04NUT NUT-WASHER WELDMENT RM-04REH ROLLER END HOUSING RM-04REP ROLLER END PLATE RM-04RES ROLLER END SHAFT RM-RSN3 SHAFT COLLAR DIA 35 S1500 SPLIT PIN 1/8"x1 1/2" S851 GREASE NIPPLE M8x1.25 STR SWM12 M12 SPRING WASHER www.major-equipment.com... -
Page 80: Mj71 Scraper Bars
2 per MJ71-540 (body) SW2-400-BSCRPR-05 SCRAPER BAR 2 per MJ71-340 (wing) 4 per MJ71-400 (wing) SW2-540-BSCRPR-01 SCRAPER BAR 4 per MJ71-540 (wing) 6 per MJ71-600 (body + wing) 2 per MJ71-730 (body) SW2-730-WSCRPR-01 SCRAPER BAR 4 per MJ71-730 (wing) www.major-equipment.com... -
Page 81: Mj71 Pto Shafts
SB/OR M10x60 8.8 (2920Nm) 605911 Trailed Walterscheid 2480 (Wide angle) MJ71-340T/400T/540T SB/OR M10x60 8.8 (2920Nm) 605912 Trailed Walterscheid 2580 (Wide angle) MJ71-600T/730T SB/OR M10x60 8.8 (2920Nm) 4 DS8R136CEWS7001X Trailed Bondioli (Wide angle) MJ71- Auto reset FSC (No OR) (2500Nm) www.major-equipment.com... -
Page 82: Sq 5 Stud Unbraked Axle Stub (To Suit Mj30-560T-Ab12)
260221 50 SQ 5 Stud unbraked axle stub (to suit MJ30-560T-AB12) Wheel kit hub Item Part No Description 30206 Bearing 30206 30209 Bearing 30209 45x85 Oil seal 5510621 Nilos 30206 5510851 Nilos 30209 57527B1 Crown nut 58204 Spring pin 56106203 61L5JA001 Hub 57116B1 Stud... -
Page 83: Lf205H-205 872-1.92
10 LF135/9 8.0.1.00871 Bearing 6208 26 T4A/5 0.248.7500.00 Shim Kit (60.3x71.7) 11 LF135/1 8.2.2.00515 Castle Nut 27 8.5.2.00131 8.5.2.00131 Snap Ring (72x75x2.5) 12 LF135/2 8.3.2.00409 Bolt Washer 25x44x4 13 LF135/19 8.4.1.00993 Parallel Key B 10x8x30 14 M10x20SZP 8.1.1.00054 Bolts M10x20 www.major-equipment.com... -
Page 84: Lf205Th-205.874-1.92
12 8.3.2.00409 8.3.2.00409 Bolt Washer (LF135/2) 27 8.5.2.00131 LF205/27 Circlip (LF135/27) 13 8.4.1.00993 8.4.1.00993 Parallel Key (LF135/19) 0.113.7500.00 14 8.1.1.00054 8.1.1.00054 Bolts M10x20 28 0.113.7500.00 Shim (LF135/16) 15 8.5.2.00030 8.5.2.00030 Snap Ring (LF135/6) 16 8.5.2.00955 8.5.2.00955 Snap Ring (LF135/3) www.major-equipment.com... -
Page 85: Mj40T11-347.805-1
MJ40T11-347.805-1 www.major-equipment.com... -
Page 86: Jj.03499-1.9 (1:1.9 3 Way Gearbox)
0.248.7500 adjusting washer (60.3x71.7) 0.285.7500 adjusting washer(40.3x61.7) tapered roller bearing 33100 (45x80x26) 0.175.7500 adjusting washer 45.2x54.8 8.5.1.02368 Circlip Φ45x2.5 8.7.1.00999 double-lip seal 45x80x10 GB-03512-7100 Protective washer GB-03512-2000 Input shaft GB-03512-6001 Bevel gear 9510.204.125 1/2 GAS oil plug+copper washer www.major-equipment.com... -
Page 87: Tf26A-266.208-1.84 4W
DUST LIP OIL SEAL 45X85X10 16 1.135.7100.00 PROTECTIVE WASHER 36 9440.316.300 COPPER WASHER 13,4X19X1,5 (1/4G) 17 8.0.1.00345 BALL BEARING 6209 37 9510.051.501 MAGNETIC PLUG 1/4 GAS DIN908 18 8.0.9.00024 TAPERED ROLLER BEARING 30208 19 8.0.9.00127 TAPERED ROLLER BEARING 32207 www.major-equipment.com... - Page 88 To register your machine for warranty, please go to the SALES & SUPPORT section of our website www.major-equipment.com and enter your details.
- Page 89 Major Equipment Intl Ltd Ballyhaunis, Co Mayo Ireland Tel: +353 (0) 9496 30572 United Kingdom Major Equipment Ltd Major Ind. Estate, Heysham, Lancs, LA3 3JJ, UK Tel: +44 (0) 1524 850501 Netherlands & Germany Major Equipment Intl Ltd Postbus 29, NL-7700 AA...
