- Page 1 THE HEATLIE BARBECUE SERIES 1150, 850 & 700 Instructions and General Information...
- Page 2 No. 2084-88 AGA Certificate No. 4883 Barbeque Models: 700, 850 & 1150 WARRANTY REGISTRATION The warranty card is located in the pack with the Barbecue instructions. Please complete and return in the pre-paid envelope supplied. The serial number can be found on the label located on the back panel of your Heatlie Barbecue.
- Page 3 HEATLIE BARBECUES CONTENTS Positioning Your Heatlie Barbecue in Installation: Unpacking The Box an Outdoor Area Cabinet Preparation IGE600: IGE850: Installation: Optional Bench Preparation Bench Preparation Roasting Hood IGE Installation IGE Installation (IGE600 & IGE850) Using the Barbecue Connecting to Plate: Cleaning &...

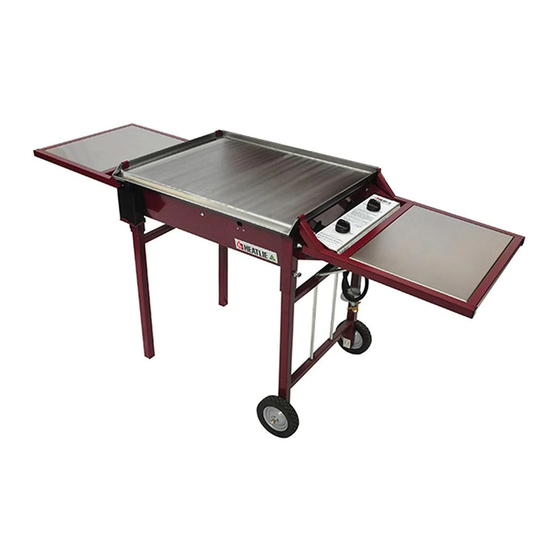

- Page 4 HEATLIE BARBECUES 1150 A-0020-MAN Heatlie BBQ Instruction Manual V6 Updated Dec 2018...
- Page 5 HEATLIE BARBECUES A-0020-MAN Heatlie BBQ Instruction Manual V6 Updated Dec 2018...
- Page 6 HEATLIE BARBECUES A-0020-MAN Heatlie BBQ Instruction Manual V6 Updated Dec 2018...
-
Page 7: Unpacking The Box
HEATLIE BARBECUES UNPACKING Remove all items from the box and check against the list below to ensure that all components are included. THE BOX Box Contents Before installation, please check that the following components have been supplied: 1x Heatlie Barbecue... - Page 8 This Barbecue is only to be used in an above ground, open air situation with natural ventilation. YOUR HEATLIE Heatlie Barbecues are not for use indoors. Please refer to AS5601 for BARBECUE IN specific installation and ventilation regulations. If you are using the Barbecue within a structure, please ensure that you...
-
Page 9: Assembly Procedure
HEATLIE BARBECUES ASSEMBLY Heatlie barbecues need to be kept under a weather proof cover. PROCEDURE Assembling the legs, lid and accessories Instructions follow of the assembly of Heatlie BBQ accessories. Examine only those instructions appropriate to the product/s purchased. Remove contents of Leg Kit Box. - Page 10 HEATLIE BARBECUES If you have a Barbecue without legs: 8.2.11 Turn the Barbecue upside down and place on a smooth surface so the Barbecue is not damaged. 8.2.12 Remove the galvanised base plate by removing the tek screws with a spanner 8.2.13 Insert the 4 leg extensions through the warming drawer frame...
- Page 11 HEATLIE BARBECUES Heatlie Barbecue Without Legs Assembly NOTE: If Warming Drawer is being used, please refer to “Assembly of Heatlie Accessories” before commencing. Barbecue without legs can be located in a recess or on a bench. Any vertical surface of a combustible nature (i.e rear / side wall or enclosure panel) of a recess installation or any adjacent bench wall be not less than 200mm to the edge of the cooking plate.
-
Page 12: Connecting To A Gas Supply
HEATLIE BARBECUES CONNECTING LPG Connection If using Liquid Petroleum Gas (LPG), a 9kg bottle is required. TO A GAS Ensure that the Barbecue is at least 200mm away from any combustible SUPPLY surface. Ensure that the Barbecue is placed on a solid surface. -
Page 13: Using The Barbecue
HEATLIE BARBECUES USING THE Cleaning the Barbecue Plate (Before first time use) The Barbecue plate has a food grade protective coating on it to prevent BARBECUE rust before use. Before inserting the hotplate into the Barbecue this coating needs to be completely removed. Using warm, soapy water and a non-scratch scourer, wash the hotplate until the water runs clear. -
Page 14: Lighting Instructions
HEATLIE BARBECUES LIGHTING Before Lighting Be sure the BBQ side is at least 200mm away from any combustible INSTRUCTIONS surface and 1.5 metres overhead. 2. The unit should be placed on a firm solid surface. 3. The unit should be leveled, with a slight incline to the front to be sure that the fat runs into the front valley. - Page 15 HEATLIE BARBECUES TIMER OPTION If you have the BBQ with the Timer option it automatically includes the above Flame Failure option. WITH FLAME FAILURE IGNITER FLAME FAILURE TIMER PRESS FIGURE F11 Operating Instructions Turn on valve at gas supply 2. Turn knobs to on position 3.
-
Page 16: Cooking Instructions
HEATLIE BARBECUES COOKING Turn the Barbecue on high for 3 minutes to pre-heat the hotplate. INSTRUCTIONS As a guide: For a 20mm thick, medium cooked steak, cook for 3-4 minutes each side. For a medium-rare steak, cook for 2 minutes on each side. - Page 17 Burner flame is Ensure Barbecue is ventilated starved of air correctly If any of the above conditions cannot be rectified, contact the place of purchase or the manufacturer, Heatlie Barbecues. A-0020-MAN Heatlie BBQ Instruction Manual V6 Updated Dec 2018...
-
Page 18: Gas Consumption
2.75 Natural Gas Commissioning: Burner pressure is set with one burner operating. Cooking Area: Model 1150 – 1150 x 520mm Model 850 – 850 x 520mm Model 700 – 700 x 520mm Conversion Instructions The gas conversion process can only be conducted by authorised persons. -
Page 19: Warranty Policy
HEATLIE BARBECUES WARRANTY Heatlie Barbecues warrants its products to be free of original manufacturing defects in material and workmanship, for a period of POLICY ten years from the date of purchase for domestic use and one year for commercial use. Any claim must be made within this time, dating from the date of purchase. - Page 20 Designed and manufactured by: M&A Mead Investments Pty Ltd t/as Heatlie Engineering ABN 55 111 671 008 60 Kinkaid Ave NORTH PLYMPTON SA 5037 Phone (08) 8376 9330 Email Address: info@heatlie.com.au Web Page: www.heatlie.com.au...
