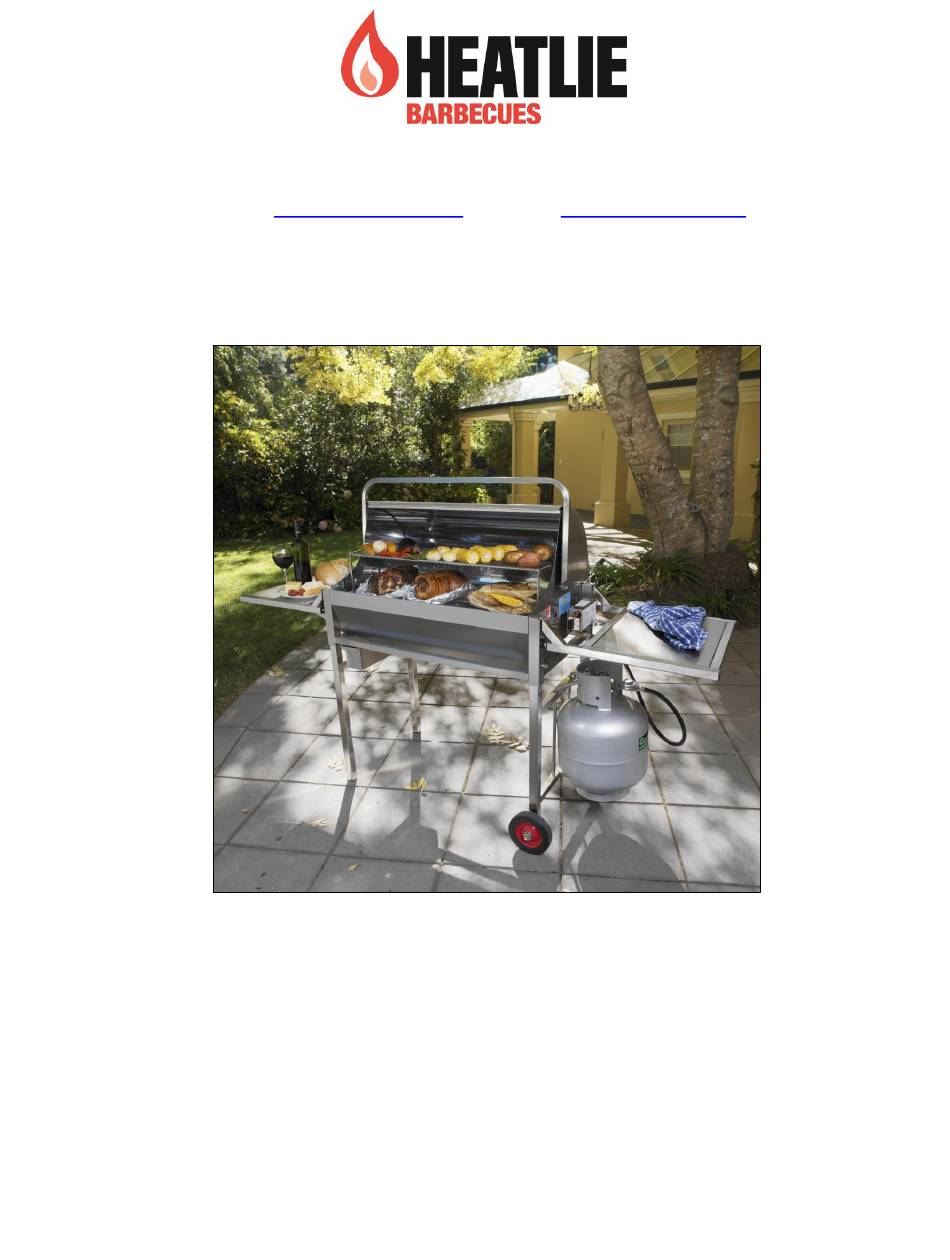

SNAPPY KING – Model RB1000SS
General Installation and Operation Instructions
MODEL AND TYPE OF APPLIANCE
SNAPPY KING (RB1000SS) - Is a 1 rack roaster that can also be used as a barbecue when using the optional
Hotplate. Overall dimensions; 1100mm (W) x 1250mm (H) x 600mm (D)
TO BE USED WITH A 9KG GAS BOTTLE.
GENERAL
The appliance shall be installed in accordance with the manufacturer's installation instructions, local gas fittings
regulations, municipal building codes, water supply regulations, electrical wiring regulations, the AS5601 Gas
Installation Code, and other relevant statutory regulations.
WARNING: This appliance is for outdoor use only.
TH
27
November 2014
60 Kinkaid Ave
North Plympton SA 5037
Phn: 08 8376 9330
info@heatlie.com.au
Website:
www.heatlie.com.au
1 of 11
