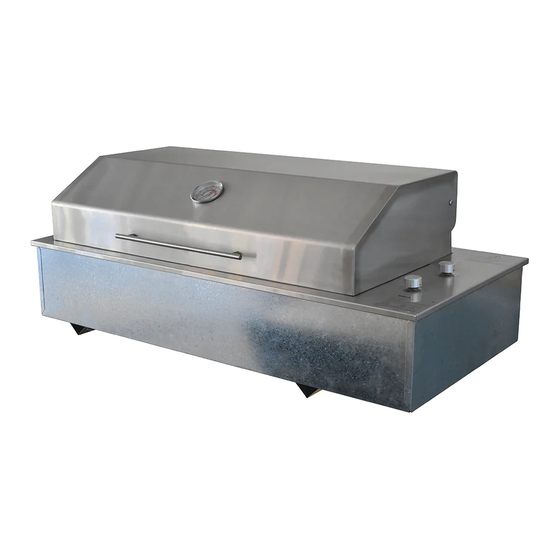

  • Page 1 ISLAND GOURMET ELITE IGE600 & IGE850 Instructions and General Information...
  • Page 2 ISLAND GOURMET ELITE CONGRATULATIONS ON PURCHASING A HEATLIE BARBECUE! Designed for those who love the experience of outdoor cooking, we’re sure you’ll enjoy the power and efficiency of the Ribbon Burner System. Especially the fact that you’ll never have to worry about flare-ups! Here’ s looking forward to many delightful occasions preparing the food you crave, for the ones you love.
  • Page 3 ISLAND GOURMET ELITE CONTENTS Positioning Your Heatlie Barbecue in Installation: Unpacking The Box an Outdoor Area Cabinet Preparation IGE600: IGE850: Installation: Optional Bench Preparation Bench Preparation Roasting Hood IGE Installation IGE Installation (IGE600 & IGE850) Using the Barbecue Connecting to Plate: Cleaning &...
  • Page 4 ISLAND GOURMET ELITE IGE600 IGE850 A-0010-MAN Heatlie IGE Instruction Manual V4 Updated Aug 2018...
  • Page 5 ISLAND GOURMET ELITE UNPACKING Remove all items from the box and check against the list below to ensure that all components are included. THE BOX Box Contents Before installation, please check that the following components have been supplied: 1x Heatlie Island Gourmet Elite 600 or 850 Barbecue 1x Ziploc bag containing 2x Phillips head screws and 1x lid handle 2x Knobs...
  • Page 6 ISLAND GOURMET ELITE POSITIONING This Barbecue is only to be used in an above ground, open air situation with natural ventilation. YOUR HEATLIE The Island Gourmet Elite Barbecue is not for use indoors. Please refer to AS5601 for specific installation and ventilation regulations. BARBECUE IN If you are using the Barbecue within a structure, please ensure that you are AN OUTDOOR...

  • Page 7: Ventilation Requirements

    ISLAND GOURMET ELITE INSTALLATION Firstly, all Island Gourmet Elite barbecues need to be kept under a weather proof cover. If you purchased an Island Gourmet Elite Cabinet, refer to page 10 or 11 for the appropriate installation instructions for your model. Instructions for installing the hood can be found on page 12.
  • Page 8 ISLAND GOURMET ELITE Zero Clearance Ventilation The Island Gourmet Elite can be installed with zero clearance between the Barbecue body and the cabinet panels on either side. This would require panels to be directly underneath the Barbecue and on the side. Figures 2 and 3 clearly shows how adequate ventilation can be achieved with a panel that has a minimum width of 860mm underneath the Barbecue and a minimum height of 35mm on the side.

  • Page 9: Natural Gas

    ISLAND GOURMET ELITE LPG Gas Cylinder Compartment When using LPG, the gas cylinder needs to be placed in a ventilated compartment that is completely separate from the compartment which houses the Barbecue. This compartment where the LPG cylinder is stored needs to be ventilated at the top and bottom, with each opening at least 200cm².
  • Page 10 ISLAND GOURMET ELITE IGE 600 Bench Preparation NB. If you are installing an IGE 850 please refer to page 11. Before cutting your bench top please ensure you have a minimum of 220mm clear space below the bench top to accommodate the body of the Barbecue.
  • Page 11 ISLAND GOURMET ELITE IGE 850 Bench Preparation NB. If you are installing an IGE 600 please refer to page 10. Before cutting your bench top please ensure you have a minimum of 220mm clear space below the bench top to accommodate the body of the Barbecue.
  • Page 12 ISLAND GOURMET ELITE Instructions for installing the optional Roasting Hood (applicable to both IGE600 and IGE850) Place the hood onto something soft to protect it from becoming scratched. 2. Remove all the plastic from the stainless steel. 3. Remove the Barbecue plate. All screws on the internal back edge and the screw closest to the back of the Barbecue on each side will need to be removed using the tool supplied.

  • Page 13: Natural Gas Connection

    ISLAND GOURMET ELITE CONNECTING LPG Connection If using Liquid Petroleum Gas (LPG), a 9kg bottle is required. Ensure the TO A GAS correct ventilation requirements have been applied. For details, please refer to page 7. SUPPLY Connect the regulator to the cylinder. Do not over tighten. Tighten the gas cylinder connection with fingers (left hand external thread POL Type 21 CGAS fitting).
  • Page 14 ISLAND GOURMET ELITE USING THE Cleaning the Barbecue Plate (Before first time use) The Barbecue plate has a food grade protective coating on it to prevent BARBECUE rust before use. Before inserting the hotplate into the Barbecue this coating needs to be completely removed. Using warm, soapy water and a non- PLATE: GRILL &...
  • Page 15 ISLAND GOURMET ELITE LIGHTING Before Lighting Ensure the knobs are in the OFF position. INSTRUCTIONS 2. Turn on valve at the gas cylinder (for LPG connection). 3. Check there are no leaks (see Leak Test on page 14). Lighting If the Roasting Hood is in use, open hood before lighting. 2.
  • Page 16 ISLAND GOURMET ELITE COOKING Turn the Barbecue on high for 2 minutes to pre-heat the hotplate. INSTRUCTIONS As a guide: For a 20mm thick, medium cooked steak, cook for 3-4 minutes each side. For a medium-rare steak, cook for 2 minutes on each side. For gourmet sausages (25mm thick) cook for approximately 10 minutes, turning every couple of minutes.
  • Page 17 Burner flame is starved Ensure Barbecue is ventilated of air correctly If any of the above conditions cannot be rectified, contact the place of purchase or the manufacturer, Heatlie Barbecues. A-0010-MAN Heatlie IGE Instruction Manual V4 Updated Aug 2018...
  • Page 18 ISLAND GOURMET ELITE IGE600 CONSUMPTION Gas Type Natural Gas Universal LPG Injector Diameter 1.60mm 0.90mm Burner Pressure 1.00kPa 2.75kPa Nominal Hourly Gas Consumption 12.5 MJ/hr 12.5 MJ/hr per burner NHGC Total 25 MJ/hr 25 MJ/hr IGE850 Gas Type Natural Gas Universal LPG Injector Diameter 2.10mm...
  • Page 19 ISLAND GOURMET ELITE WARRANTY Heatlie Barbecues warrants its products to be free of original manufacturing defects in material and workmanship, for a period of POLICY ten years from the date of purchase for domestic use and one year for commercial use. Any claim must be made within this time, dating from the date of purchase.
  • Page 20 Designed and manufactured by: M&A Mead Investments Pty Ltd t/as Heatlie Engineering ABN 55 111 671 008 60 Kinkaid Ave NORTH PLYMPTON SA 5037 Phone (08) 8376 9330 Email Address: info@heatlie.com.au Web Page: www.heatlie.com.au...
