EVM Assembly Drawings and Layout Guidelines

4 EVM Assembly Drawings and Layout Guidelines
4.1

PCB Drawings

The following figures show component placement and layout of the EVM.
6
TPS2543EVM User's Guide

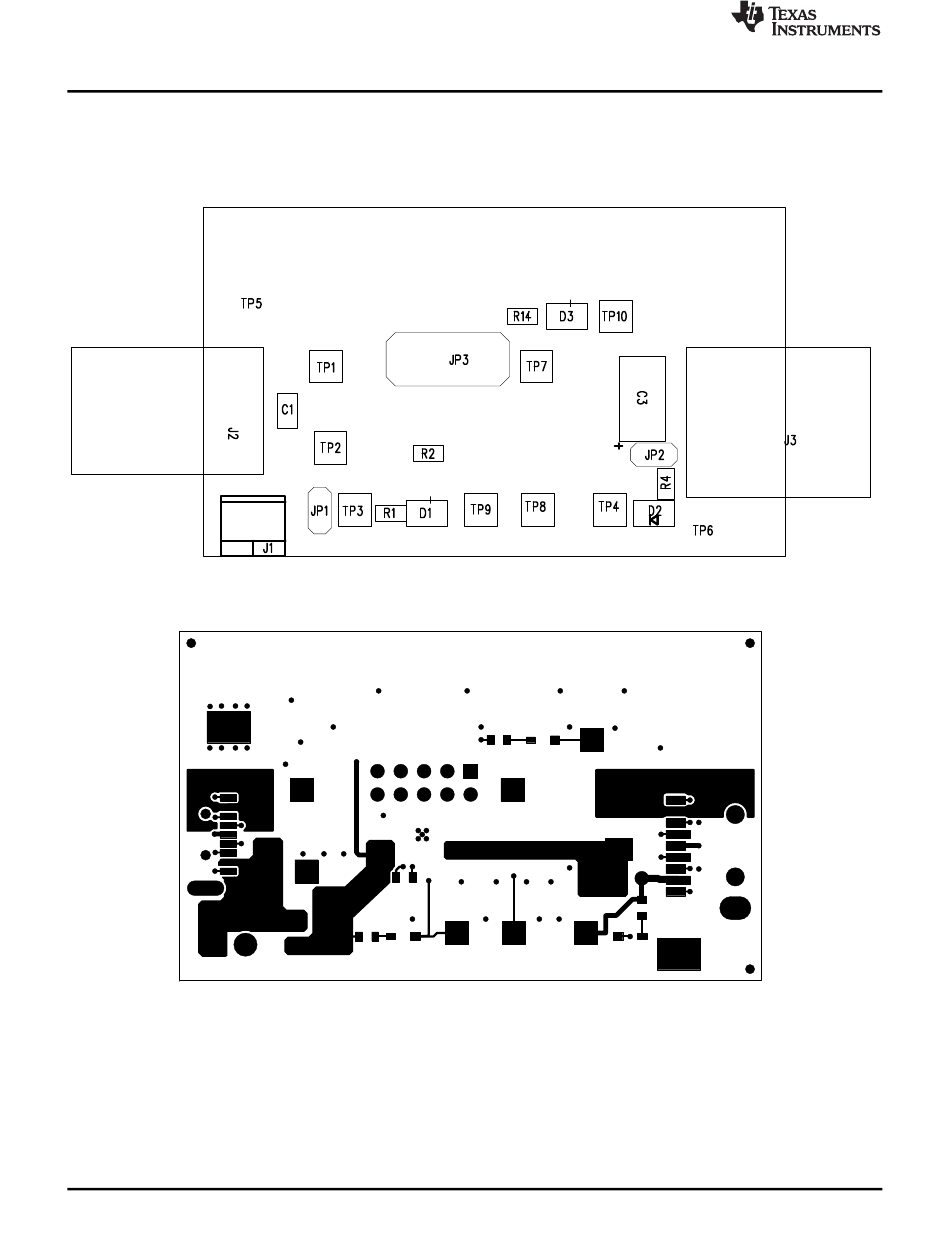

Figure 3. Top Side Placement
Figure 4. Top Side Routing
