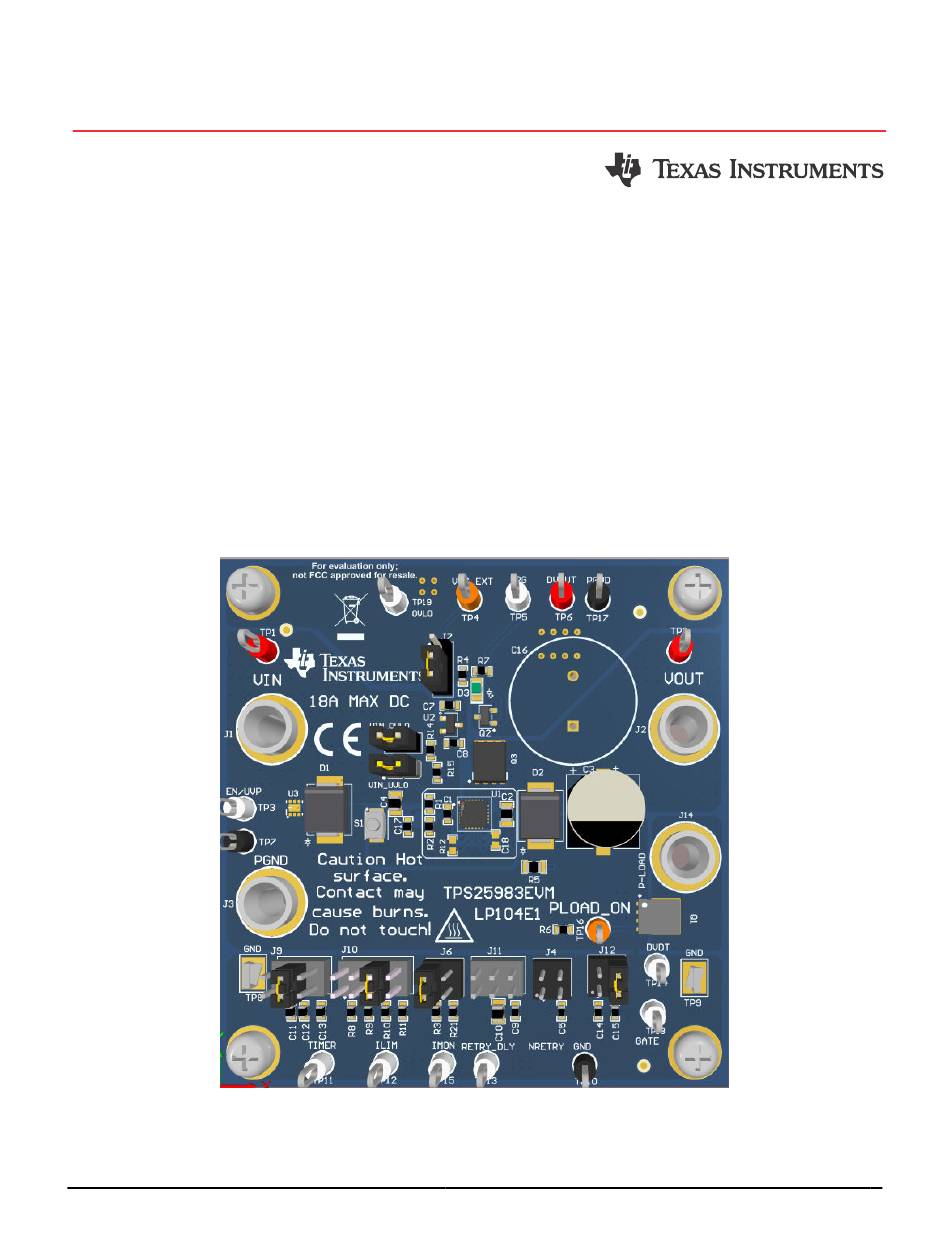

www.ti.com
EVM User's Guide: TPS25983EVM TPS25983
Evaluation Module for TPS25983 eFuse
Description
The TPS25983EVM eFuse Evaluation Board allows
reference circuit evaluation of TI's TPS25983 eFuse.
The TPS25983 device is 2.7 V to 26 V, 18 A
eFuse with integrated 2.7 mOhm FET, programmable
undervoltage, overvoltage,overcurrent, inrush current
protection, and configurable number of autoretries
and retry delay features.
Features
2.7-V to 26-V (typ) operation
2 A to 20 A programmable current limit using
onboard jumpers
Programmable output voltage slew rate control
Configurable number of auto-retries and retry-
delay features
SLUUCW7 – JULY 2023
Submit Document Feedback
Programmable current limit timer
TVS diode for input transient protection
On-board Schottky diode at output prevents
negative spike during overcurrent faults
LED status indication for Power Good output
Applications
Hot-Swap, Hot-Plug
Server standby rails
Optical Modules
PCIe, SSDs and HDDs
Routers and Switches
Industrial PC
Digital TV
Copyright © 2023 Texas Instruments Incorporated
Description
Evaluation Module for TPS25983 eFuse
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the eFuse TPS25983EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments eFuse TPS25983EVM

  • Page 1 Industrial PC onboard jumpers • Digital TV • Programmable output voltage slew rate control • Configurable number of auto-retries and retry- delay features SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    The device is a robust defense against overloads, short-circuits, voltage surges, reverse current and excessive inrush current. Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 3 OPEN sets ‘0’sec delay 1-2 Position sets 200 µs delay 3-4 Position sets 2 ms delay 5-6 Position sets 20 ms delay SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 4 One resistive load or equivalent which can tolerate up to 30 A DC load @ 24 V and capable of the output short. Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 5 Turn ON the power supply and set the power supply output (VIN) to 12 V, current limit = 20 A. • Turn OFF the power supply. • Set the jumper setting on EVM to default position as shown in Table 2-5. SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 6 TPS25983EVM eFuse Evaluation Board. Figure 2-2. TPS25983 Output Rise Profile (VIN = 12 V, CdVdT = 10 nF, COUT = 2 mF, No-load) Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 7 18 A on the TPS25983EVM eFuse Evaluation Board. Figure 2-3. Over Current Response of TPS25983 for 18 A Current Limit Setting SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 8 Figure 2-4 shows test waveform of output hot-short on the TPS25983EVM eFuse Evaluation Board. Figure 2-4. Output Hot-Short Response of TPS25983 Device Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 9 TPS25983EVM eFuse Evaluation Board. Figure 2-5. Test Waveform of Wakeup Into Output Short for TPS25983 Device SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 10 Figure 2-6 shows over voltage response of TPS25983 on TPS25983EVM eFuse Evaluation Board. Figure 2-6. Over Voltage Protection Response of TPS25983 Device Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 11 Hardware Design Files 3 Hardware Design Files 3.1 Schematic Figure 3-1 illustrates the EVM schematic. Figure 3-1. TPS25983EVM eFuse Evaluation Board Schematic SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 12: Pcb Layouts

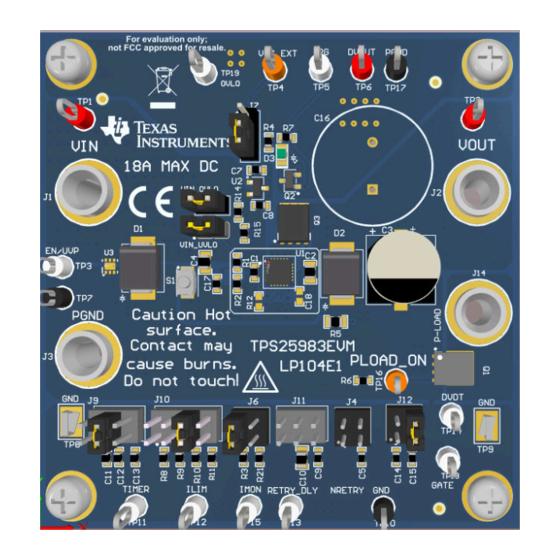

    EVAL Board and Figure 3-3 shows PCB layout images. Figure 3-2. TPS25983EVM Board (a) Top Assembly (b) Bottom Assembly Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 13 Hardware Design Files Figure 3-3. TPS25983EVM Board (a) Top Layer (b) Bottom Layer SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 14 Machine Screw, Round, #4-40 Screw NY PMS 440 0025 PH B&F Fastener x 1/4, Nylon, Philips panhead Supply H5, H6, H7, H8 Standoff 1902C Keystone Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 15 RC0603FR-0782RL Yageo 73.2 RES, 73.2, 1%, 0.1 W, 0603 RC0603FR-0773R2L Yageo 95.3k RES, 95.3 k, 1%, 0.1 W, 0603 603 RC0603FR-0795K3L Yageo SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 16 RES, 511, 0.1%, 0.1 W, 0603 RT0603BRD07511RL Yageo America 22-V Precision Surge DRV0006A TVS2200DRVR Texas Instruments Texas Instruments Protection Clamp, DRV0006A (WSON-6) Evaluation Module for TPS25983 eFuse SLUUCW7 – JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
  • Page 17 Additional Information 4 Additional Information Trademarks All trademarks are the property of their respective owners. SLUUCW7 – JULY 2023 Evaluation Module for TPS25983 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
