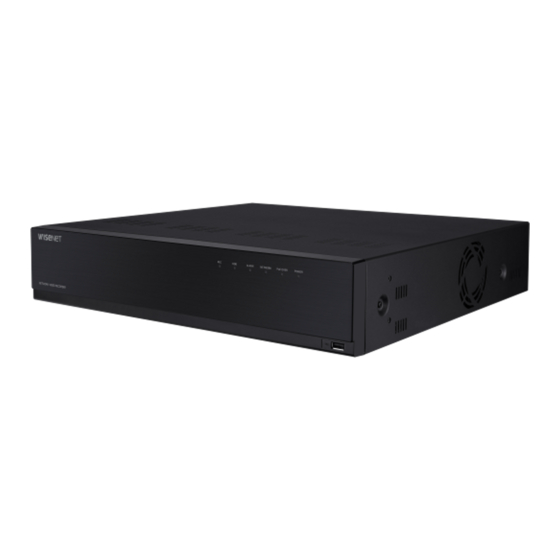

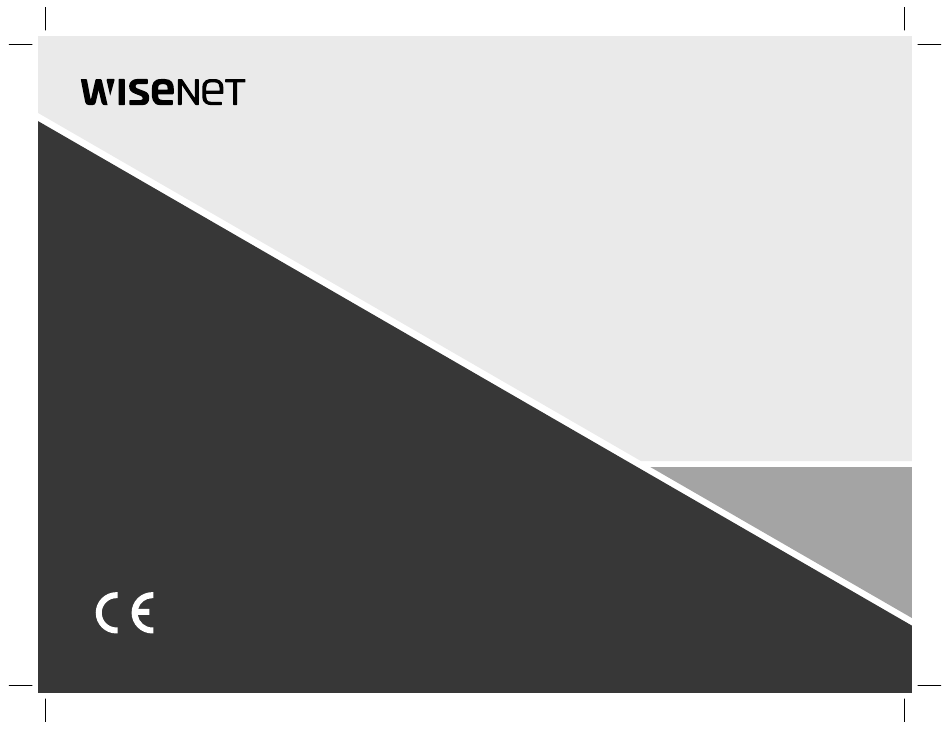

- Page 1 NETWORK VIDEO RECORDER Product Specifi cation Manual WRN-1610S/WRN-810S...
- Page 2 Network Video Recorder Product Specifi cation Manual Copyright ©2020 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
- Page 3 overview IMPORTANT SAFETY INSTRUCTIONS BEFORE START Read these operating instructions carefully before using the unit. This manual provides operational information necessary for using the product and contains a description Follow all the safety instructions listed below. about each component part and its function as well as menu or network settings. Keep these operating instructions handy for future reference.
- Page 4 overview System Shutdown Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product. To safely power off, select the Power icon in the upper right corner of the desktop, then select the Power icon again in the drop menu, then select on Power Off in the following pop-up menu.
-
Page 5: Table Of Contents
overview CONTENTS OVERVIEW Important Safety Instructions PRODUCT SPECIFICATION 13 product specification Before Start Contents Features Part Names and Functions (Front) Part Names and Functions (Rear) 14 product specification PRODUCT OVERVIEW INSTALLATION Checking the installation environment Rack Installation HDD Addition CONNECTING WITH OTHER DEVICE 11 Connecting to an external device 11 Connecting the USB 11 Connecting the Alarm Input/Output... -
Page 6: Product Specification
Terminal block For some regions, HDD is not pre-installed. HDD Fixing Screw, SATA Power Cable, SATA data cable and SATA power/data cable quantity vary depending on the model. WRN-1610S HDD Fixing Screw (8ea) Bracket Fixing Screw (4ea) SATA Power cable... -
Page 7: Part Names And Functions (Rear)
PART NAMES AND FUNCTIONS (FRONT) PART NAMES AND FUNCTIONS (REAR) WRN-1610S WRN-1610S WRN-810S WRN-810S Part Names Functions Terminal to connect a separate ground cable. Ground connection Part Names Functions Add a ground cable to support the safe use of the device. -
Page 8: Installation
installation D) Circuit Overloading - Consideration should be given to the connection of the equipment to the Please take note of the followings before using this product. supply circuit and the effect that overloading of the circuits might have on overcurrent protection •... -
Page 9: Hdd Addition
How to install an HDD in WRN-1610S Number of HDDs supported : Up to 4 HDDs supported (WRN-1610S) Up to 2 HDDs supported (WRN-810S) 1. First, loosen the screws on the left/right sides and the Make sure to unplug the power cord from the wall outlet before proceeding with the installation. - Page 10 installation 4. Connect the cable to the HDD by matching the HDD How to install an HDD in WRN-810S SATA/power cable number to the HDD position number 1. First, loosen the screws on the left/right sides and the on the bracket. rear side, and remove the cover.
-
Page 11: Connecting With Other Device
connecting with other device connecting with other device CONNECTING TO AN EXTERNAL DEVICE CONNECTING THE ALARM INPUT/OUTPUT The Alarm In/Out port at the back is composed of the following. Sensors Alarm • ALARM IN 1 ~ 4 : Alarm Input Port •... -
Page 12: Connecting The Network
connecting with other device CONNECTING THE NETWORK Connecting to Internet through PPPoE Network connection via Ethernet (10/100/1000BaseT) NETWORK 2 NETWORK 2 Switch NETWORK Switch Phone(PPPoE) PPPoE MODEM NETWORK 2 NETWORK 2 Line NETWORK 1 NETWORK 1 Switch NETWORK 1 NETWORK 1 Switch Windows Network Viewer... - Page 13 PRODUCT SPECIFICATION Details Details Item Item WRN-1610S WRN-810S WRN-1610S WRN-810S RJ-45 (1000BASE-T x 2EA, RJ-45 (1000BASE-T x 2EA, Display Ethernet PoE 100BASE-TX x 16EA) PoE 100BASE-TX x 8EA) Network Camera Inputs Max. 16ch (16 PoE, RJ-45) Max. 8ch (8 PoE, RJ-45)
- Page 14 PRODUCT SPECIFICATION • WRN-1610S 440 [17.32] unit : mm [inches] 14_ product overview...
- Page 15 product overview • WRN-810S unit : mm [inches] 370 [14.57] English _15...
- Page 16 memo...
- Page 17 memo...
- Page 18 memo...
- Page 19 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive. Correct Disposal of This Product (Waste Electrical &...
- Page 20 Head Offi ce 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwhasecurity.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
