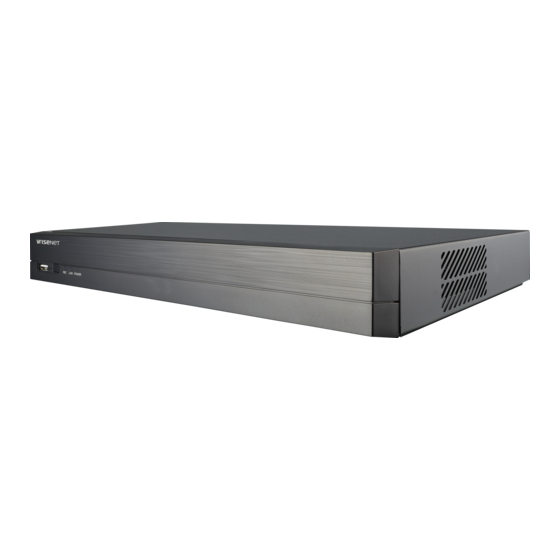

HDD Installation HDD Fixing Screw SATA Cable QRN-410S/810S QRN-810S The following figures are based on Model QRN-810S. After unscrewing, push back and remove the cover. Connect the SATA/power cables of the HDD to the connectors on the mainboard. POWER Mouse...
Page 3
Install Wizard Close the cover, and tighten a setscrew in the back. Select the language Select your preferred language. U H D Set Password Set a password. QRN-1610S After unscrewing, push back and remove the cover. Separate them by unscrewing the fixed bracket screw and push it towards the arrow on the board.
Page 4
Additional camera registration In the <Install Wizard> setting, make a connection to the camera automatically registered and use the menu path to register and connect a camera. Menu ; Device ; Camera ; Cam Registration ; Auto Set Date & Time Set the time and date and click the <Finish>...
Page 5
Configuring the Recording Setting Up the Camera This section outlines how to configure and view the recording settings for each channel. From the setup menu, you can configure the camera settings (resolution, frame rate, and quality) and other functional settings. FULL Menu ;...
Page 6
Use the basic guide Live launcher Show shortcut menu Right-click on the live screen and you can access various functions that NVR provides. Hover over an icon and a brief definition of term for each function is prompted. a You can configure a live layout. Full Screen b You can configure a supported split mode.
Page 7
QRN-1610S QRN-1610S b When the connection is successful, search for WiseNet Mobile from the smart phone, and then install and run it. When Add a device > QR code is selected, the NVR QR code can be scanned. c When the QR code is scanned, the device ID that can be seen in NVR is automatically converted to mobile viewer ID, and the mobile viewer can be used right away when the ID/password of NVR is entered.
Page 8
Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 http://hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free : +1.877.213.1222 Direct : +1.201.325.6920 Fax : +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe...
