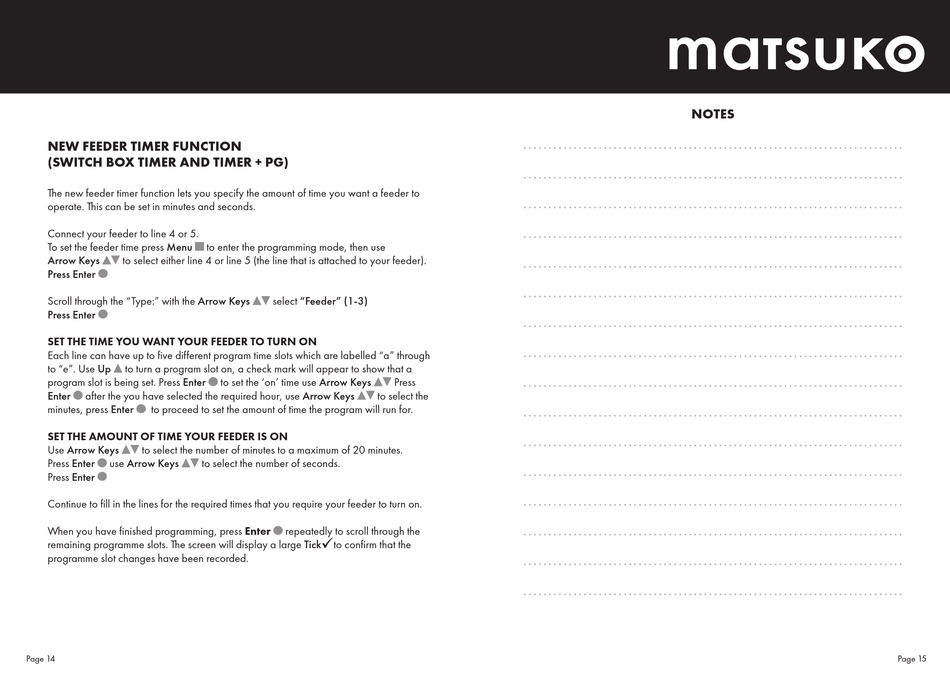

Matsuko Switch Box Installation And Operating Manual page 8

NEW FEEDER TIMER FUNCTION
(SWITCH BOX TIMER AND TIMER + PG)
The new feeder timer function lets you specify the amount of time you want a feeder to
operate. This can be set in minutes and seconds.
Connect your feeder to line 4 or 5.
To set the feeder time press Menu
to select either line 4 or line 5 (the line that is attached to your feeder).
Arrow Keys
Press Enter
Scroll through the "Type:" with the Arrow Keys
Press Enter
SET THE TIME YOU WANT YOUR FEEDER TO TURN ON
Each line can have up to five different program time slots which are labelled "a" through
to "e". Use Up to turn a program slot on, a check mark will appear to show that a
program slot is being set. Press Enter
Enter after the you have selected the required hour, use Arrow Keys
minutes, press Enter to proceed to set the amount of time the program will run for.
SET THE AMOUNT OF TIME YOUR FEEDER IS ON
Use Arrow Keys to select the number of minutes to a maximum of 20 minutes.
Press Enter use Arrow Keys to select the number of seconds.
Press Enter
Continue to fill in the lines for the required times that you require your feeder to turn on.
When you have finished programming, press Enter
remaining programme slots. The screen will display a large Tick
programme slot changes have been recorded.
Page 14
to enter the programming mode, then use
select "Feeder" (1-3)
to set the 'on' time use Arrow Keys
to select the
repeatedly to scroll through the

to confirm that the
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
Press
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
............................................................................
NOTES
