CONNECTING THE CABLES

WARNING: ALWAYS TURN THE SWITCH BOX POWER
OFF AT THE MAINS ELECTRIC BEFORE OPENING
THE COVER. ALWAYS SECURE WITH CLOSING SCREW.
It is essential for your safety that you ensure the power of all inputs (including mains) is turned
off before proceeding with installation. Do not attempt to install cables without required knowledge and
expertise! Use of a qualified electrician is recommended for all installations.

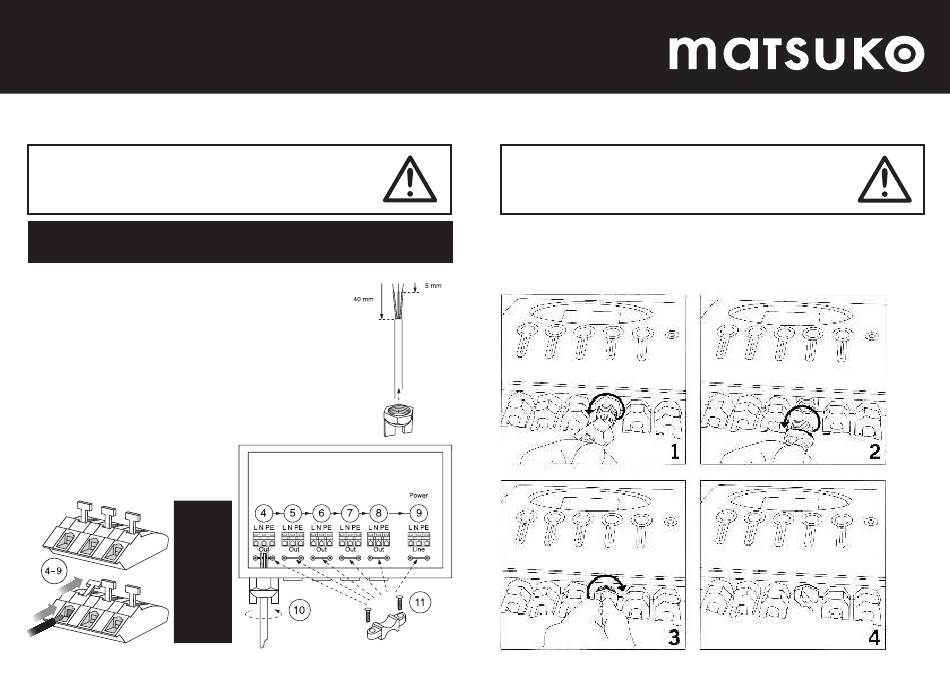

IMPORTANT: Connect the wires to the appropriate pins (Live,
Neutral, Earth). Up to five outgoing connections can be installed into
the Switch Box (4-8).
Power input is supplied into a separate mains channel (9). Use two
screws to secure the cable grip and fix each cable into place inside
the Switch Box (1 1). Outside the Switch Box, if using the supplied
cable gland sealing ring, ensure the cable gland sealing ring is
turned clockwise until the cable is firmly secured and sealed in the
connector (10).
Our NEW PCB terminal blocks are
easy click push connectors allowing
the user to connect the power in and
out cables.
Use a screw
driver to push
the fastening
clip over on the
terminal block,
place the cable
into the terminal
block and release
the clip securing
the cable.
Always use
ferrule clamps
on the cables to
ensure a safe
connection.
Page 8
FINISHING CONNECTIONS & BLANKING PLUGS
WARNING: ALWAYS TURN THE SWITCH BOX POWER
OFF AT THE MAINS ELECTRIC BEFORE OPENING
THE COVER. ALWAYS SECURE WITH CLOSING SCREW.
Once you have connected all of your appliances, always secure the lid with the closing screw.
There are two blanking plugs supplied with Matsuko Switch Boxes. These blanking plugs should
be used to replace the cable glands if you decide not to wire a device in at any point.
