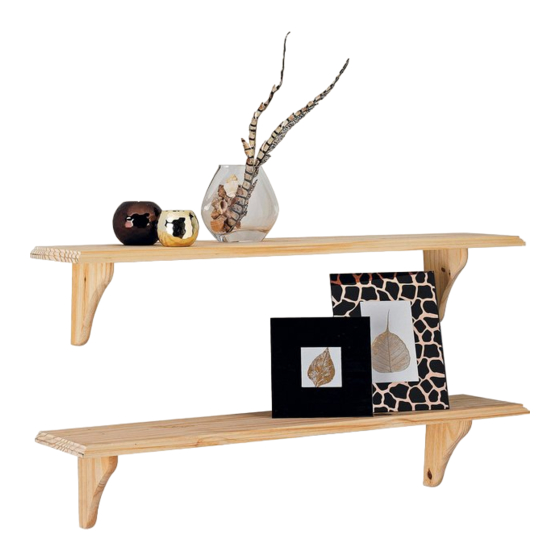

2 Pine Shelves With Bracket
Assembly Instructions -
Dimensions
Width - 89cm
Depth - 19cm
Height - 18,2cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800
Please keep for future reference
875/4059
Issue 2 - 29/06/18
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 875/4059
Summary of Contents for Argos 875/4059
- Page 1 2 Pine Shelves With Bracket Assembly Instructions - Please keep for future reference 875/4059 Dimensions Width - 89cm Depth - 19cm Height - 18,2cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400 800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the use pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the panels listed below 2 Support x 4 (16,4 x 17cm) 1 Shelf x 2 (89 x 19cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Wall plug (for solid walls only) x 4 40mm Screw x 12 Tools required Phillips screwdriver...
- Page 5 Assembly Instructions Step 1 Fix shelf 01 on support 02 using screw A .
- Page 6 Assembly Instructions Step 2 - Wall plug supplied for masonry wall only. - Wall plug and fixing used must be correct for wall type. - If any doubt seek professional advise. Fix the wall plug B into the wall and insert screw A , leaving 12mm of the screw outstanding.
-
Page 7: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
