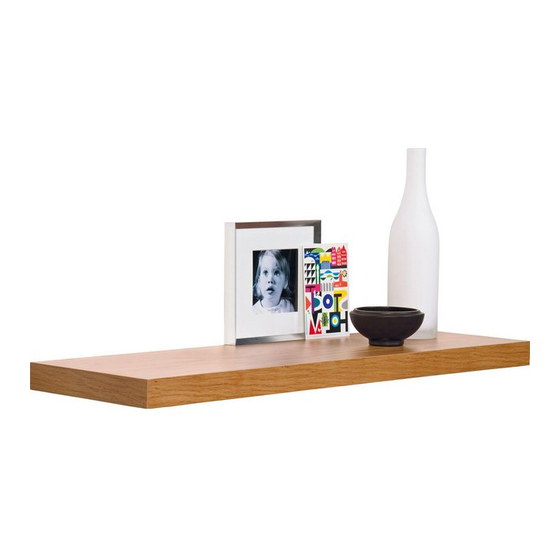

Floating Shelf 120cm
Assembly Instructions -
Dimensions
Width - 120cm
Depth - 25cm
Height - 4.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
875/2886
875/3696
issue 1 4/19/10
Advertisement
Related Manuals for Argos 875/2886
Summary of Contents for Argos 875/2886
- Page 1 Floating Shelf 120cm Assembly Instructions - 875/2886 Please keep for future reference 875/3696 Dimensions Width - 120cm Depth - 25cm Height - 4.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand on the panels, this We do not components and tools listed on could cause damage. recommend the use pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below T op (120 x 25cm) Support (65 x 15.3cm) (pre-fixed in the shelf)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 22mm Screw Sticker x 2 Wall plug x 5 (pre-fixed in the shelf) x 2 32mm Screw for wall plug x 5...
- Page 5 Assembly Instructions Step 1 Step 1 Wall mounting Note: It would be useful to ask someone to help you at this stage. Important: When drilling into walls always check that there are no hidden wires or pipes etc. Make sure that the screws and wall plugs supplied are suitable for supporting the unit.
- Page 6 Assembly Instructions Step 2 Finishing the unit Note: It would be useful to ask someone to help you at this stage. Insert the Shelf onto the finished Support Use Screws to fix the Shelf onto the Support Use Cover caps cover the screw head.
-
Page 7: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
