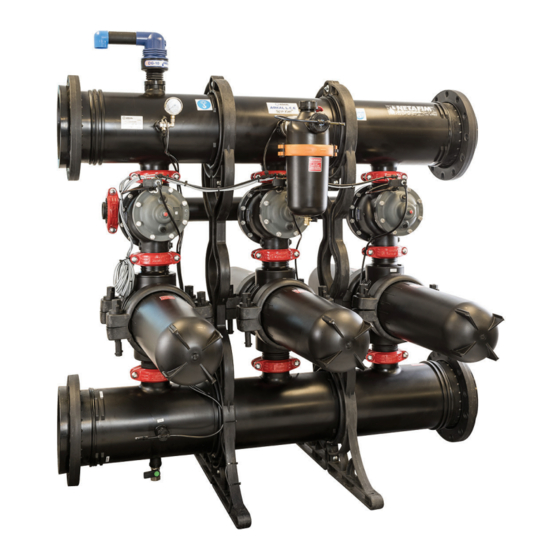

- Page 1 FILTRATION APOLLO DISC-KLEEN FILTERS OPERATION, INSTALLATION & MAINTENANCE GUIDE ANGLE CONFIGURATION TWIN CONFIGURATION...
-
Page 2: Table Of Contents
Specifi cations ......................... 3 Filter Dimensions......................4 Water Quality & Maximum Flow Rates ..............5 Filter Operation ....................... 5 Installation........................8 Filter Start-up ........................ 10 System Maintenance ....................10 Troubleshooting ......................13 Replacement Parts ...................... 15 • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE... -
Page 3: Specifications
SPECIFICATIONS Netafi m congratulates you on purchasing the Apollo Disc-Kleen fi lter. All Netafi m fi lters are easy to install, use and service and don’t require special skills to operate. For operation and maintenance of the fi lter, please follow the instructions in this manual. -
Page 4: Filter Dimensions
47 6/16” 12 1/32” 29 29/32” 24 9/32” 63 31/32” 2,010 LBS. All measurements are approximate. For specific dimensions refer to the CAD Design Details located on the Netafim USA website. • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE... -
Page 5: Water Quality & Maximum Flow Rates
Water flows from Water sprayed from outside to inside. the inside to the outside. which are fl ushed out through the drain. APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE •... - Page 6 fi lters through the backfl ush valves. The fi ltered water fl ows through the outlet manifold into the system. Air Release Vent Command Filter 4” Backflush Valve 4” Twin Apollo Filter FILTERS 1, 2 & 3 ARE IN FILTRATION MODE • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE...
- Page 7 After all the fi lters have been backfl ushed, the system returns to fi ltration mode until the next backfl ush cycle. Air Release Vent Command Filter 4” Backflush Valve DRAIN 4” Twin Apollo Filter FILTER 4 IS IN BACKFLUSH MODE APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE •...
-
Page 8: Installation
• M is master valve – used with Pressure Sustaining Normally Open or Electric valves to control the downstream fl ow. • Terminals 1-8 for each solenoid for the “hot” lead. • Seal the wire access holes to the controller. • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE... - Page 9 Time or Δ P Time or Δ P Pressure Vent Comm Vent Vent. Vent. Vent. Command from Solenoid Vent Command to Valve Feed Command Water Com. Drain Drain Drain Command Water Filter Drain APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE •...
-
Page 10: Filter Start-Up
• In order to prevent the fi lter from becoming damaged under freezing conditions, drain all the water from the fi lter and leave the drain valve open. Disconnect the hydraulic tubes from the PD Gauge. • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE... - Page 11 • Place the fi lter cover on the fi lter body and secure it with a slight clockwise rotation. Reposition the clamp onto the cover and tighten the bolts with the clamp wrench. APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE •...
- Page 12 • Flush the fi lter bank a few times to remove all chemicals. bank. • Flush the fi lter bank a few times to remove all chemicals. CAUTION: When blowing out with compressed air, make sure all parts are opened. • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE...
-
Page 13: Troubleshooting
• Flush a fi lter individually by turning the manual override of the solenoid 180 degrees. If that fi lter fl ushes, then the fi lter is working hydraulically and the problem is electric. APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE •... - Page 14 If the drain pipe needs to be longer than 50 feet, use a 6” pipe. There should not be a check valve or gate valve on the drain pipe. - Remove the discs from the spines and clean them manually. Refer to the Disc Cleaning Instructions on Pages 11 and 12. • APOLLO DISC-KLEEN FILTER OPERATIONS, MAINTENANCE AND TROUBLESHOOTING GUIDE...
-
Page 15: Replacement Parts
REPLACEMENT PARTS APOLLO DISC-KLEEN FILTER BATTERY PARTS Model Numbers 26ASK*PP or 26ASK*PPB and the NEW Modular Apollo 26SK*PB Item Number Model Number Description Price Each 25AP225403414 Pressure Gauge Assembly 245.00 70561-001660 65ARIB2PP 2” Combination Air Vent 224.00 25AP50480222 Extension for Combination Air Vent 52.00... - Page 16 REPLACEMENT PARTS APOLLO DISC-KLEEN FILTER PARTS Twin Filter Item Number Model Number Description Price Each 70620-003432 25AP22000402 4” Twin Body 761.00 35.00 76000-002400 25AP50540112 3/4” Ball Valve 70620-007065 25AP50032311 O-Ring for 3/4” Ball Valve 6.70 70620-005100 25AP50060004 Gauge Port Seal 9.10...
