- Page 1 2” Battery Arkal Spin Klin Service & Maintenance Manual...
- Page 2 Introduction General Armiad water systems congratulates you on purchasing the 2” Arkal Spin Klin Battery. All Arkal’s filters are easy to install, use and service and don’t require special skills to operate them. For operation and maintenance of the filter please follow the instructions in this manual. This Arkal 2”...

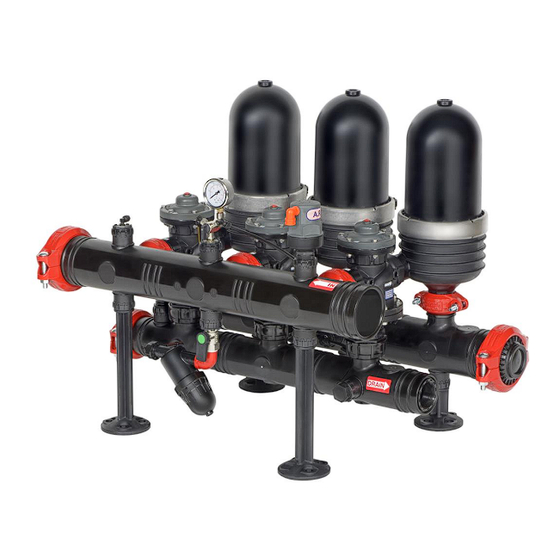

- Page 3 Operation During the filtration stage, water flows through the inlet manifold and is distributed through the 2” x 2” backwash valves into the Spin Klin filters. The water then passes through the filter elements to the outlet manifold for consumer use. Description of the Backwashing Process The controller transmits an electrical command to the first solenoid according to either differential pressure or time.
- Page 4 Spin Klin Technology- Spin Klin Spine General: The Spin Klin discs are stacked on the Spin Klin spine. The discs are color-coded by micron size, and are assembled according your water filtration Filtration Mode Backwash Mode requirements. The spine assembly has a spring compression unit and an internal piston which are used to alternately compress and release the discs during filtration and backwash cycles.
- Page 5 System Installation and Startup Technical Data Maximum Pressure 140 psi 10 bar (25 t) Minimum Pressure 2.8 bar 38 psi Backwash Flow Rate per unit 10 m 44 gpm Maximum Temperature 70C 158F 4-11 4-11 2” Spin Klin Battery REF. 961 [37 27/32"] REF.
- Page 6 Flushing controller FLUSHING TIME VENT COM. DRAIN COM. VENT DRAIN Control Refer to the manufacturer’s handbook before installing the controller. Make sure that the voltage of both the solenoid unit and controller are correct. Set the manual operation button to automatic. Check that the ∆P hydraulic switch HIGH and LOW pressure lines are correctly connected to ...
- Page 7 Spin Klin – System Maintenance Monthly Maintenance Check inlet /outlet pressures: In case the pressure differential is above 5 m / 7 Activate automatic backwash of the Spin Klin filter battery. In the event that the pressure differential remains high check for possible failures. Check for leakages from the drain manifold: In case there is a leakage of water during the filtration stage, check for possible failure at the backwash valve seals.
- Page 8 Seasonal Maintenance – Cleaning the Discs When manual cleaning of the discs is required, please follow the steps described below: Make sure that system is not under pressure! Release the clamp and remove the cover. (Figure 1) Unscrew the butterfly-nut on the filtration element.
- Page 9 Cleaning Recommendations for Clogged Filtration Discs Water-formed deposits may cause clogging of the filter discs. The formation of these deposits depends on the quality of the filtered water and environmental conditions like temperature, pH, light, duration of filtration and more. Common water-formed deposits are: ...
- Page 10 Cleaning Organic and Biological Deposits Open the filter and remove dirty discs. Attention – Never open the filter before the pressure has been released. Arrange the discs loosely on the plastic rope Prepare a 5% Sodium Hypochlorite solution: 1) Pour 5 liters of water into one of the large containers.
- Page 11 Cleaning Complex Deposits If the composition of the deposit is not known, perform the following test: Take 5 discs for the test. Soak 2 discs in a 5% Sodium Hypochlorite Solution. Preparation of the solution: Pour 1 cup of water into a small container, then add 1 cup of Sodium Hypochlorite (10% NaOCl).
- Page 12 Identifying Malfunctions in the 2” Spin Klin system No Backwash Operation Check inlet and outlet pressures Check & clean command filter Check controller – manually operate the backwash cycle No command transfer Functioning correctly Some commands do not function Check electrical source Check electrical source Replace battery if needed Replace battery if needed...
- Page 13 Identifying Malfunctions in the 2” Spin Klin system Continuous or Non-stop Backwashing Continuous backwash Non stop backwash cycle Disconnect the control Check inlet / outlet pressure pipes from the valves Check pressure differential gauge and replace if needed Check controller described above Contact your local distributor Command transfer No command...
