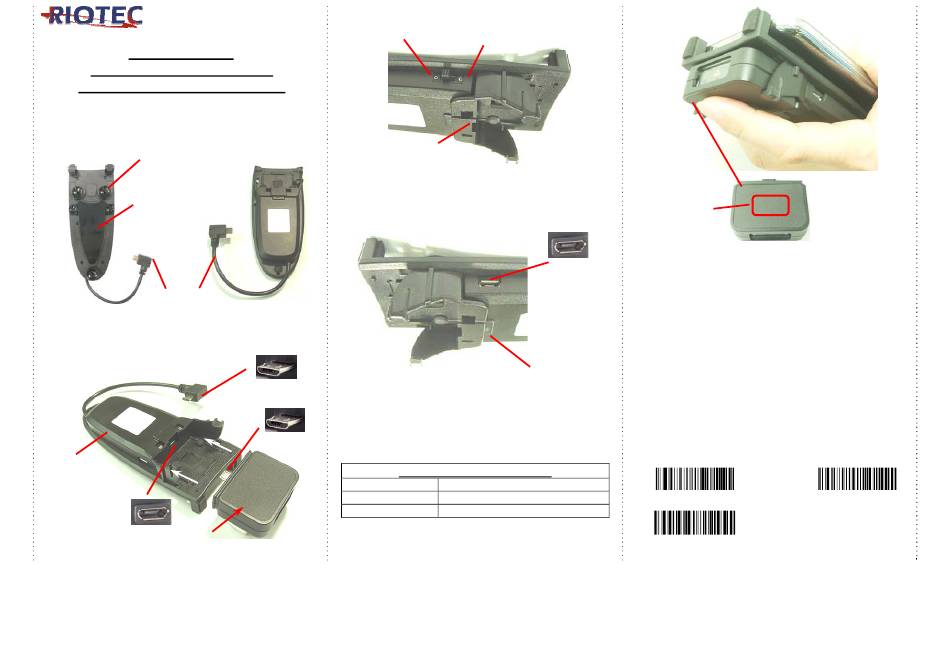

RIOTEC DC9253AP Quick Manual

Quick Guide
-DC9253AP (with Battery)
-DC9253AN (without Battery)
1
H92P/H92N
Suction Cup
PU Glue
(Can be used
repeatedly)
Micro USB
cable (OTG)
Connect to micro USB port of OTG device
2 H92P/H92N
H92P with
Li- Ion Battery/
H92N without
Battery
Mini
scanner
3
O = Operation mode
LED Indicator
H92P only
* Before you use it, please switch to "C" for battery charge for
3~4 hours.
*
Under "C mode", you can raise/lower soft-keyboard easily.
4
H92P Scan Holder is with Li-Ion battery inside. When in
Micro USB
charging, please use the original power adaptor of
smartphone (recommend). Through it, it charges both OTG
device and H92P internal battery at the same time. When in
low battery (Red LED flashing), please charge it
Micro USB
immediately.

LED Indicator Information

Green LED OFF
Green LED ON
Red LED Flashing
Attention: Under "Operation mode" please do not charging,
otherwise the OTG device's battery will be charging back to
H92P's battery.
C = Charge mode
LED Indicator
H92P only
Full charged (Charge mode)
Charging (Charge mode)
Low battery (Operation mode)
1
5
Trigger
Area
The touch trigger is in the central area of mini scanner. (for both side).
Please check the above drawing for your reference.

Installation

Before using scanner, please make sure that the OTG device is fully charged.
1. Under USB HID interface
** When plugged into OTG device, it will be recognized and begin to scan
the barcode.
2. Under USB Serial interface
** Please install PL-2303 driver into your OTG device first. PL-2303 driver
can be downloaded from Google Play
** Connect scanner to your OTG device, then, you can know which serial
port scanner connects to.
** The data you scan will be sent to serial port and your APP can get the
data from serial port directly.

Reset Configuration to Default :

If you are unsure of the scanner configuration or have scanned the
incorrect codes, please scan A1 to A2 for USB HID or B1 for RS232 or
USB Serial. This will reset the scanner to its factory defaults.
USB HID
A1 B1
A2
*Note : Please install PL-2303 driver for USB serial
RS232 / USB Serial.
