H-CDM8056
CD/MP3/WMA -RECEIVER
CD/MP3/WMA -
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CDM8056 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CDM8056

Summary of Contents for Hyundai H-CDM8056

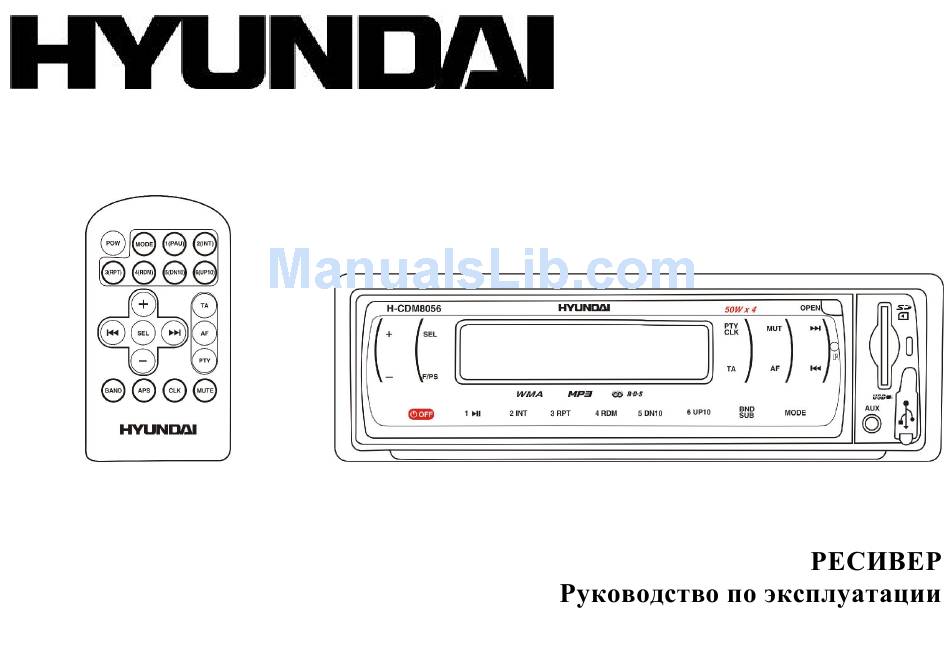

  • Page 1 H-CDM8056 CD/MP3/WMA -RECEIVER CD/MP3/WMA - Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents....................................2 Important safeguards..................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Accessories

    Accessories Receiver 1 pc Remote control 1 pc Carrying case 1 pc ISO connector 1 pc Mounting parts: Hexagon nut M5 T (3.5 mm) 1 pc Mounting box (0.6 mm) 1 pc Left key (1.0 mm) 1 pc Right key (1.0 mm) 1 pc Metal bar (0.8 mm) 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 6 Din rear-mount Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket. 2.
  • Page 7 Detachable control panel Detaching the control panel Press the OPEN button on the front panel. The panel will go down (pic. 1). Push the panel to the left and then pull it towards you (pic. 2). Attaching the control panel Pic.

  • Page 8: Connection Diagram

    Connection diagram ISO speaker connection Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibited to make the conductors of auto antenna and ground touch with each other. Connect the Panel light panel to “+”...

  • Page 9: Controllers

    Controllers 1. VOLUME+/- buttons 2. SEL button 3. F/PS button 4. TA button 5. PTY/CLK button 6. AF button 7. MUTE button 8. NEXT/PREVIOUS buttons 9. OPEN button 10. SD/MMC slot 11. SD Indicator 12. USB jack 13. AUX jack 14.
  • Page 10 Back of the front panel Press the OPEN button to open the panel. 1. LED indicator 2. RESET button (hole) 3. Disc slot 4. EJECT button Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.
  • Page 11 Remote control 1. POWER button 2. VOLUME+/-, NEXT, PREVIOUS, SEL buttons 3. BAND button 4. APS button 5. MODE button No 1/ PLAY/PAUSE ( ) button No 2/ INT button No 3/ RPT button No 4/ RDM button No 5/ DN 10 button No 6/ UP 10 button 6.

  • Page 12: General Operations

    General operations The buttons (except OPEN button) are sensory. Power button Press any button to switch the unit on. The display will show a message “WELCOME”. Press and hold POWER button to switch the unit off. The display will show a message “GOOD-BYE”. Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.
  • Page 13 Press MODE button: AUX => RADIO => DISK => USB => CARD. Note: USB, CARD, DISK mode will only be shown on the display when corresponding storage is inserted. Mute function Press MUTE button to turn off the sound. Press it again or change the volume level to resume. Subwoofer control Press and hold the BAND/SUB button to turn the Subwoofer output ON.

  • Page 14: Radio Operations

    Radio operations BAND selection Press BAND/SUB button repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1(MW1), AM2(MW2). Each band can store 6 preset stations, for a total of 30 preset memory stations. Tuning In Radio mode press NEXT/PREVIOUS buttons to manually adjust the radio frequency. Press and hold the buttons for 3 seconds once and radio will seek the next strong and clear frequency station.
  • Page 15 RDS function During listening to radio or CD if there are any travel announcements from a nearly local station the radio will always know the frequency of that radio station. Then it will receive the station, turn up the volume or interrupt the playback of the music for the duration of the announcement.
  • Page 16 Function Mask DPI- Mask all Press SEL button for 2 seconds. Press SEL button to cycle through to “Mask DPI”. Press VOLUME+/- button to choose between MASK DPI or MASK ALL mode. Leave the unit idle for the mode to take effect. During MASK DPI mode the unit will mask only the AF, which has different PI, this is the default mode.

  • Page 17: Cd/Mp3/Wma/Usb/Sd/Mmc Card Operations

    CD/MP3/WMA/USB/SD/MMC card operations Discs for playback This unit can play disc types: D/CD-R/CD-RW. Compatible with formats: CDDA/MP3/WMA. USB/SD/MMC notes USB functions (flash memory type) MP3 music play. SD/MMC card support, 2in1 (SD/MMC) support. USB flash memory. FAT 12/ FAT 16/ FAT 32 is possible FAT 12/16 (dir: 200 support, file: 500 support), FAT 32 (dir: 200 support, file: 500 support).
  • Page 18 Press OPEN button. Press EJECT button to eject the disc on the inner panel. If the disc is not removed from the slot within 10 seconds, it will automatically be loaded into the slot again. When the disc is ejected and removed, the unit will automatically switch to radio mode.
  • Page 19 During playback the MP3/WMA/USB/SD/MMC format press 3/RPT button to repeat tracks. Random playback During disc playback, press 4/RDM button to start random playback of the tracks. Press again to cancel. Intro playback You can play the beginning of every track for 10 seconds in sequence. Press 2/INT button to start intro play. The display will show “INT”.
  • Page 20 USB mode: If the MP3/WMA files are stored in folders on the USB drive, the unit will start playing the first song in the first folder. After playing all the files sequentially in the first folder, the unit will play sequentially all of the files in the next folder. The unit will continue playing through all of the folders on the USB drive in this manner.

  • Page 21: Mp3 Overview

    MP3 overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 22 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 23: Anti-Theft System

    Anti-theft system Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press OPEN button to flip down the panel. 3. Push the panel to the left and then pull it towards you. 4. Put it to the special box and take it with you. Remove the unit 1.

  • Page 24: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 25: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 26: Specification

    Specification General Power supply 12 V DC Current consumption max. 10 A Maximum power output 50Wx4 channels Fuse 10A/1A Dimensions (L x W x H) 178 x 50 x 150 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity 3 uV I.F.
  • Page 27 ....................................27 ................................28 ..................................29 ................................30 ..................................33 ................................... 34 ..................................36 /SD/MMC /USB ..................42 3..................................... 46 ................................48 ..............................49 ....................................49 ..........................50 ................................ 51...
  • Page 29 M5 T (3,5 (0,6 (1,0 (1,0 (0,8 (5X5 (5X25 M5 (5X29,3...
  • Page 32 OPEN . 1). . 2). . 3).
  • Page 33 “ ”...
  • Page 34 VOLUME+/- F/PS PTY/CLK MUTE NEXT/PREVIOUS OPEN SD/MMC 11. SD MODE BAND/SUB 6/UP10 5/DN10 4/RDM 3/RPT 2/INT 1/PLAY/PAUSE POWER...
  • Page 35 OPEN, 1. LED ) RESET EJECT RESET,...
  • Page 36 POWER VOLUME+/-, NEXT, PREVIOUS, SEL BAND MODE No 1/ PLAY/PAUSE ( No 2/ INT No 3/ RPT No 4/ RDM No 5/ DN 10 No 6/ UP 10 RDS: MUTE...
  • Page 37 OPEN) OPEN), «WELCOME». POWER, «GOOD-BYE». VOLUME+/- SEL, : VOL ( ) => BAS ( ) => TRE ( ) => BAL ) => FAD ( ) => LOUD ( ) => LOC ) => ST ( ) => BEEP ( ) =>...
  • Page 38 MODE, : AUX => RADIO => DISC => USB => CARD. USB, CARD, DISC «LOUD OFF». VOLUME+/-, OFF. MUTE, VOLUME+/-, BAND/SUB, PTY/CLK ( VOLUME+/-, SEL, VOLUME+/- PTY/CLK PTY/CLK,...
  • Page 39 BAND/SUB : FM1, FM2, FM3, AM1(MW1), 2(MW2). NEXT/PREVIOUS, ( FM «ST ON» «ST OFF» ( VOLUME+/-, « », F/PS F/PS (18 FM, 12 AM) NEXT/PREVIOUS.
  • Page 40 (1-6) (1-6), RDS ( AF ( «AF» , RDS TA ( SEEK. VOLUME+/-, TA SEEK TA ALARM, TA SEEK TA ALARM «TA/TP»...
  • Page 41 SEL, PTY/CLK, 1-6, 1-6, Mask DPI- Mask all SEL. SEL, «Mask DPI». VOLUME+/-, MASK DPI MASK ALL. MASK DPI, (AF), MASK ALL, RDS. Retune S/L – Short/Long SEL, «RETUNE_S». VOLUME+/-, «RETUNE_S» ( TA SEEK 30 «RETUNE_L» ( TA SEEK 90 «RETUNE_S».
  • Page 42 /SD/MMC /USB : D/CD-R/CD-RW. : CDDA/MP3/WMA. USB/SD/MMC SD/MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : 8 M ~ 1 : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8 M ~ 1...
  • Page 43 OPEN. «LOAD» MP3/WMA ID3, OPEN. EJECT, Multi-session CD USB/SD/MMC SD/MMC MODE, USB. 1/PLAY/PAUSE, NEXT/PREVIOUS, NEXT/PREVIOUS...
  • Page 44 UP 10/DN 10 ( MP3, WMA 6/UP10, 5/DN10, «RPT». 4/RDM, Intro 2/INT, «INT». ID3 Tag ( MP3/WMA ID3 Tag, Search ( MP3/WMA Search MP3/WMA MP3/WMA Intro F/PS, SEL ( VOLUME+/-, SEL,...
  • Page 45 F/PS, «F». VOLUME+/-, SEL, F/PS, «D». VOLUME+/-, SEL, USB: MP3/WMA AUX IN AUX IN MODE, AUX. AUX IN VOLUME+/-, BAND/SUB,...
  • Page 46 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW, 44,1...
  • Page 47 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 48 POWER, OPEN,...
  • Page 50 “ ”. POWER...
  • Page 51 12 , . 10 10 /1 A 178 50 150 87.5 - 108.0 10.7 522-1620 D/CD-R/CD-RW 20-100 10-20 . 2000...
