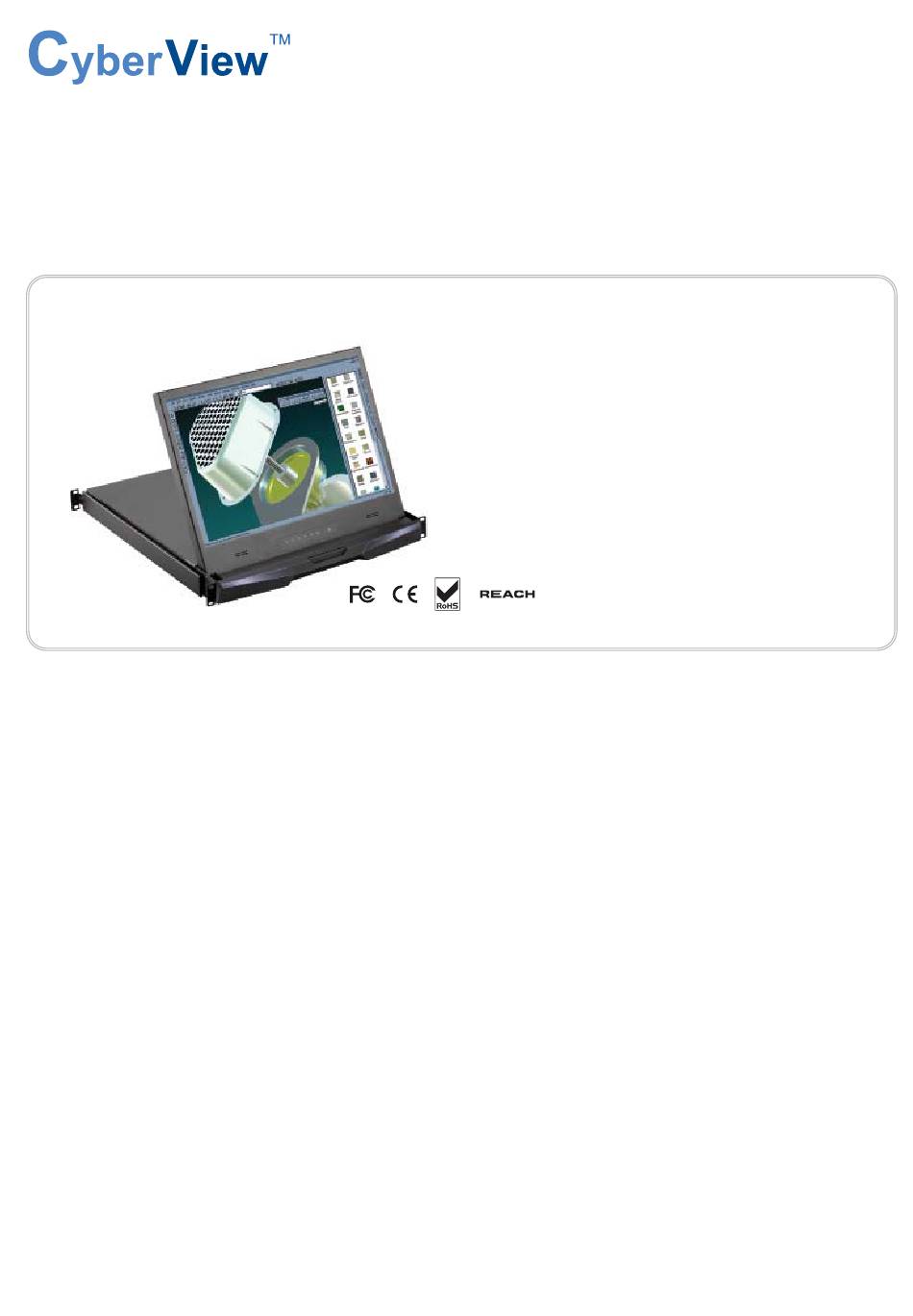

- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen LCD 1440 x 900 RP-W119 1U LCD Drawer Options : - SDI - AV / HDMI / Audio - DC power Designed and manufactured by Austin Hughes UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-W119 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
-
Page 5: Part. 1 > Rp-W119
< Part 1 > < 1.1 > Package Content RP-W119 RP-W119 unit X 1 - 6ft VGA cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the pure model ( VGA and DVI-D only ). - Page 6 Weight 441.6 x 460 x 44 mm 588 x 758 x 120 mm 13 kg 17 kg RP-W119 17.4 x 18.1 x 1.73" 23.1 x 29.8 x 4.7” 28.6 lb 37.4 lb The weight is only for the pure models. It varies with accessories & options such as SDI, HDMI, AV, audio &...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides RP-W119 Step ■ Insert the left and right rear mounting bracket into the display drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. -
Page 8: Product Specifi Cations
Power Supply Range Auto-sensing 100 to 240VAC, Power 50 / 60Hz Power Consumption Screen ON Max. 25W Power saving mode Max. 4W Power button OFF Max. 1W Safety FCC & CE certifi ed Regulatory Environmental RoHS2 & REACH compliant UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com... - Page 9 RP-W119 Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) 441.6 x 460 x 44 mm...
-
Page 10: On-Screen Display Operation ( Osd )
fl ash continuously when there is no signal input. All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-W119 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
- Page 12 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized / Asynchronized Video 3G-SDI 150m at 2.97Gb/s Max. Transmission Distance 75 ohm coaxial cable HD-SDI 250m at 1.485Gb/s SD-SDI 480m at 270Mb/s UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
- Page 13 < 3.2 > Options : RP-W119 ( HDMI 1.1, CEA-861-D - HDMI ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) ( 1 ) Either HDMI or DVI-D can be selected.
- Page 14 For DC power option : ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) Casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" ) P.10 UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
- Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-W119-Q116V1 www.austin-hughes.com...
