Summary of Contents for Cyber View RK-1 Series

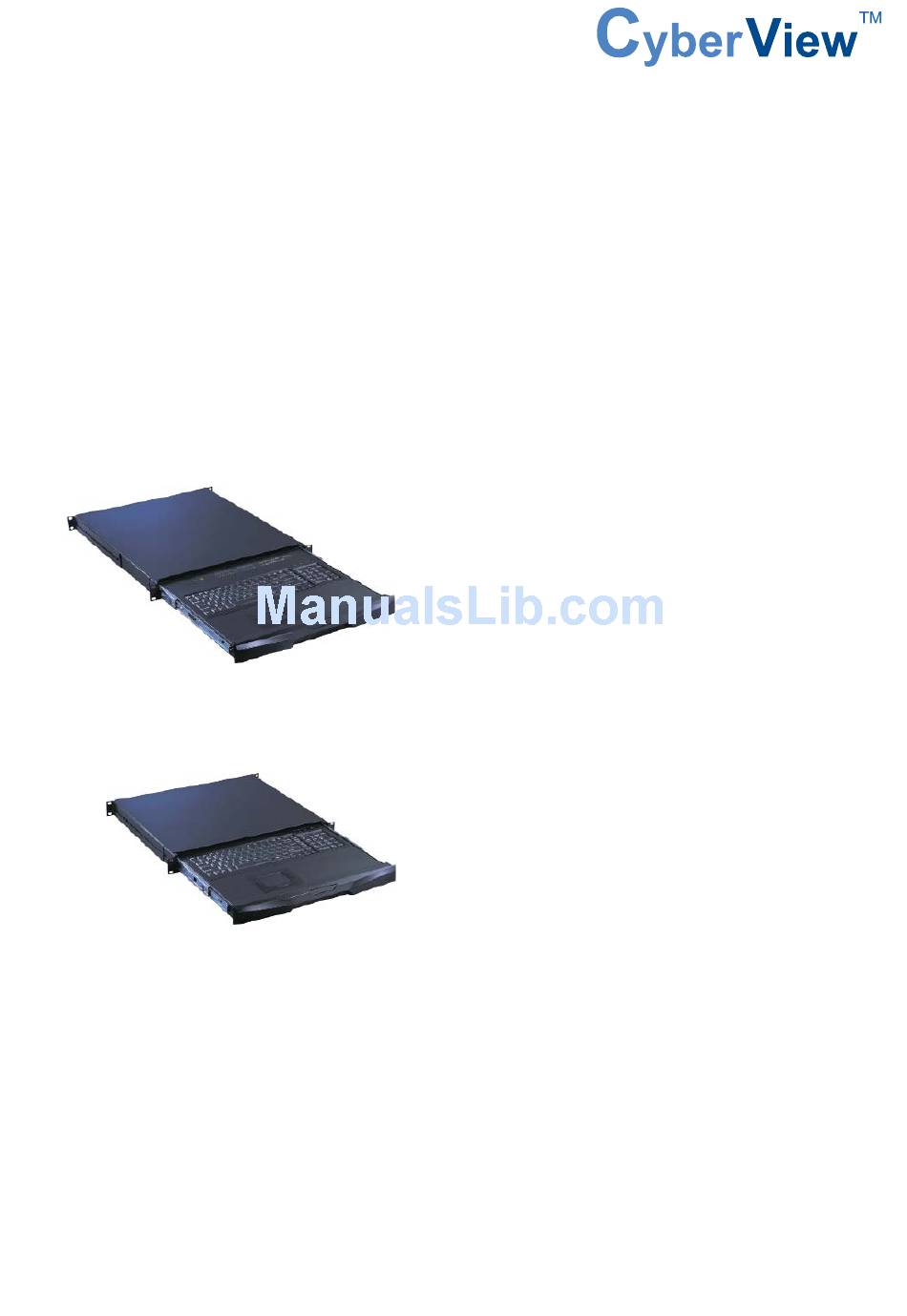

- Page 1 User Manual Rackmount Keyboard Drawer Models RK-1 Series - With KVM options Models RK-2 Series - Short depth version - Without KVM options...
- Page 2 blank page...
-
Page 3: Table Of Contents
Connect to KVM via USB Interface........5 1.10 Connect to Server via PS/2 Interface........6 1.11 Connect to KVM via PS/2 Interface........6 Chapter 2 Keyboard and Mouse ..........7 Chapter 3 Optional Specifi cation KVM Options for RK-1 Series..........8 Environmental..............8 Chapter 4 Dimensions ................8... -
Page 4: Package Contents
Keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * RK-1 series mounting depth-adjustable from 210 to 800mm * RK-2 series maximum mounting depth is 645mm Combo keyboard cable x 1 pc... -
Page 5: Before Installation
If anything is missing, or damage, contact the supplier immediately. 1.4 Optional Accessories 1. Extended rear mounting L-bracket 1.1 430mm (16.9") extended rear L-bracket for : RK-1 series up to 900mm RK-2 series up to 745mm *Extended rear L-bracket in tailor-made length on request... -
Page 6: Peripheral Products
Chapter 1 1.5 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 7: Installation
Chapter 1 1.7 Installation ■ Install each rear L-bracket using two fasteners shown in Figure 1. ■ Leaving the fasteners slightly loose Figure 1. Installing the rear L-bracket to the keyboard drawer. ■ Measure the front and rear mounting depth of the rack. -
Page 8: Connect To Server Via Usb Interface
Chapter 1 1.8 Connect to Server via USB Interface Figure 4. Example of connecting EKC-3 keyboard cable to server via USB interface 1.9 Connect to KVM via USB Interface Figure 5. Example of connecting EKC-3 keyboard cable to KVM via USB interface Remarks : ■... -
Page 9: Connect To Server Via Ps/2 Interface
Chapter 1 1.10 Connect to Server via PS/2 Interface Figure 6. Example of connecting EKC-3 keyboard cable to server via PS/2 interface 1.11 Connect to KVM via PS/2 Interface Figure 7. Example of connecting EKC-3 keyboard cable to KVM via PS/2 interface Remarks : ■... -
Page 10: Chapter 2 Keyboard And Mouse
Chapter 2 2.1 Keyboard & Mouse Supporting layouts N keyboard integrated with N keyboard integrated with trackball touchpad Supporting layouts only Supporting layouts only Compact keyboard integrated Compact keyboard integrated with touch-pad mouse with trackball... -
Page 11: Kvm Options For Rk-1 Series
Option with high density & cost effi cient Combo KVM integration with either 8 / 16 / 32 ports ■ Option with low cost PS/2 KVM ■ Please ask your supplier for full KVM details Remarks ■ RK-1 series has KVM option only. 3.2 Environmental Operation 0˚ to 50˚C Degree Storage -5˚ to 60˚C Degree Relative Humidity... - Page 12 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Austin Hughes Electronics Ltd. All rights reserved. CV-RK18-1208V3...
