Summary of Contents for Cyber View N Series

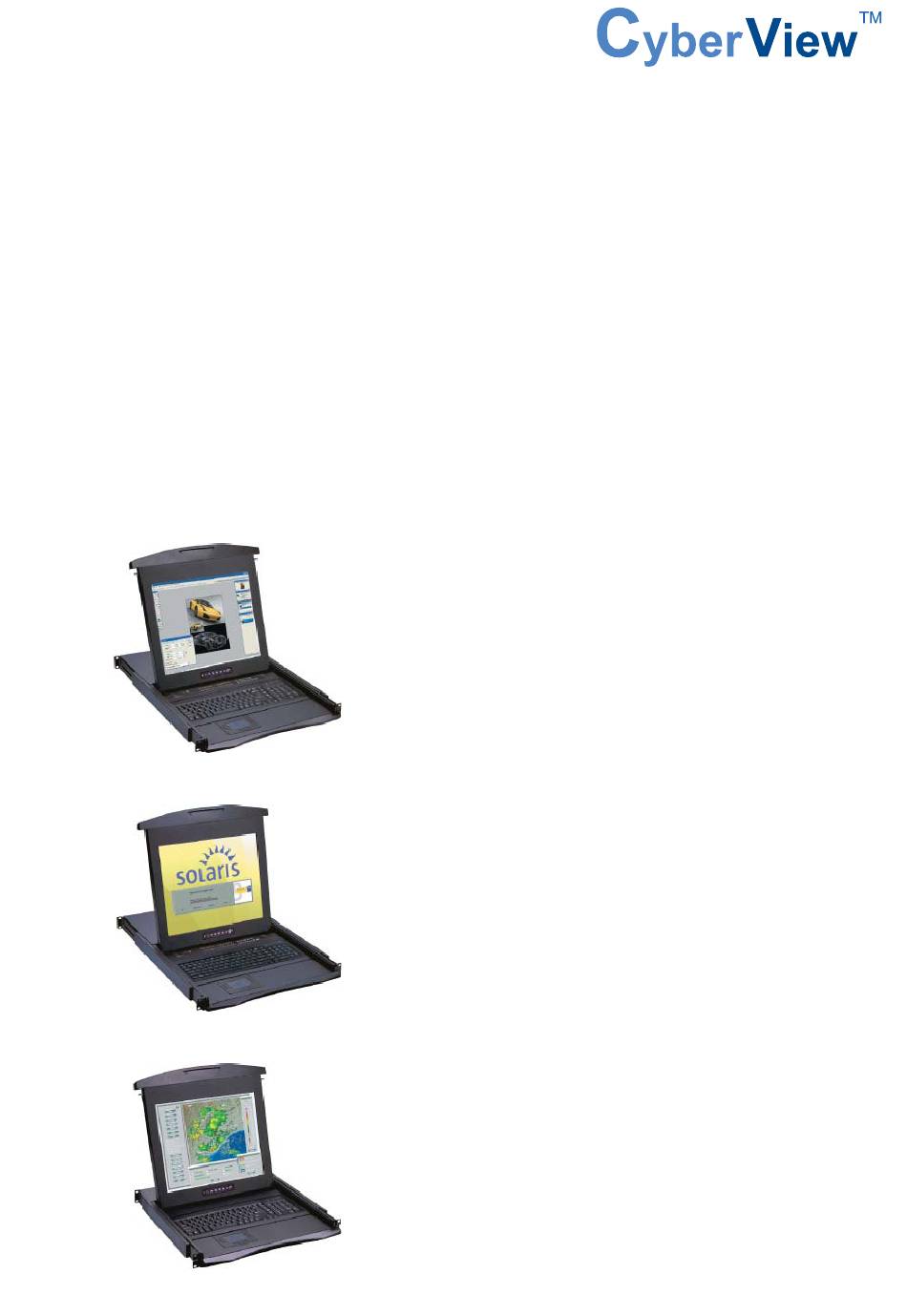

- Page 1 User Manual N Series 1U LCD Keyboard Drawer 17", 19" screen size Models N-117 / 119 Series - With KVM options Models NS-117 / 119 Series - With KVM Options - 1U 17", 19" screen size - Designed for SUN Solaris...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice...............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products............5 Structure Diagram...............5 How to Install “One Man” Installation Slides....6-7 1.10 How to Use The Slides............8 1.11 How to Use “N” Series LCD Keyboard Drawer....9 1.12 NS-117 / 119 (Single console) ......10... - Page 3 Contents Chapter 4 Optional Specifi cation KVM Options..............19 DVI-D Input Option............19 BNC + S-Video Option............19 Audio Option..............20 DC power Options.............20 Chapter 5 Troubleshooting ............21 Chapter 6 Dimensions ...............22...
- Page 4 Blank page...
-
Page 5: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 6: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 7: Package Contents
CB-6 USB 2-in-1 KVM cable x 1 pc (for NS series) CE-6 Combo 4-in-1 KVM cable x 1 pc (for N series) User manual x 1 pc Power cord x 1 pc Auto switch power adapter ( for external power version) x 1 pc... -
Page 8: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. -
Page 9: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM MU-IP1613 / MU-IP1614 / MU-IP1624 Matrix IP Cat6 16 port KVM Matrix Cat6 KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM MU-IP3213 / MU-IP3214 / MU-IP3224 Matrix IP Cat6 32 port KVM M-802 / M-803 / M-804... -
Page 10: How To Install "One Man" Installation Slides
Chapter 1 1.9 How to Install "One Man" Installation Slides Install into rack Rear side Right bracket ■ Attach the left and right mounting bracket to rack 19” mounting rails. ■ Adjust the rear mounting bracket to fi t your rack. ■... - Page 11 Chapter 1 1.9 How to Install “One Man” Installation Slides ■ Attach front left and right mounting ears of the LCD keyboard drawer to vertical mounting rails. ■ M6 screw and cup washer x 2 pcs included. Complete the installation ■...
-
Page 12: How To Use The Slides
Chapter 1 1.10 How to Use the Slides ■ A black arrow release button is located on the outside of each slide. (shown in Figure 1). Figure 1. ■ Pull and hold the black arrow button on either side of the LCD keyboard drawer to unlock. (shown in Figure 2). -
Page 13: How To Use "N" Series Lcd Keyboard Drawer
Chapter 1 1.11 How to Use "N" Series LCD Keyboard Drawer ■ Gently pull the tab toward the front of the LCD shown in Figure 4. Figure 4. Pulling the tab toward the front of LCD. ■ Flip up the LCD to a suitable angle shown in Figure 5. -
Page 14: Ns-117 / 119 (Single Console)
Chapter 1 1.12 NS-117 / 119 (Single console) - Use CB-6 to connect to server via USB interface Figure 7. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.13 NS-117 / 119 (Single console) - Use CB-6 to connect to KVM via USB interface CB-6 KVM Cable Figure 8. -
Page 15: N-117 / 119 / 1417 / 1419 (Single Console) - Use Ce-6 To Connect To Kvm Via Ps/2 Interface
Chapter 1 1.14 N-117 / 119 / 1417 / 1419 (Single console) - Use CE-6 to connect to server via PS/2 interface Figure 9. Example of connecting CE-6 Combo 4-in-1 KVM cable to server via PS/2 interface 1.15 N-117 / 119 / 1417 / 1419 (Single console) - Use CE-6 to connect to KVM via PS/2 interface CE-6 KVM Cable Figure 10. -
Page 16: N-117 / 119 / 1417 / 1419 (Single Console)
Chapter 1 1.16 N-117 / 119 / 1417 / 1419 (Single console) - Use CE-6 to connect to server via USB interface Figure 11. Example of connecting CE-6 Combo 4-in-1 KVM cable to server via USB interface 1.17 N-117 / 119 / 1417 / 1419 (Single console) - Use CE-6 to connect to KVM via USB interface CE-6 KVM Cable Figure 12. -
Page 17: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... -
Page 18: On-Screen Menu
Chapter 2 2.2 On-screen Menu OSD Confi guration Page Image: To enter into the brighness, contrast, color temp, red, green, and blue Geometry: To enter into the auto adjust, H position, V position, phase and clock Video: To enter into the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: To enter into volume, bass, treble, balance, AVL and mute... -
Page 19: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description Form Factor 1U rack mounting on slide-out rails LCD Manufacturer Series Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT 1152 x 900 (Direct) 1152 x 900 (Direct) Max. Resolution 1280 x 1024 1280 x 1024 1280 x 1024 (Native) 1280 x 1024 (Native) - Page 20 Chapter 3 3.2 Keyboard & Mouse For N-117 / 119 / 1417 / 1419 series Supporting layouts N keyboard integrated with touchpad N keyboard integrated with trackball P.16...
-
Page 21: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse For NS-117 / 119 series Supporting layouts NS keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■... -
Page 22: How To Use "Ns" Keyboard
Chapter 3 3.3 How to Use "NS" keyboard ■ NS SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Off mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the NS keyboard:... -
Page 23: Kvm Options
4.3 BNC + S-Video Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks : ■ Package includes 1 x 6ft S-Video cable ■ BNC + S-Video Input is for N series only P.19... -
Page 24: Audio Option
Chapter 4 4.4 Audio Option Speaker 3-in-1 VGA KB mouse Power Audio console port Internal power version External power version Remarks ■ Audio input is 35mm audio plug ■ The speaker is sharing the same power with LCD. 4.5 DC Power Options Model Input rating Input voltage:... -
Page 25: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. Is interference signal appeared on LCD normal when shutting down the computer ? In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered normal. -
Page 26: Chapter 6 Dimensions
Chapter 6 6.1 Dimensions Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 442 x 650 x 44 mm 589 x 856 x 168 mm 16 kg 22 kg N-117 series 17.4 x 25.6 x 1.73"... - Page 27 Blank page...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2010 Austin Hughes Electronics Ltd. All rights reserved. CV-N6-1010V8...
