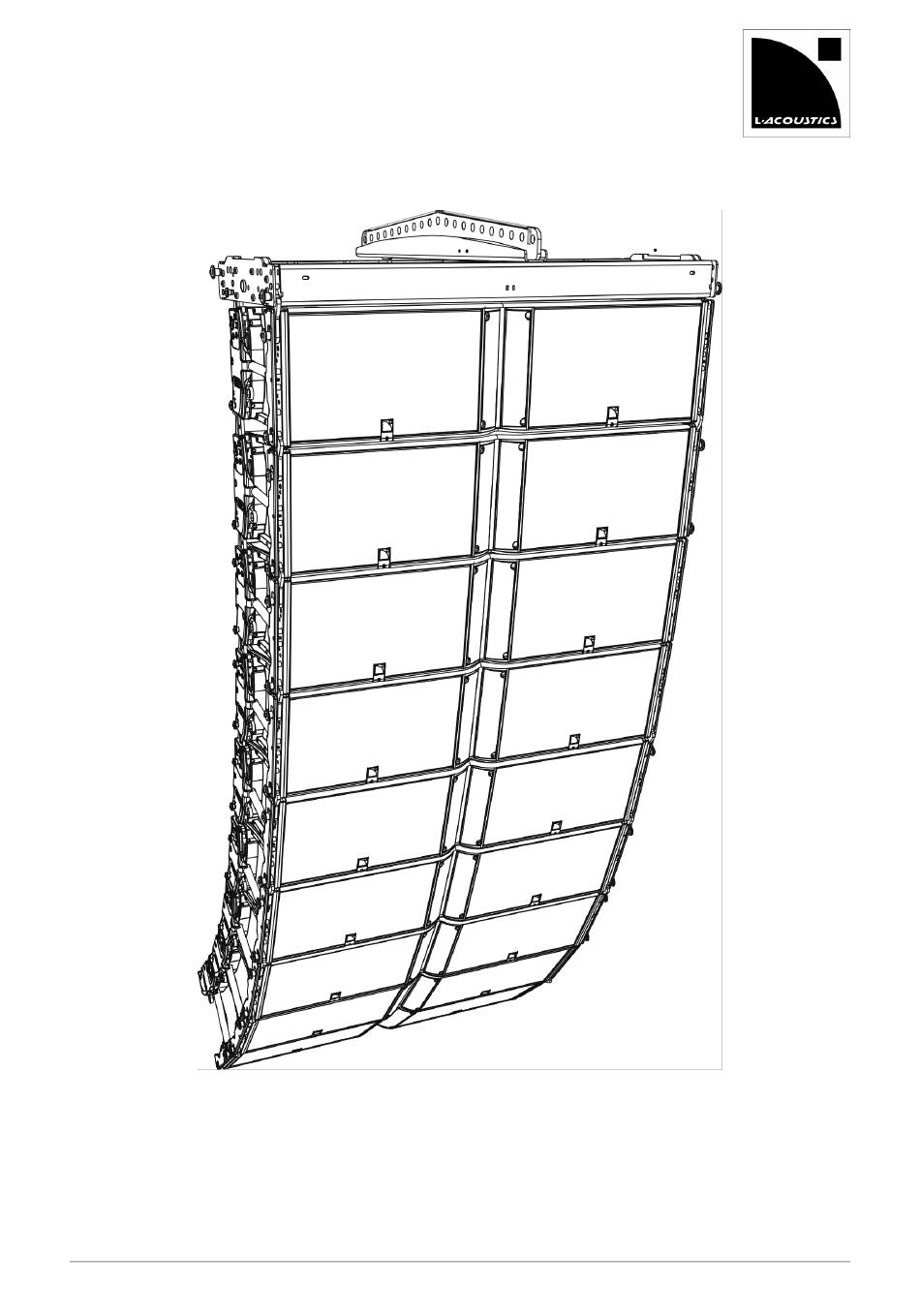

  • Page 1 K2 WST enclosure ® user manual VERSION 1.1 w w w . l - a c o u s t i c s . c o m...
  • Page 2 Follow all SAFETY INSTRUCTIONS as well as DANGER and OBLIGATION warnings ® Never incorporate equipment or accessories not approved by L-ACOUSTICS Read all the related PRODUCT INFORMATION documents before exploiting the system The product information document is included in the shipping carton of the related system component.
  • Page 3: Table Of Contents

    This document contains essential information on using the system properly. Carefully read this document in order to become familiar with the system. As part of a continuous evolution of techniques and standards, L-ACOUSTICS ® reserves the right to change the specifications of its products and the content of its document without prior notice.
  • Page 4: K2 Variable Curvature Wst System

    K1 system has achieved international recognition and is today the prime choice of engineers for the largest stadium tours and outdoor festivals. Its sonic performance, its fully integrated system package and its rider friendliness are considered as the industry benchmarks. With K2, L-ACOUSTICS ®...
  • Page 5: System Components

    2 SYSTEM COMPONENTS The system approach developed by L-ACOUSTICS ® consists in offering a global solution that guarantees the highest and most predictable level of performance at any step of loudspeaker system deployment: modeling, installation, and operation. A complete L-ACOUSTICS ®...
  • Page 6 enclosure ® user manual VERSION 1.0 SB28 K1-SB LA-RAK SPY1 DO.7 LA4X SP.7 DO10 SP10 DO25 DOSUB-LA8 SP25 Soundvision LA Network Manager K2 system components (excluding rigging elements and modulation cables) K2_UM_EN_1.1 w w w . l - a c o u s t i c s . c o m...
  • Page 7: K2 Horizontal Directivity Settings

    3 K2 HORIZONTAL DIRECTIVITY SETTINGS The K2 enclosure features an adjustable horizontal directivity system. Using the adjustable fins, horizontal directivity can be adjusted with four different settings: 110° and 70° symmetric or 90° asymmetric, i.e., 35° 55° or 35° + 55°. A specific K2 preset must be used for each directivity setting.
  • Page 8: Loudspeaker Configurations

    enclosure ® user manual VERSION 1.0 4 LOUDSPEAKER CONFIGURATIONS Line source Deployed as a standalone line source, a K2 system operates over the nominal bandwidth of the K2 enclosure, with an adjustable horizontal directivity. The [K2 70], [K2 90] and [K2 110] presets allow for a reference frequency response in long throw applications. Each preset is dedicated to a horizontal directivity setting.
  • Page 9: Line Source With Low-Frequency Element

    Line source with low-frequency element Deployed as a line source with coupled K1-SB subwoofers, a K2 system operates with augmented LF resources. Two configurations are available:  LF throw: for enhanced LF projection.  LF contour: for reinforced LF contour. 4.2.1 LF throw In this configuration the LF throw capability is...
  • Page 10: Lf Contour

    enclosure ® user manual VERSION 1.0 4.2.2 LF contour In this configuration the LF contour is reinforced and the bandwidth is extended in the low end. Depending on the deployment SPL rejection can be produced. The [K2 70], [K2 90] and [K2 110] presets allow for a reference frequency response in long throw applications. Each preset is dedicated to a horizontal directivity setting.
  • Page 11 K2 line source + coupled K1-SB beside Enclosure  [PRESET]  [K2 70] / [K2 90] / [K2 110] K1-SB  [K1SB_60] Frequency range (-10 dB) 30 Hz – 20 kHz Recommended ratio 1 K1-SB: 3 K2 Optimal distance for coupling 0.5 <>...
  • Page 12: Additional Subwoofer System

    enclosure ® user manual VERSION 1.0 Additional subwoofer system All the configurations described in the previous sections can be deployed with additional K1-SB or SB28 subwoofer enclosures to provide increased sub-low resources to demanding applications. SB28 enclosures are ground-stacked. K1-SB enclosures are flown on the side or behind the system. The available configurations are described below, along with the recommended ratios corresponding to each K2 configuration.
  • Page 13 SB28 subwoofers Standalone LF Throw LF Contour 2 SB28: 3 K2 2 SB28: 1 K1-SB: 3 K2 1 SB28: 1 K1-SB: 3 K2 Enclosure  [PRESET] Grouping subwoofers Place the subwoofer enclosures side by side. SB28  [SB28_60] If not possible, the maximum distance between two adjacent acoustic centers LF extension (-10 dB) must be 2.8 m for an upper frequency limit on 60 Hz.
  • Page 14: Loudspeaker Connection

    The K2 enclosure is equipped with two PA-COM connectors wired in parallel. The IN connector allows receiving the audio signals, whereas the LINK connector allows routing them to another similar enclosure in parallel. Internal pinout for L-ACOUSTICS ® K2 enclosures PA-COM ®...
  • Page 15: Connecting K2 To La4X

    ® 1-2 and 3-4 connectors to the K2 IN  Use a SpeakON -to-CA-COM interface to connect the LA4X SpeakON connector. L-ACOUSTICS does not supply the SpeakON ® -to-CA-COM ® interface. It must be built using two 4-point SpeakOn ®...
  • Page 16: Connecting K2 To La8

    enclosure ® user manual VERSION 1.0 Connecting K2 to LA8 Maximum of 3 enclosures per LA8 A single LA8 amplified controller can drive up to 3 enclosures in parallel. Impedance load 1 enclosure 8 Ω 8 Ω 16 Ω 2 enclosures 4 Ω...
  • Page 17: Connecting K1-Sb Or Sb28 To La8

    Connecting K1-SB or SB28 to LA8 Maximum of 4 enclosures per LA8 1 K1-SB or SB28 can be connected to each output channel on the LA8. Therefore, a single LA8 amplified controller can drive up to 4 enclosures. CARDIOID mode with SB28 Connect the reversed subwoofer to OUT 1.
  • Page 18 enclosure ® user manual VERSION 1.0 Option B ®  Connect an SP cable (SP.7, SP5, SP10 or SP25) to one of the SpeakON connectors of the LA8.  Use an SP-Y1 cable and a CC4FP adapter to split the audio signals into two channels, each one feeding one subwoofer.
  • Page 19: Appendix Apreset Description

    APPENDIX A PRESET DESCRIPTION [K2 70] [K2 90] [K2 110] The [K2 70], [K2 90] and [K2 110] presets allow for a reference frequency response in long throw applications. . Each preset is dedicated to a horizontal directivity setting. Default parameters Loudspeaker Amplifier outputs Channels...
  • Page 20: Appendix Brecommandation For Speaker Cables

    enclosure ® user manual VERSION 1.0 APPENDIX B RECOMMENDATION SPEAKER CABLES Cable quality and resistance Only use high-quality fully insulated speaker cables made of stranded copper wire. Use cables of gauge offering low resistance per unit length and keep the cables as short as possible. The following table provides the recommended maximum length depending on the cable cross-section and on the impedance load connected to the amplifier.
  • Page 21: Appendix Cspecifications

    APPENDIX C SPECIFICATIONS Description 3-way active enclosure, quad-amplified by LA8 Usable bandwidth (-10 dB) 35 Hz - 20 kHz ([K2 70] preset) Maximum SPL 145 dB ([K2 70] preset) Horizontal : 110° / 70° symmetric or 90° asymmetric (35° / 55° or 55° / 35°) Coverage angle (-6 dB) Vertical : dependent upon number of elements and array curvature LF: 2 ...
  • Page 22: K1-Sb

    enclosure ® user manual VERSION 1.0 K1-SB Description Subwoofer enclosure, amplified by LA8 Low frequency limit (‑10 dB) 34 Hz ([K1SB_X] preset) Maximum SPL 143 dB ([K1SB_X] preset) RMS power handling 1200 W 2  15" , weather-resistant, bass-reflex Transducer 4"...
  • Page 23: Sb28

    SB28 Description Subwoofer enclosure, amplified by the LA8 Low frequency limit (‑10 dB) 25 Hz ([SB28_100] preset) Maximum SPL 140 dB ([SB28_100] preset) RMS power handling 1255 W Transducers 2  18" neodymium, weather-resistant, direct radiation, bass-reflex Nominal impedance 4 Ω IN: 1 ...
  • Page 24 Document reference: K2_UM_1.1 Distribution date: December 16, 2013 ® © 2013 L-ACOUSTICS . All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
