INSTALLING THE DRIVER
Installation of the SD WLAN Card Driver to the Pocket PC using
Microsoft Active Sync®
1. Connect your PDA to your computer and make sure Active-Sync® has
established a connection between the two devices.

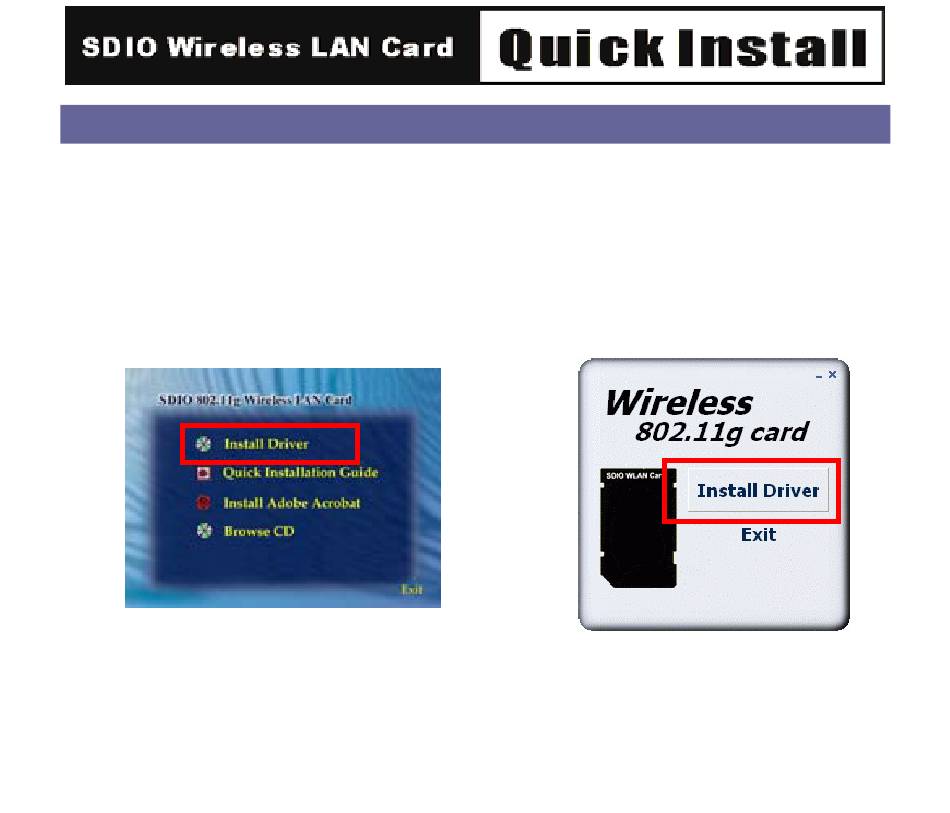

2. Insert the included CD-ROM to your PC. The main screen will appear,
click Install Driver to start driver installation.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Abocom SDW11G
Summary of Contents for Abocom SDW11G
- Page 1 INSTALLING THE DRIVER Installation of the SD WLAN Card Driver to the Pocket PC using Microsoft Active Sync® 1. Connect your PDA to your computer and make sure Active-Sync® has established a connection between the two devices. 2. Insert the included CD-ROM to your PC. The main screen will appear, click Install Driver to start driver installation.
- Page 2 Note: Do not insert the SD WLAN Card into the card slot of your PDA until the Driver installation has been performed. 3. Click “YES” to continue the installation. 4. Click “OK” to complete the driver installation. ACCESSING THE WLAN UTILITY 1.
- Page 3 CONFIGURING WLAN UTILITY Select an available AP or router from the list and tap Connect to make a connection.
- Page 4 Wireless tab Wireless Network Select an available network device from the list and tap Connect. Network to access Select the type of network access from the pull-down list. All available: A group of wireless devices communicating with both access points and network adapters. Only access points: A group of wireless devices...
- Page 6 Network Adapters tab Tap Work or The internet from My network Card connects to the pull-down menu. Work: Connects to the network in your office. The internet: Connects to your ISP at home. Tap an adapter from the list to Tap an adapter to modify enter its configuration screen.
- Page 8 IP Address tab Use server-assigned IP address To use DHCP, tap User assigned-IP Address. The Wireless Router will act as a DHCP server. An IP Address will be obtained from the Wireless Router.
- Page 9 Use specific IP address IP Address: Enter the IP address (within the range of the wireless router’s IP address, for instance, if the IP address of the router which wish connect 192.168.1.254, you may enter the IP address here from 192.168.1.1 to 192.168.1.253 ).
- Page 11 Name Servers tab Enter the IP address of your ISP's server, which translates the names of websites into IP addresses. The secondary IP address of your ISP’s server. Alt DNS The Windows Internet Naming Service (WINS) WINS converts NetBIOS names to IP addresses. If using a WINS server, please enter that server’s IP address.
- Page 12 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
