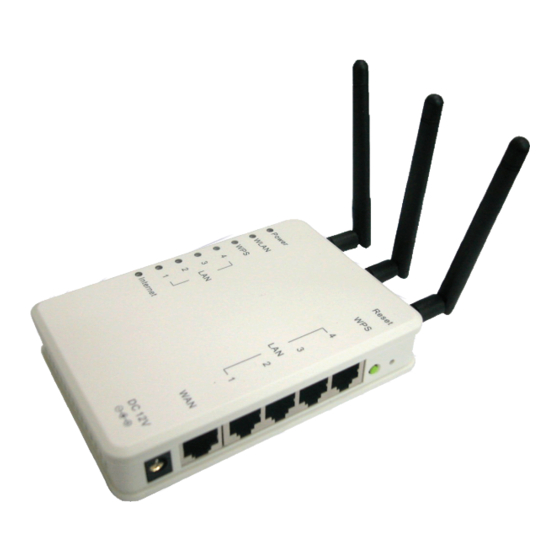

Abocom WR5201 Quick Installation Manual

802.11n/b/g Wireless
Broadband Router
1. One Wireless n/b/g Broadband Router.
2. One Power Adapter.
3. One Ethernet Network Cable.
4. One Set-up CD-ROM with User Manual.
5. One Quick Installation Guide.
1 1

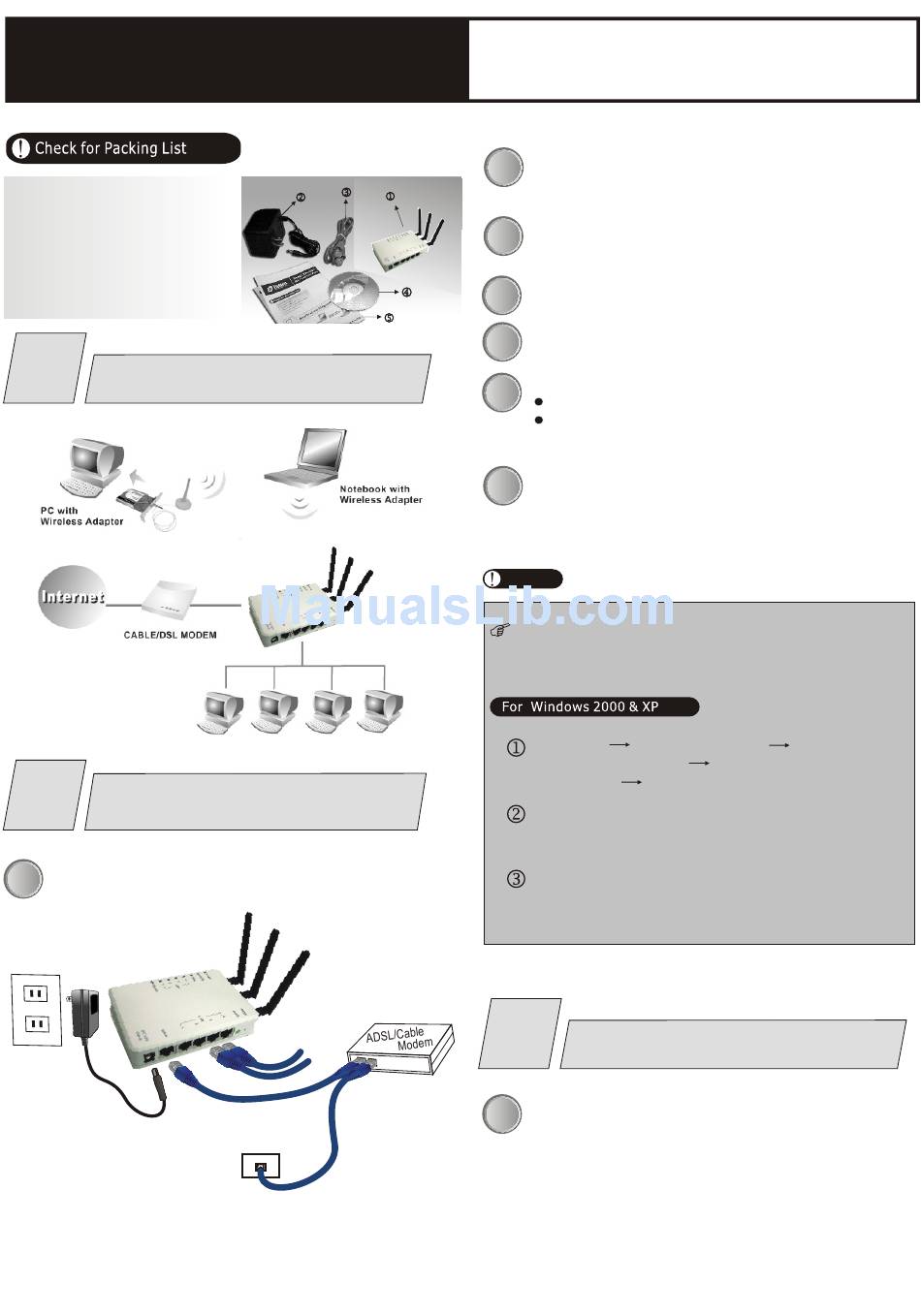

Application Diagram

2 2
Connect the 802.11n
Wireless Router
Before you begin, ensure that the Wireless Router, the
1
DSL/Cable modem supplied by your IP Provider, and PC are
turned off.
Power
/
b
To PCs
To Internet
Existing Connection
Subscribed line

Quick Installation Guide

Connect your DSL/Cable Modem to the Internet port on the
2
Wireless Router using a standard RJ-45 Ethernet cable.
Connect an Ethernet cable to one of the LAN ports on the
3
Wireless Router to the Ethernet port on your PC.
4
Turn on the DSL/Cable modem first.
5
Then turn on your Wireless Router.
Check the LEDs:
6
The Power, Internet, and WLAN LEDs should be ON.
For each active LAN (PC) connection, the LAN Activity
LEDs (1-4) should be ON.
7
Turn on your PC.
Notes
Before setting up the Wireless Router, make sure your PCs
are configured to "Obtain an IP (or TCP/IP) address
automatically."
Click Start
Internet Connections
Connection
/
g
Make sure the box next to Internet Protocol (TCP/IP) is
checked. Click the Internet Protocol (TCP/IP) and click
the Properties button.
Select "Obtain an IP address automatically." Select
"Obtain DNS server address automatically." Then click
OK to complete the PC configuration.
3 3
For Windows 2000 and XP users, your computer should
8
obtain an IP address automatically from the Wireless
Router's DHCP server, after you've done the above steps.
Click Control Panel
(Right-click on) Local Area
Properties.

Router Configuration

Network and
