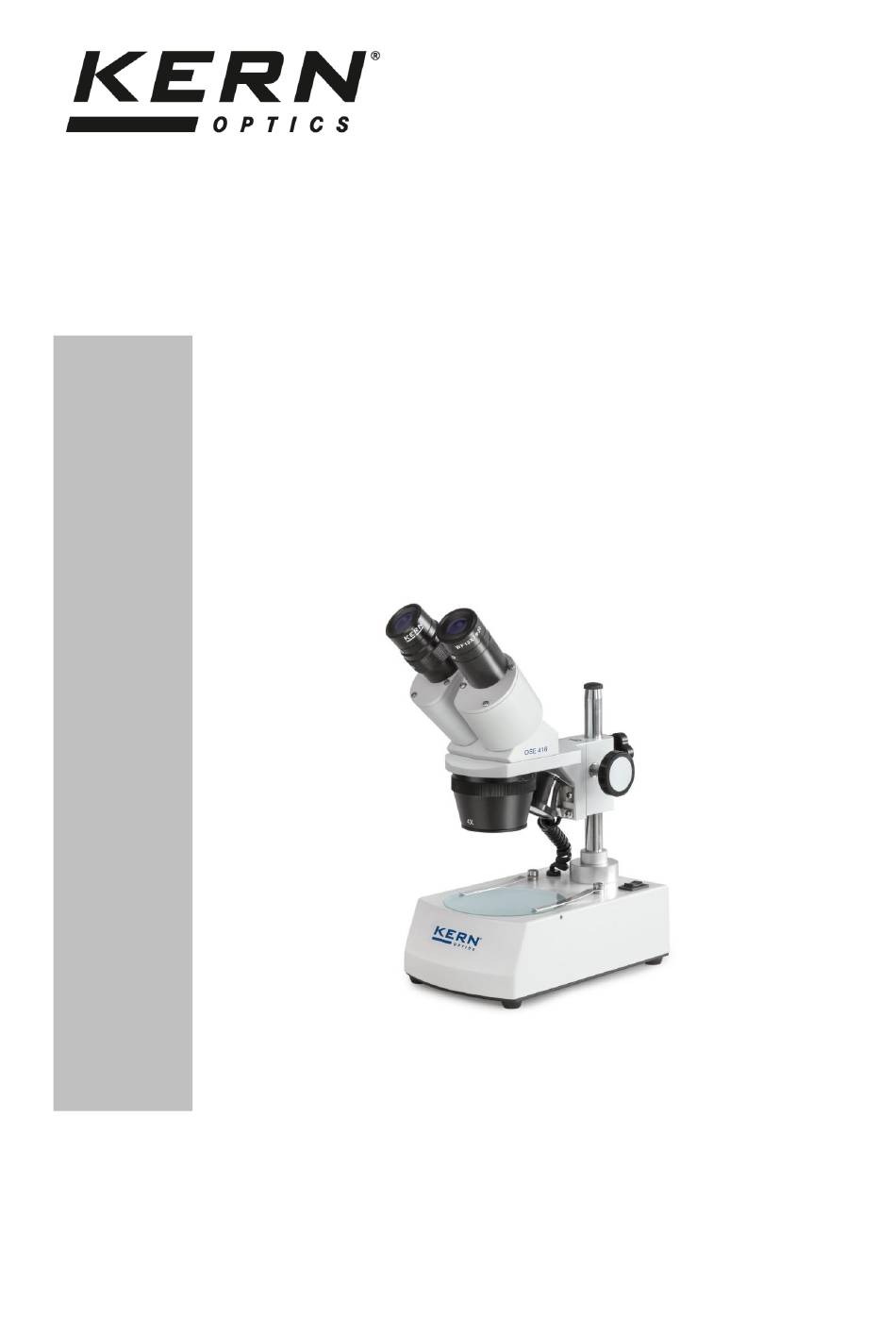

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com User instructions Stereo microscope KERN OSE-4 OSE 410, OSE 411, OSE 413 OSE 414, OSE 416, OSE 417 Version 1.0 01/2015 OSE-4-BA-e-1510...
-
Page 3: Table Of Contents
KERN OSE-4 Version 1.0 01/2015 User instructions Stereo microscope Table of contents Before use ..................3 General notes ..........................3 Notes on the electrical system ....................3 Storage ............................4 Maintenance and cleaning ....................... 5 Nomenclature ................6 Basic data ..................7 Assembly .................. -
Page 4: Before Use
1 Before use 1.1 General notes You must open the packaging carefully, to make sure that none of the accessories in the packaging fall on the floor and get broken. In general, microscopes should always be handled carefully because they are sensitive precision instruments. -
Page 5: Storage
1.3 Storage You should ensure that the device is not exposed to direct sunlight, temperatures which are too high or too low, vibrations, dust or a high level of humidity. The ideal temperature range is between 0 and 40°C and a relative humidity of 85% should not be exceeded. -
Page 6: Maintenance And Cleaning
Special cleaner for optical lenses Special optical cleaning cloths Bellows Brush When handled correctly and checked regularly, the microscope should give many years of efficient service. Should repairs still be necessary, please contact your KERN dealer or our Technical Department. OSE-4-BA-e-1510... -
Page 7: Nomenclature

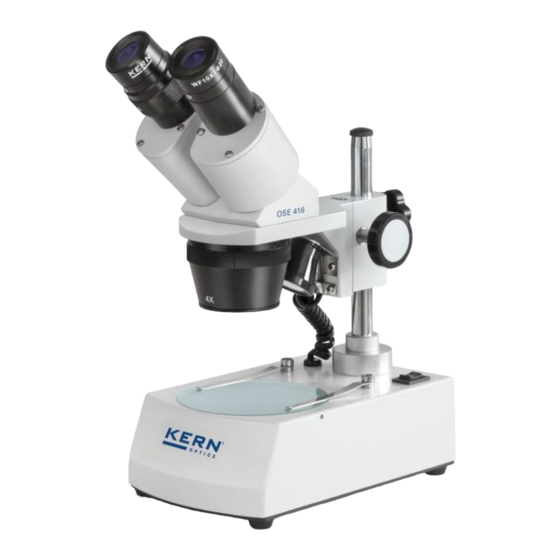

2 Nomenclature Using the OSE 416 as an example (with reflected and transmitted light illumination) OSE-4-BA-e-1510... -
Page 8: Basic Data
195 x 162 x 345 mm Standard configuration Model Tube Eyepiece Field of view Objective Stand Illumination KERN OSE 410 Binocular WF 10x Ø 20 mm Ø 20 1x / 3x Pillar OSE 411 Binocular WF 10x Ø 20 mm Ø... -
Page 9: Assembly
4 Assembly The first step is to position the microscope stand on a firm, level surface. The holder with the head is already on pillar of the stand, but you must always check whether it is fixed securely and that it is in the correct position (preferably centrally and facing to the front). - Page 10 Assembled stereo microscope OSE-4-BA-e-1510...
-
Page 11: Operation And Functionality
5.3 Adjusting the magnification As the KERN OSE-4 series covers stereo microscopes (without zoom), we will describe how to set the magnification using the integrated and rotating objective. For the devices in this series, you can select between two different magnification factors at any time. -
Page 12: Dioptre Adjustment And Focussing
5.4 Dioptre adjustment and focussing A special feature of stereo microscopes is that they are fitted with an optical unit which has a relatively high depth of field. In order to be able get the most benefit from this feature, each user must synchronise the focussing mechanisms for themselves. The steps to do this are described in the following section. -
Page 13: Adjusting The Stand
5.5 Adjusting the stand Torque of the focus wheels You can adjust the torque of the focus wheels by turning the ring which is fitted along the axis of the lefthand focus wheel. To do this you need a special wrench which is included with delivery. The ring has holes which the wrench can hook into, so that you can then turn it in the desired direction. -
Page 14: Using Eye Cups / High Eye Point Eyepieces
5.6 Using eye cups / High Eye Point eyepieces The eye cups supplied with the microscope can basically be used at all times, as they screen out intrusive light, which is reflected from light sources from the environment onto the eyepiece, and the result is better image quality. But primarily, if eyepieces with a high eye point (particularly suitable for those who wear glasses) are used, then it may also be useful for users who don’t wear glasses, to fit the eye cups to the eyepieces. -
Page 15: Lighting Control
5.7 Lighting control (OSE 413, OSE 414, OSE 416, OSE 417) OSE 413, OSE 414 (reflected light) To operate the reflected light, there is a main switch on the right, rear corner of the stand base surface which you can use to switch the lighting on and off. The light intensity cannot be adjusted. -
Page 16: Using External Illumination Units
The lighting units which are suitable for devices of the OSE-4 series, are goose neck lighting units (see figure). These are available as LED as well as halogen versions and also have an on/off switch or different controller. -
Page 17: Optical Data
● OZB-A4805 black-white / Ø95 mm ● ● OZB-A4806 External For information on external lighting units, please see the Kern Optics main catalogue, from page 68 illumination and visit our website www.kern-sohn.com ● = Standard configuration ○ = Option OSE-4-BA-e-1510... -
Page 18: Trouble Shooting
8 Trouble shooting Electrical system Problem Possible causes The lighting unit (if fitted) cannot be The power cable is either not connected or switched on not connected correctly The bulb is not fitted The bulb has blown The fuse has blown The brightness control is set to the lowest level The bulb has blown... -
Page 19: Service
The device may only be opened by trained service engineers who have been authorised by KERN. 10 Disposal The packaging is made of environmentally-friendly materials, which you can dispose of at your local recycling centre.
