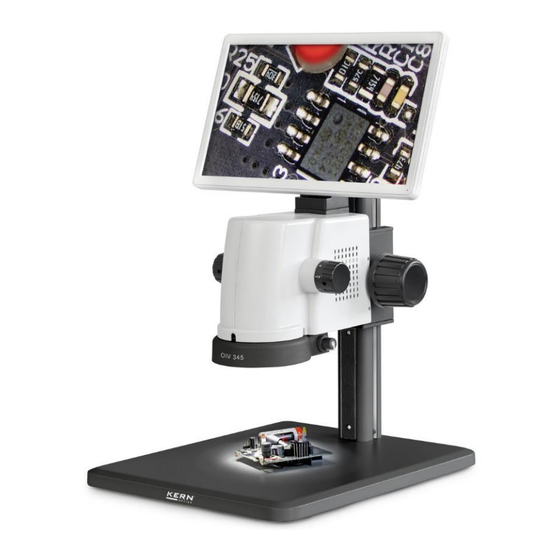

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com Instruction manual video microscope KERN OIV-3 OIV 345 Version 1.0 03/2023 OIV-3-BA-e-2310...
-
Page 3: Table Of Contents
KERN OIV-3 Version 1.0 01/2023 Operating Instructions Video Microscope Table of contents Before use ..................3 General notes ........................... 3 Notes on the electrics ......................3 Storage ............................4 Maintenance and cleaning ....................... 5 Nomenclature ................6 Basic data ..................7 Assembly .................. -
Page 4: Before Use
If you are using an extension cable, then the mains cable you use must be grounded. When carrying out any procedures whereby you come into contact with the electrical system of the device, such as, for example, changing the LED lamp, only carry out these procedures when the power is disconnected. OIV-3-BA-e-2310... -
Page 5: Storage
When the microscope is not in use, it is best to cover it with the dust cover provided. Dust or dirt inside the optics of a microscope can cause irreversible malfunctions or damage in many cases. Accessories consisting of optical elements, such as additional objectives, are preferably stored in a drying box with desiccant. OIV-3-BA-e-2310... -
Page 6: Maintenance And Cleaning
• Special optical cleaning cloths • Bellows • Brush When handled correctly and checked regularly, the video microscope should give many years of efficient service. Should repairs still be necessary, please contact your KERN dealer or our Technical Department. OIV-3-BA-e-2310... -
Page 7: Nomenclature
Housing for microscope Zoom adjustment wheel and camera Focus wheel LED ring light Dimmer for lighting Microscope stand MicroSD card slot (back side) Power indicator (LED) USB port (2x) HDMI interface Power connection On/Off switch Microscope On/Off switch Lighting OIV-3-BA-e-2310... -
Page 8: Basic Data
12 inch Screen release 1920x1080 HD Camera resolution 5 MP Sensor CMOS 1/2.8" Data storage External via USB (Max 128 GB) Net weight 4,4 kg Dimension product WxDxH 320x260x450 mm Gross weight 6 kg Dimension packing WxDxH 420x390x250 mm OIV-3-BA-e-2310... -
Page 9: Assembly
(2x) on the outside of the housing using the Allen key provided. Power connection Plug the power cable into the connector on the microscope. Be careful not to twist or bend the power cable. Only use the original adapter supplied. OIV-3-BA-e-2310... -
Page 10: Operation
(0.7x-4.5x) can be changed using the Zoom adjustment wheel (5). Turn the adjustment wheel to the maximum magnification. Focus the image using the focus wheel (6). Repeat the process if necessary. The max/min parfocality is already optimally preset upon delivery. OIV-3-BA-e-2310... -
Page 11: Connections And Interfaces
On the back of the device is a slot for a MicroSD memory card. The port provides an additional option for storing data (max. 128 GB). Use a pointed object to push the MicroSD memory card into the card slot until it is fully engaged. OIV-3-BA-e-2310... -
Page 12: Software
6.3 Image Tools (Screen Tools) Functions (from left to right): Zoom in, Zoom out, Flip image vertically, Flip image horizontally, Freeze image, Monochrome, Compare 2 images (Compare an image from external memory with the OIV-3-BA-e-2310... -
Page 13: Parameter Settings
In this menu you can adjust the parameters of the live image such as contrast, saturation, brightness, sharpness and noise reduction. To do this, move the corresponding bars with the mouse. The change is immediately visible on the live image. OIV-3-BA-e-2310... -
Page 14: System Settings
JPG format is preset, BMP format takes a little longer due to the file size). In live image mode, you can use the mouse wheel to quickly adjust the digital zoom (enlarge or reduce). By pressing and holding the mouse wheel, you can move the screen section accordingly. OIV-3-BA-e-2310... -
Page 15: Measuring Function
In this menu there are different measuring tools to choose from. If you move the mouse pointer over a measuring tool, the designation is displayed. You can delete the trace, delete a single image, delete the screenshot of the measured image, or export the data, etc. OIV-3-BA-e-2310... -
Page 16: Calibration Setting
In the "Measurement" property, the user can select the width and the color of the graphic line and set the size of the font color of the measurement information. OIV-3-BA-e-2310... -
Page 17: Optional Equipment
The LED light is burned out. lighting. Use a suitable The LED light has The voltage is too high. external power suddenly burned out. adapter. The illumination Use a suitable brightness is not external power The voltage is too low. sufficient. adapter. OIV-3-BA-e-2310... -
Page 18: Service
The device may only be opened by trained service technicians authorized by KERN. 10 Disposal The packaging is made of environmentally friendly materials that you can dispose of at local recycling points.
