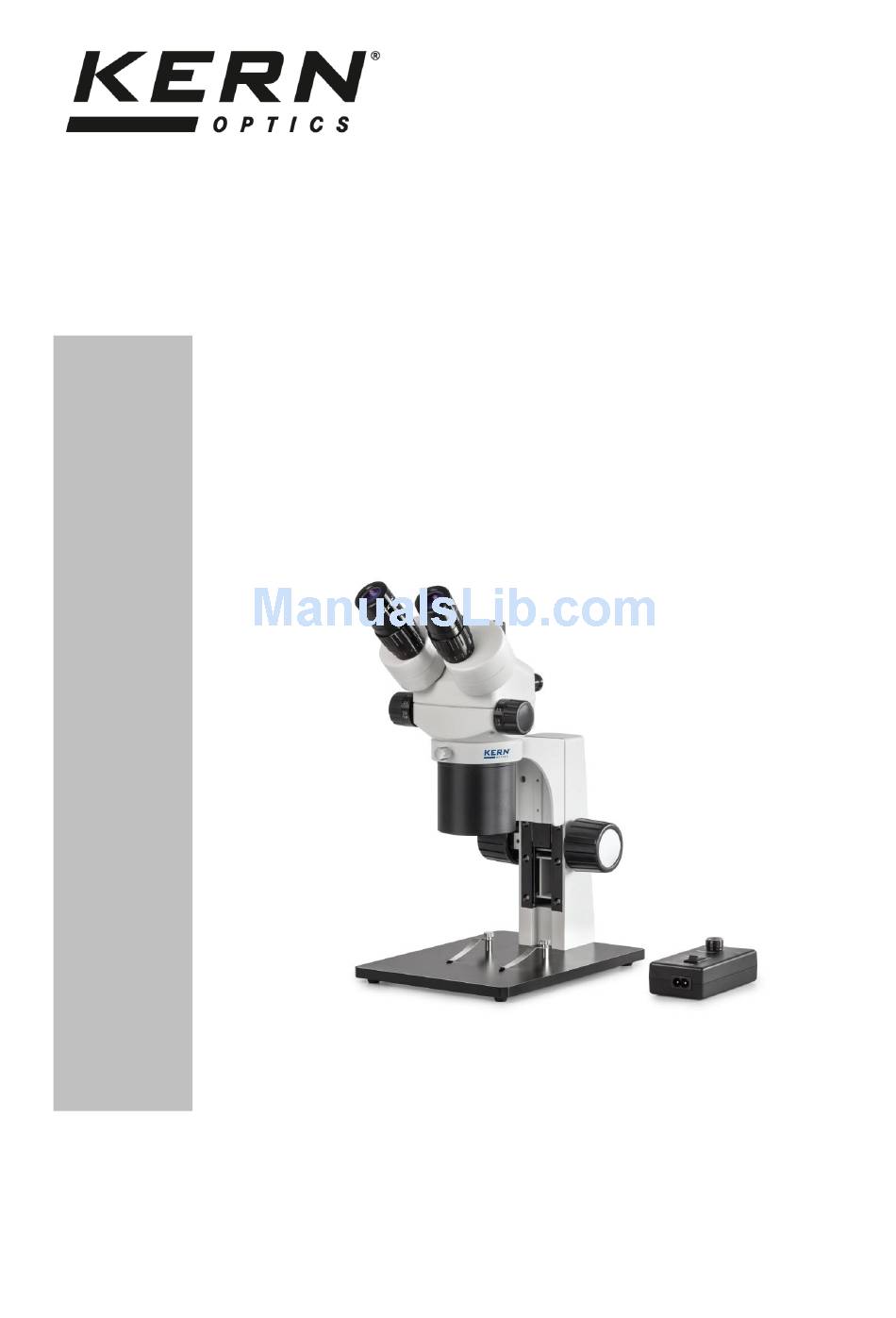

- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com User instructions Stereo zoom microscope KERN OZC-5 OZC 583 Version 1.0 01/2015 OZC-5-BA-e-1510...
-
Page 3: Table Of Contents
KERN OZC-5 Version 1.0 01/2015 User instructions Stereo zoom microscope Table of contents Before use ..................3 General notes ..........................3 Notes on the electrical system ....................3 Storage ............................4 Maintenance and cleaning ....................... 5 Nomenclature ................6 Basic data ..................8 Assembly .................. -
Page 4: Before Use
If you are using an extension cable, then the mains cable you use must be earthed. When carrying out any procedures whereby you come into contact with the electrical system of the device, such as, for example, changing the bulb, only carry out these procedures when the power is disconnected. OZC-5-BA-e-1510... -
Page 5: Storage
In most cases, if dust and dirt gets inside the optical unit of a microscope this can cause irreversible errors or damage. The best way to store accessories which consist of optical elements, such as, for example, eyepieces and objectives, is in a dry box with desiccant. OZC-5-BA-e-1510... -
Page 6: Maintenance And Cleaning
Special cleaner for optical lenses Special optical cleaning cloths Bellows Brush When handled correctly and checked regularly, the microscope should give many years of efficient service. Should repairs still be necessary, please contact your KERN dealer or our Technical Department. OZC-5-BA-e-1510... -
Page 7: Nomenclature
2 Nomenclature OZC-5-BA-e-1510... - Page 8 Side view of the microscope head OZC-5-BA-e-1510...
-
Page 9: Basic Data
8,5 kg Net weight 6,6 kg Standard configuration Model Tube Eyepiece Field of view Objective Stand Illumination KERN Zoom Ø 12,78 – 3,5 1,8x – 6,5x OZC 583 Trinocular HSWF 10x Ø 23 mm Arm curved 2W (Reflected) (Coaxial) OZC-5-BA-e-1510... -
Page 10: Assembly
The eye cups supplied with the microscopes can be fitted to the eyepieces. (see section 5.6). You can fit a C-mount adapter to the appropriate connection point on the top of the microscope head. This enables you to fit and use digital cameras (remove protective cap first) (see section 5.9). OZC-5-BA-e-1510... - Page 11 Assembled stereo zoom microscope OZC-5-BA-e-1510...
-
Page 12: Operation And Functionality
As soon as the lefthand and righthand visual fields exactly overlap each other, this is the correct interpupillary distance. 5.3 Adjusting the magnification As the KERN OZC-5 series are stereo zoom microscopes, then you adjust the magnification using the two zoom adjustment wheels on the lefthand and righthand side of the microscope head. -
Page 13: Dioptre Adjustment And Focussing
11. Then look through the left eyepiece with the left eye and use the lefthand dioptre adjustment ring to also adjust the optimum focus of the object. 12. In this way, the object being observed will be in focus at any zoom setting. OZC-5-BA-e-1510... -
Page 14: Adjusting The Stand
On one hand, this function can help to make it easier to adjust the focus and on the other hand it can prevent the microscope head from slipping down unintentionally. In this way you can avoid possible damage which could occur if the objective lens and the object being observed should collide. OZC-5-BA-e-1510... -
Page 15: Using Eye Cups / High Eye Point Eyepieces
In order to maintain hygiene, we would therefore recommend that you clean the eye cups regularly (e.g. with a damp cloth). Eye cups High Eye Point eyepiece (identified by the glasses symbol) OZC-5-BA-e-1510... -
Page 16: Lighting Control
5.7 Lighting control For the Devices of the OZC-5 series there is the usage of an external power adapter needed. If the power connection is established, you can turn on the incident lighting by using the on/off switche of the control device (see figure). -
Page 17: Using External Illumination Units
The lighting units which are suitable for devices of the OZC-5 series, are goose neck lighting units (see figure). These are available as LED as well as halogen versions and also have an on/off switch or different controller. -
Page 18: Fitting And Adjusting A Camera
5.9 Fitting and adjusting a camera You can connect special microscope cameras and reflex cameras to trinocular devices in the OZC-5 series, so that you can digitally record images or sequences of objects being observed. The connection for this is on the top side of the microscope head (see figure above). - Page 19 The image which is shown on the camera connected to the device can often have a different level of focus compared with the image on the eyepiece. In order to be able to bring both images into focus, the focus can be adjusted by those adapters when turning the attached black plastic ring. OZC-5-BA-e-1510...
-
Page 20: Using Additional Accessories
A user guide is included with the delivery of each angle table which contains the precise instructions on how to fit it. We strongly recommend that you follow these instructions closely, to make sure that you will be able to use the angle table without problems. OZC-5-BA-e-1510... -
Page 21: Changing The Bulb
5.11 Changing the bulb Devices from the OZC-5 series with lighting units are all fitted with LED bulbs. Due to the long service life of an LED lighting system, for these microscopes it will not be necessary to simply change a bulb. -
Page 22: Features
Dimensions WxD 180 x 175 mm, ○ OZB-A5782 Travel: 100x86mm, for reflected light External For information on external lighting units, please see the Kern Optics main illumination catalogue, from page 68 and visit our website www.kern-sohn.com ● = Standard configuration ○ = Option... -
Page 23: Trouble Shooting
The torque of the focus wheels is set too high The microscope head slips down The torque of the focus wheels is set too low while you are viewing the object Eyes get tired easily The dioptre adjustment is not correct The brightness adjustment is not correct OZC-5-BA-e-1510... -
Page 24: Service
The device may only be opened by trained service engineers who have been authorised by KERN. 10 Disposal The packaging is made of environmentally-friendly materials, which you can dispose of at your local recycling centre. - Page 25 NOTES __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ OZC-5-BA-e-1510...
