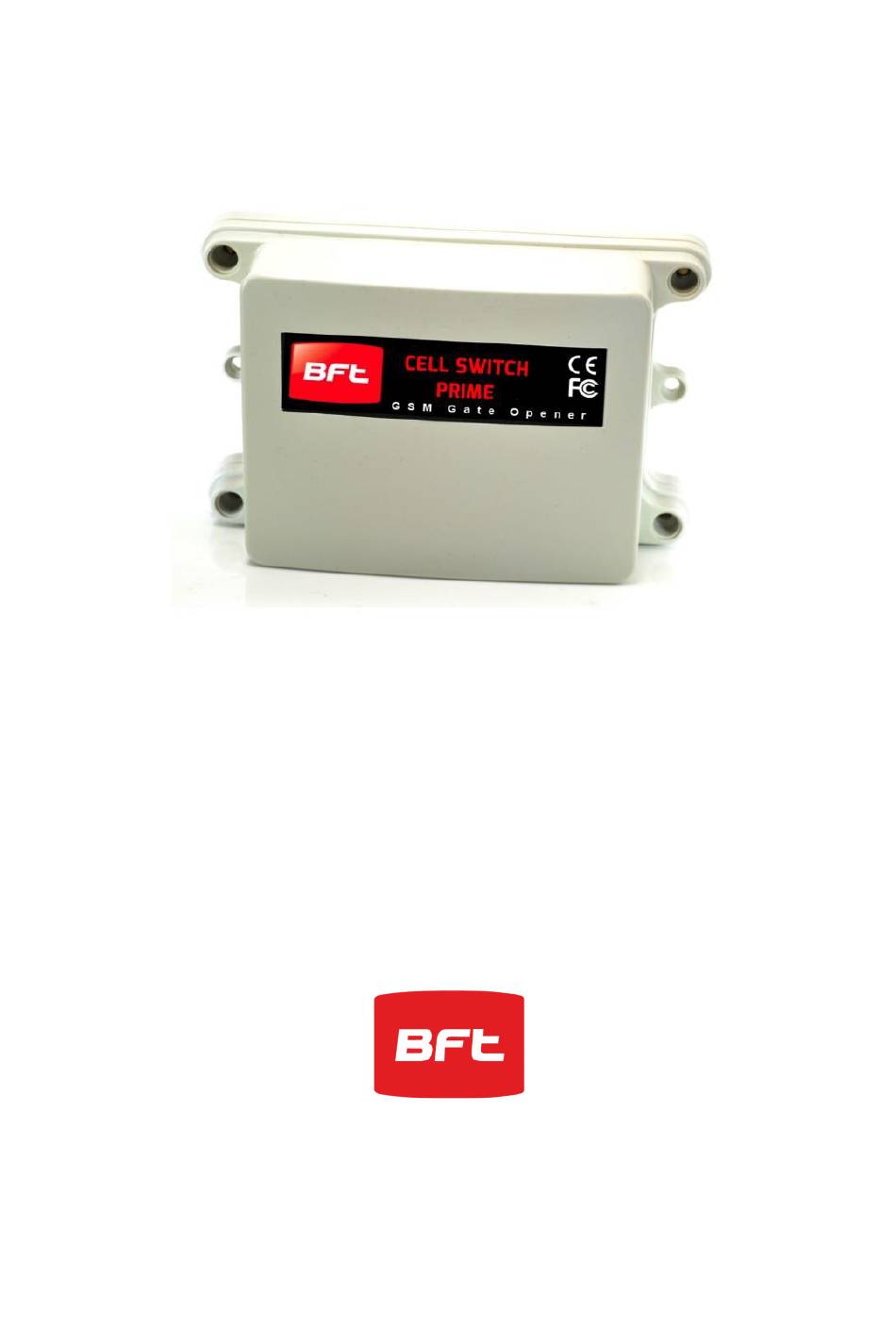

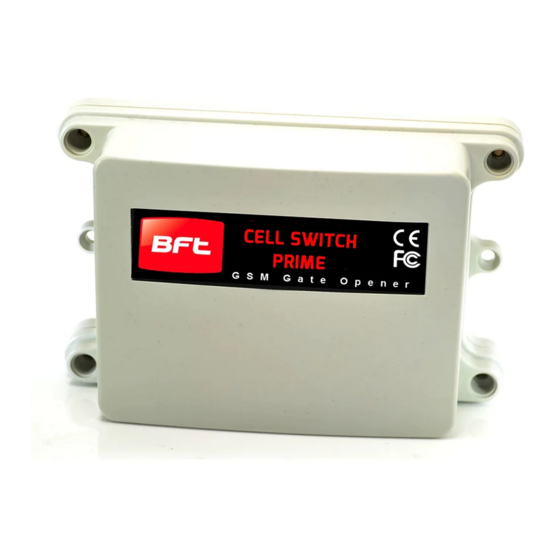

  • Page 1 Installation & User Manual For Cell Switch Prime GSM Cellular Gate opener and GSM alarm signalling device. BFT Americas...
  • Page 2: Table Of Contents

    Contents …………….Pg 3 Overview of system …………….Pg 3 Site Survey …………….Pg 3 SIM card …………….Pg 3 Power …………….Pg 4 Inserting the SIM card …………….Pg 4 Connections on the GSM Controller …………….Pg 5 Output Connections example …………….Pg 5 Notification Feature …………….Pg 5 Powering Up …………….Pg 6 Programming...
  • Page 3: Overview Of System

    Overview of System Please read this entire manual before attempting to install this system. This system should only be installed by a professional automatic gate installer or access control specialist dealer. It is recommended that the system be set up, configured, commissioned and tested on a workshop bench before taken to site for installation.
  • Page 4: Inserting The Sim Card

    To avoid such problems it is recommended (and is good practice) to locate the power supply as close to the device as possible. This avoids power cable noise and interference and enhances the lifetime of the product. Inserting the SIM card Note: This unit is a dual 3G/4G system, operating on either 3G or 4G network frequencies.
  • Page 5: Output Connections Example

    Output Connections Example Electric Gates Relay 1 Relay 2 Start Gate controller (not supplied)12v dc Magnetic lock Use 24v dc PSU Other device Output 2 Output 1 e.g. exit switch This example shows relay 1 connected to a gate motor controller for vehicle gates, and output 2 connected to a magnetic lock for a door or pedestrian gate.
  • Page 6 Programmer app. It will make programming much easier. (You can search store, or scan QR code below) Note: You may notice the app “BFT Cellbox Prime” on the store. This is for the home owner. Installers should install the BFT Cellbox Programmer app.
  • Page 7 Programming a Brand-New Install Press SETTINGS to reveal the screen shown. This screen will store details for the client. Enter name or site name for customer. Enter INTERCOM SIM phone number. Default Engineer’s and user`s pass codes. These can be changed later. Now you are ready to begin programming! P a g e...
  • Page 8: Programming

    Programming an EXISTING Install 1.Go to MORE>CLIENT LIST to reveal the screen shown. 2.Press and HOLD to select the desired client. 3.Iphone users press the info symbol. Android users press and hold the client, and then press upload to begin programming. Now you are ready to begin programming! Programming Now that you have either entered a new client, or selected an existing client from the client list,...
  • Page 9 Step 1: Check Reception Go to MORE>INFO & press the reception check button. On Android the app will automatically send a SMS string (*20#) to the intercom. On iphone, users will be taken to their SMS screen to confirm before sending the string. The intercom should then reply with a signal level between 1 and 31.
  • Page 10: Programming As An Alarm Dialling Device

    Programming as an Alarm Dialler Device. 1.Press the SINGLE home icon for a 1 button system, or MULTI for a 10 button system. 2. Simply enter cell phone numbers and/or landline phones which the intercom is to call when the call button is pressed. (10 button model please enter button number).
  • Page 11 The unit should now be able to call users or have Caller ID access depending on the desired use. Now you may wish to program additional features for the client. Note many of the features below are for other devices that we manufacture including intercoms, however some of the features apply to this device.
  • Page 12 Dialling Times & Talk Time Change ringing times on each number to avoid voicemail picking up a call on un-answered call so the unit can roll over to the next number. Note: Default 20 secs (includes 5-8 sec connection time). Dialling time for first number (default 20 secs) Dialling time for second number (default 20 secs) Dialling time for third number (default 20 secs)
  • Page 13 Info TIP: Iphone users will be taken to SMS screen to confirm message. Android devices will auto send the SMS. Check signal strength Check stored phone numbers Check relay status Check who opened the gate, when it was opened and by what method P a g e | 13...
  • Page 14 SIGNAL STRENTH Will reply with signal range 1-31 Should be higher than 10. STORED NUMBERS O=Dial out number. I=Dial IN Caller ID number. RELAY STATUS OPEN – Shows status of the input terminals called STATUS on the intercom, can be used with a limit switch.
  • Page 15 Pass Codes CAUTION: Take care when changing pass codes. There are 2 levels of 4-digit code (both must be different): 1. Engineers/Programmers code (default 9999) 2. Access/user code (default 1234) You may wish to change both from their defaults for security. Restore the app to using default codes (does not restore the intercom) Enter new programmers code (default 9999)
  • Page 16 Notifications This feature is commonly used to allow one home user to receive SMS alerts each time the INTERCOM is used to trigger the gates and grant access. Quick Enable / disable this feature Enter the phone number to receive the SMS alert and press SAVE Enter text which you want the user to receive when access is granted, then press SAVE...
  • Page 17 10. Client list on iphone The client list allows you to save sim phone number, customer name and pass codes for all your installs. Press to Press to select Client SAVE after editing Swipe to delete Press to load details &...
  • Page 18 11. Clock Sync The unit has an internal time clock counter, which reads the time from an incoming SMS message, and uses this to calibrate its time clock. For power failure events, this feature allows the unit to send a SMS to itself after a power failure.
  • Page 19 Do not disturb This feature allows the alarm input on the device to be active during pre-set times, and ignore button presses all other times. Use this screen to set the ACTIVE times and days for the button. Quick enable/disable button Select start and finish times for the button to work (24hr format, no spaces or colon.
  • Page 20: Complete List Of Parameters

    Complete list of parameters The table below show the complete list of features. Changing pass codes 9999#01????# Change programming password 9999 Change access control password (SMS control of relays, or 9999#02????# non-stored numbers can call intercom & enter code to 1234 activate output 1).
  • Page 21 *23# Sends SMS messages of the last 20 events. Notifications 9999#80X# X=1 to disable. X=2 to enable. 9999#78XXX# X=phone number to send notifications to. (*=delete number) X=text to send to the receiving phone e.g. “gate opened” 9999#79text# Automatic Time Clock Trigger Times X=1,2.3 (trigger, latch, unlatch relay 1) 4,5,6 (relay 2) 1234#X# Day = days of the week (mon,tue,wed,thu,fri,sat,sun)
  • Page 22: Troubleshooting

    Troubleshooting guide Q. The unit will not power up. No LEDs on. A. Check alarm or CAT5 cable has not been used to power the device. If it has, the warranty will be void. Please remove and replace as per instructions. Q.
  • Page 23: Change History

    Change History Key: H = Hardware PCB version S = Software version Reason for change 4G versions available, prime6 level software. P a g e | 23...
