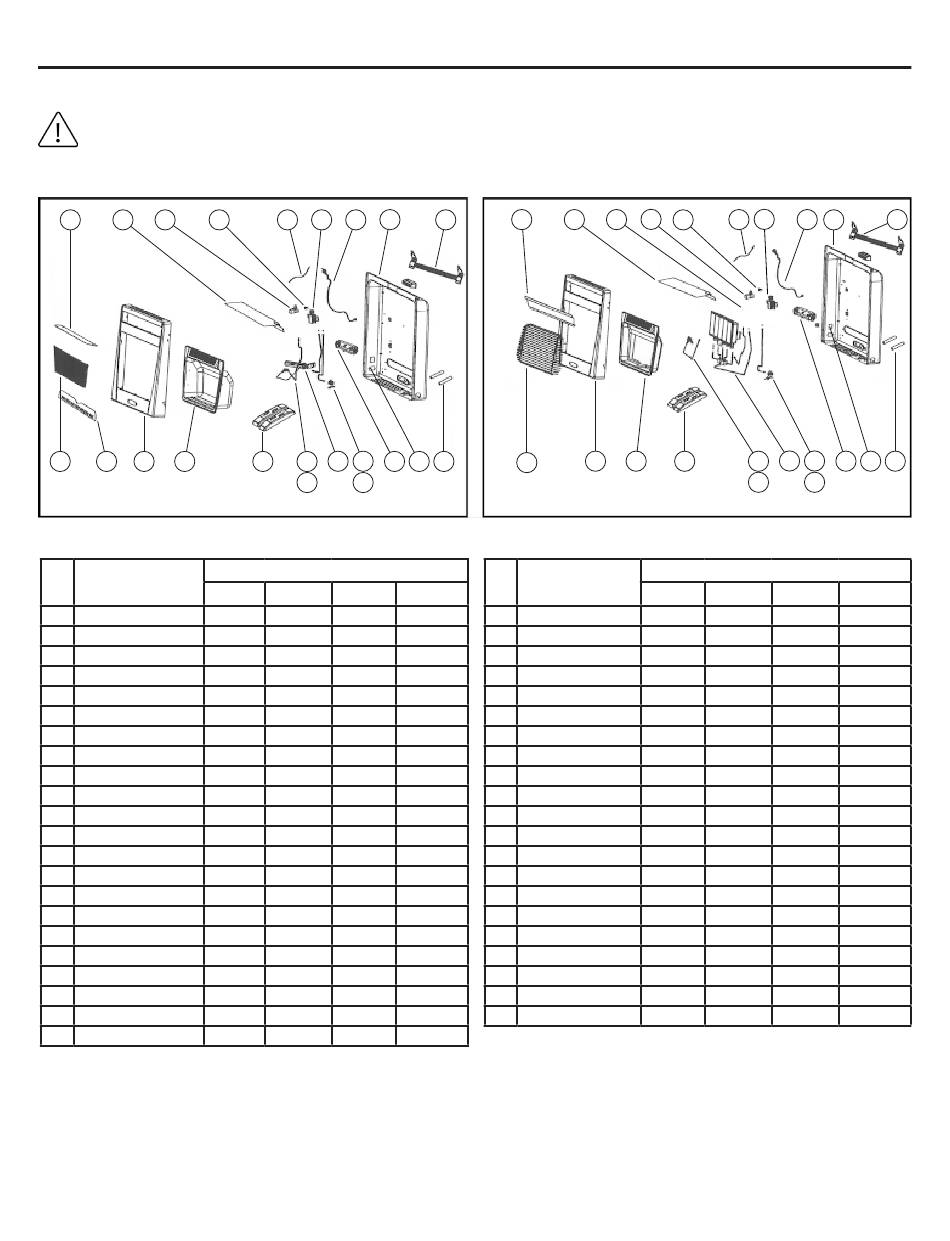

REPLACEMENT PARTS LIST

For replacement parts, contact customer service at 519-442-4848 or email service@signitepro.com
WARNING: Only use genuine replacement parts from the manufacturer SignitePro Inc. Using
any parts other than the original replacement parts may result in property damage, personal
injury or even death.
10 7 12 13
14 11 1 22
CA30000 B
BLUE FLAME MODELS
NO. DESCRIPTION
CA30000B
1 Front Panel assembly
2 Burner Assembly (BF)
3 ODS - (LP) Propane Pilot
4 ODS - (NG) NG Pilot
5 Ignition Wire
6 Thermostatic Gas Valve
7 Thermal Barrier
8 NG Regulator - B
9 LPG Regulator - BL
10 Bracket of Furnace
11 Furnace Supporter
12 Ignitor Module
13 Ignitor Bracket
14 Front Grille
15 Support Leg
16 Spacer
17 Rear Side - Outer Casing
18 Fan Assembly
19 Cord Wire with Plug
20 Mounting Bracket
21 Switch
22 Furnace
5 6 19 17
15 3 2 8 18
4 9
QTY.
CA30000BF CA30000BL CA30000BLF
1 1 1
1 1 1
--- --- 1
1 1 ---
1 1 1
1 1 1
1 1 1
1 1 ---
--- --- 1
1 1 1
1 1 1
1 1 1
1 1 1
1 1 1
2 2 2
2 2 2
1 1 1
--- 1 ---
--- 1 ---
1 1 1
--- 1 ---
2 2 2
20 21 7
21 16 1
12
CA30000 C
NO. DESCRIPTION
1 1 Front Panel assembly
1 2 Burner Assembly (IR)
1 3 ODS - (LP) Propane Pilot
--- 4 ODS - (NG) NG Pilot
1 5 Ignition Wire
1 6 Thermostatic Gas Valve
1 7 Thermal Barrier
--- 8 NG Regulator - B
1 9 LPG Regulator - BL
1 10 Ignitor Module
1 11 Ignitor Bracket
1 12 Front Grille
1 13 Support Leg
1 14 Spacer
2 15 Rear Side - Outer Casing
2 16 Fan Assembly
1 17 Cord Wire with Plug
1 18 Mounting Bracket
1 19 Switch
1 20 Furnace
1 21 IR Furnace Deflector
2
28
12 10 11 5 6
20 13 3
4
INFRARED MODELS
QTY.
CA30000C CA30000CF CA30000CL
1 1
1 1
--- ---
1 1
1 1
1 1
1 1
1 1
--- ---
1 1
1 1
1 1
2 2
2 2
1 1
--- 1
--- 1
1 1
--- 1
--- 1
1 1
17 15 18
2 8
16 19 14
9
CA30000CLF
1 1
1 1
1 1
--- ---
1 1
1 1
1 1
--- ---
1 1
1 1
1 1
1 1
2 2
2 2
1 1
--- 1
--- 1
1 1
--- 1
--- 1
1 1
