INSTALLATION
WARNING: Failure to properly install all wall hanging parts may result in property damage,
personal injury, or even death

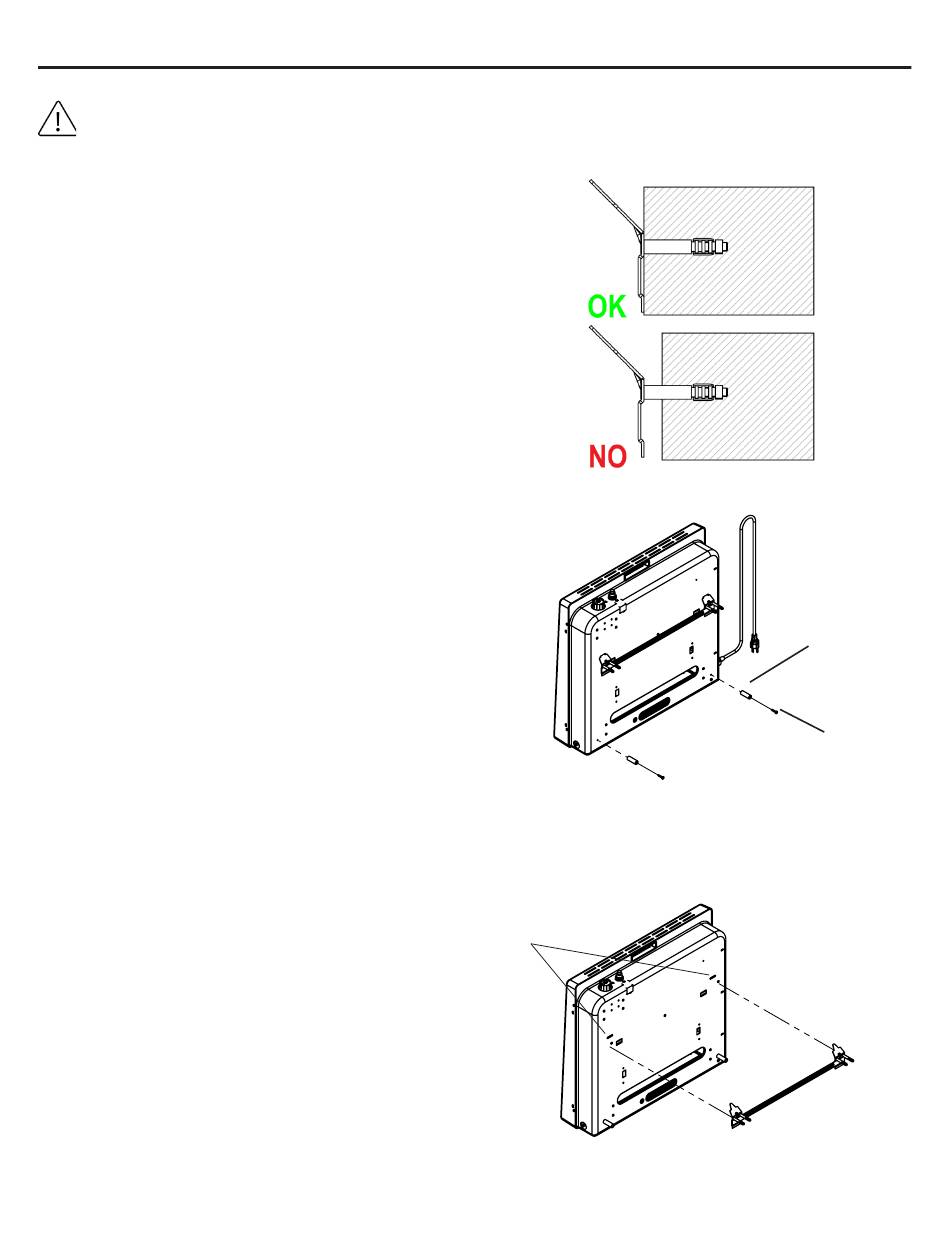

Fig. 11:
•
Insert Rawl Plugs into wall after drilling holes.
•
Screw brackets into Rawl Plugs ensuring that brackets
are completely in the wall
Fig. 12:
•
Locate spacer mounting holes on lower left/right of
appliance
•
Screw 2 spacers into appliance using 2 wall hanging
spacer screws (4.8 x 25)
•
Check that the spacers are secure before mounting
appliance
Fig. 13:
•
Locate Mounting Slots on upper left/right of
appliance
•
Carefully lift appliance onto Wall Bracket
•
Check that appliance is secure in place after
wall mounting
Mounting
Slots
16
Spacer
Wall Hanging
Spacer Screw
