SignitePro CA30000 Manual page 15

INSTALLATION
WALL MOUNTING
Wall mount procedure
ELECTRICAL, PLUMBING OR GAS LINES MAYBE IN WALL.
Before cutting, drilling or hammering verify their location. If needed,
contact your electrician, plumber or service person

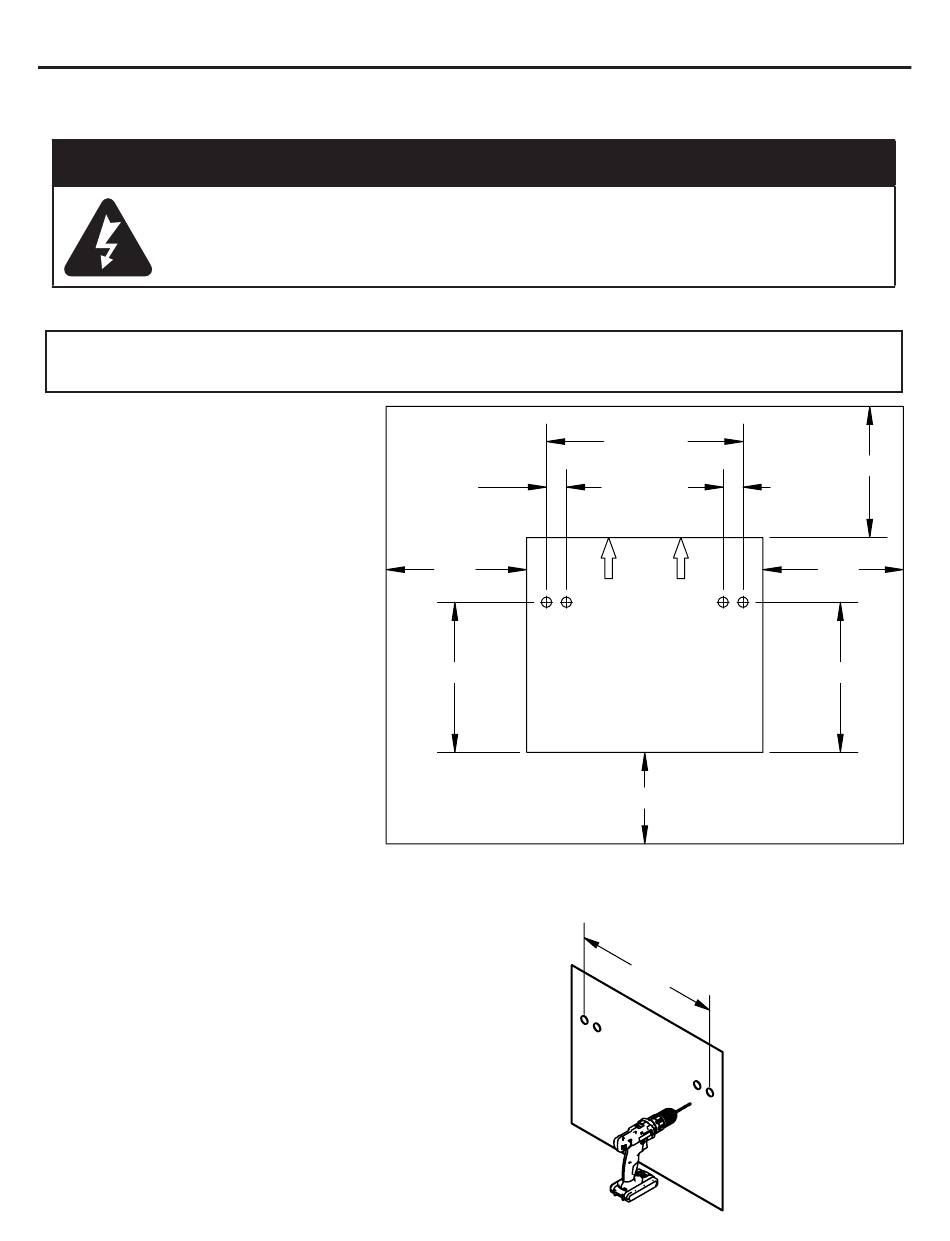

Mark Screw Locations on Wall as per Figure 9 below:
IMPORTANT: If wall mounting an infrared unit, the distance from the floor to bottom
of the appliance must be at least 10 in. high
Fig. 9:
• Mark holes at locations shown in
Fig. 9 using a square
• Check that holes are straight and
level before drilling by using a
level
Fig. 10:
• Drill holes at marked locations using:
• A 9/64 in. drill bit for wall stud mounting
• A 5/16 in. drill bit if using expansion brackets for hollow
wall mounting. Drill 5/16 in. holes at least 1 in. deep
WARNING
1 1/4 in
8 in
14 11/16 in
WALL MOUNT GUIDE
Fig. 9: Wall mounting dimensions
15
21 1/4 in
1 1/4 in
UP
1 1/4 in
21 1/4 in
36 in
8 in
14 11/16 in
