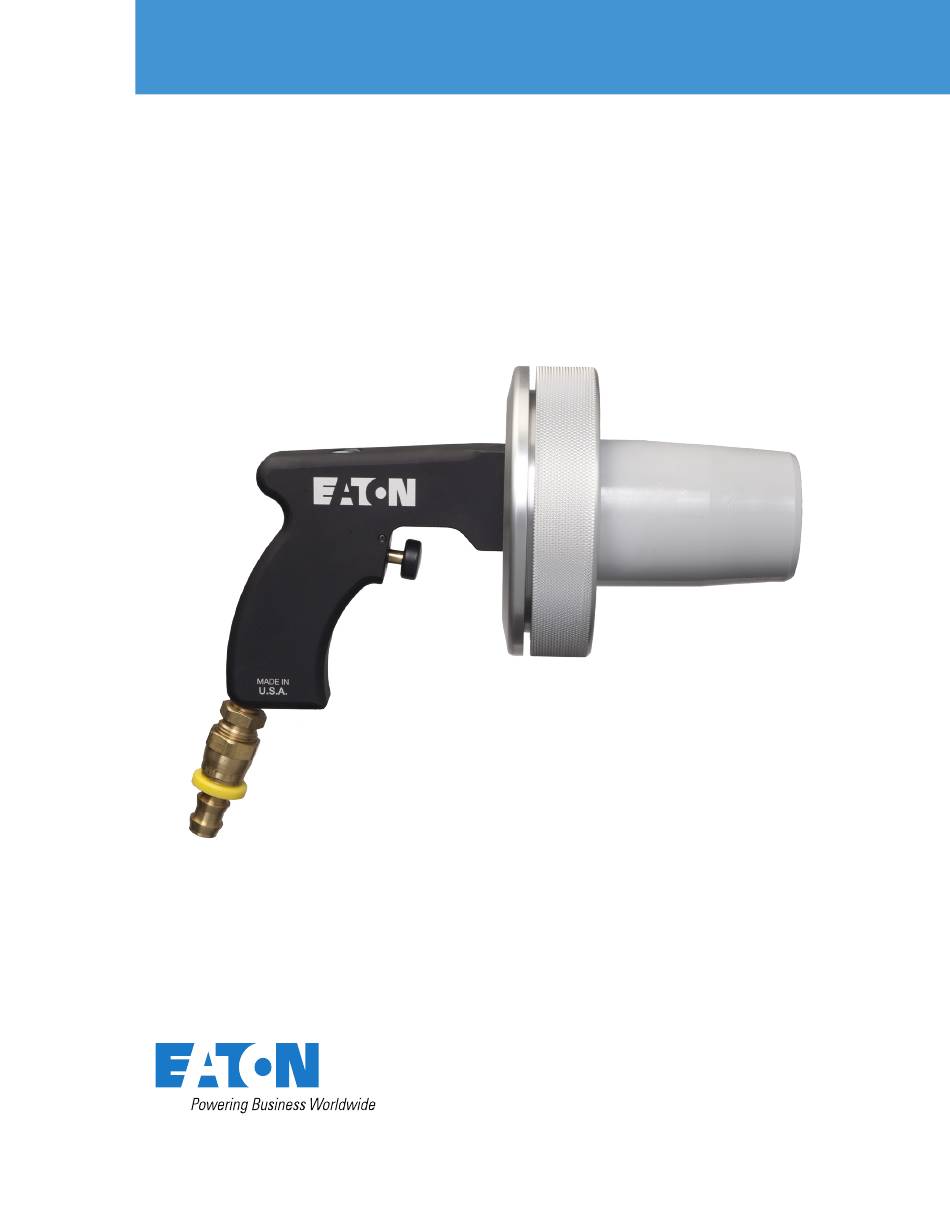

- Page 1 FT1455-L3 Hand Launcher Operating Instructions...
-
Page 2: Table Of Contents
80 P .s.i. - 110 P .s.i. (5.5 - 7 .5 Bar) maximum. Clean, dry, filtered air or inert gas source is required. 5 micron filter and regulator with gauge are recommended. EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015... -
Page 3: General Information
General Information Preparation Step 1: Nozzle and projectile selection The Eaton’s FT1455-L3 Hand Held Launcher was designed to shoot a projectile through hose and tube assemblies to strip out Select nozzle and projectile from Nozzle and Projectile selection internal contamination such as rubber dust and metal particles... - Page 4 (See Figure 5 & 6). Figure 5 Figure 7 Note: Failure to secure locking ring may cause serious injury to the operator and or damage to the launcher. (See Figure 7). EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015...
-
Page 5: Operation
Several projectiles may need to be fired to end of the hose, tube or pipe you are cleaning. thoroughly remove contaminates. (See Figure 9). (See Figure 8). Figure 8 Figure 9 EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015... -
Page 6: Nozzle And Projectile Selection Chart
The above sizes are recommendations. Due to different types of fittings, and the amount ofcontamination in the line, the size projectile may need to be adjusted. EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015... -
Page 7: Tube Sizing Chart - Nominal Inch
Always use an Eaton projectile after the use of an abrasive projectile. Tube projectiles should be used to remove mandrel lubricants, grease and oil. -
Page 8: Recommended Sizing Chart - Metric Tubing
Always use an Eaton projectile after the use of an abrasive projectile. EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015... -
Page 9: Pipe Sizing Chart
Pipe must be straight for this projectile. NOTE: To ensure cleanliness, an Ultra Clean projectile must be used after abrasive. Please call if you need help in sizing your application for the correct nozzles and projectiles. EATON FT1455-L3 Hand Launcher Operating Instructions E-HOAI-CC003-E May 2015... -
Page 10: Contact Information
Fax: 952-294-7722 Fax: +41 (0) 21 811 4601 Tel: (+86 21) 5200 0099 www.eaton.com/hydraulics Fax: (+86 21) 2230 7240 Assembly Equipment © 2015 Eaton Technical Support | Service | Spare Parts All Rights Reserved www.EatonCrimperSupport.com Printed in USA 1-888-AT-LOMAR Document No. E-HOAI-CC003-E...
