Rugby 100
User Manual
Version 1.5
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rugby 100 and is the answer not in the manual?

Questions and answers

Ron Gray
May 28, 2025

My laser receiver tells me when l need to go lower but not when it’s on level nor when it needs to go higher.

1 comments:
Mr. Anderson
May 28, 2025

The issue with the Leica Rugby 100 laser receiver not indicating when it is level or needs to go higher could be due to reversed polarity during a battery hookup, which may have damaged the internal electronics. This could affect the receiver's ability to detect the laser beam or display elevation changes properly.

This answer is automatically generated

Summary of Contents for Leica Rugby 100

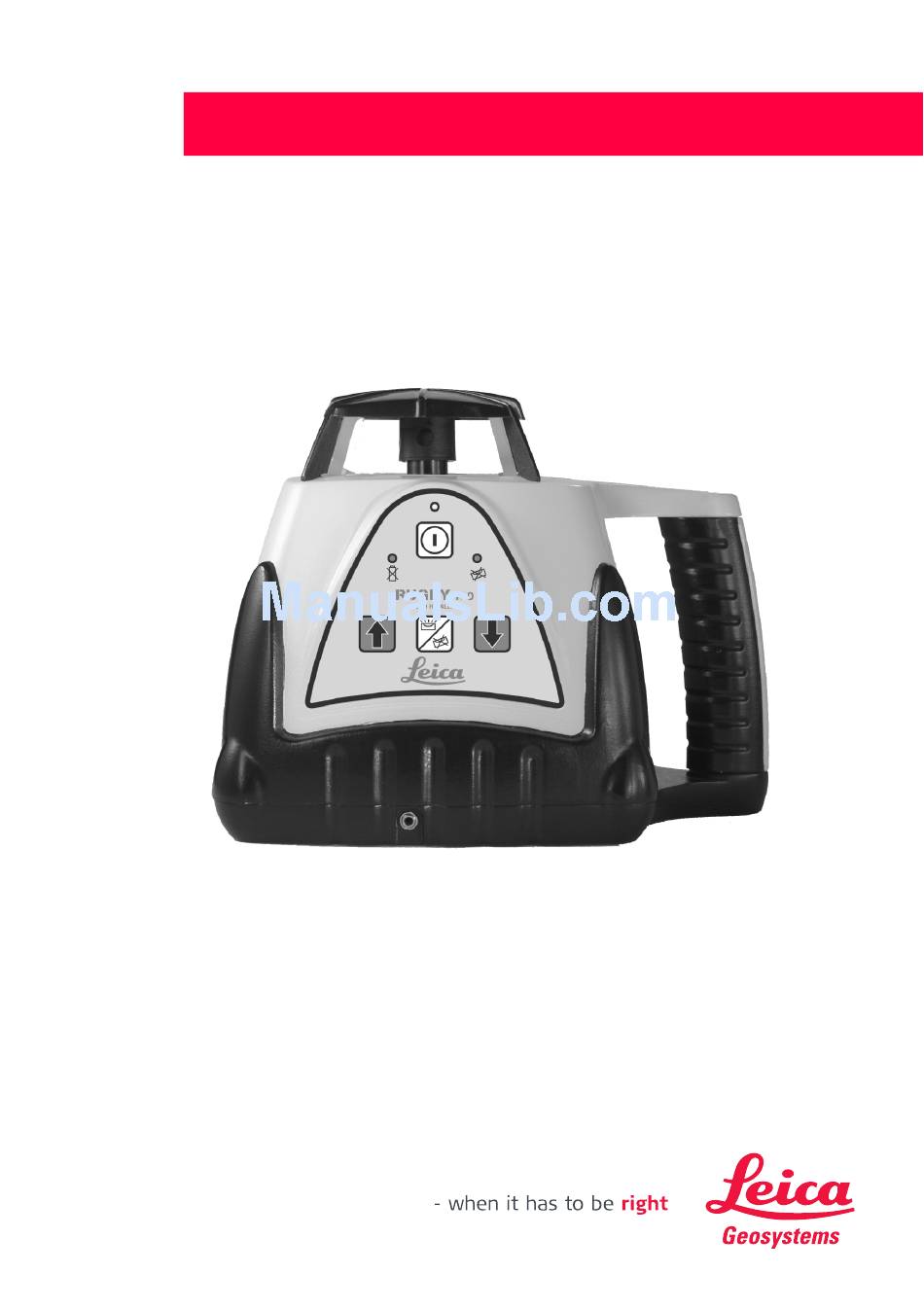

  • Page 1 Rugby 100 User Manual Version 1.5 English...
  • Page 2 Model-Serial Number: 100-_____________ Date of purchase:_____________ Copyright Notice Copyright 2007 by Leica Geosystems AG. All rights reserved Leica Geosystems Proprietary Information The information/data contained herein is proprietary information of Leica Geosystems AG and is furnished for your controlled use, and shall not be copied or otherwise reproduced, nor in any manner disclosed to any third party, without Leica Geosystems’s prior written consent.
  • Page 3: Table Of Contents

    Table of Contents Introduction and general operation ........4 The Rugby 100 Operating Instructions ........4 Buttons .......... 6 LED Indicators ......8 Basic operation ......10 Automatic Operation ....10 Manual Operation ......10 Using Manual Operation with Grade........... 11 NiMH Battery Pack ....
  • Page 4: Introduction And General Operation

    Introduction and general operation The Rugby 100 Operating Instructions The Rugby 100 is easy to understand and simple to use. The picture below gives a brief explanation of each of the switch buttons and the LED indicators. Rugby100-1 Rugby_100_overview.eps 1 Laser Emission Indicator Indicates when the laser is leveling (flashing) or is level and the beam is on (solid).
  • Page 5 If an alert condition exists, all three LED indicators will flash simultaneously (5 Hz). H.I. Alert Automatic The Rugby 100 will always start up with the H.I. Alert activated. The Rugby must reach a completely level position and remain undisturbed for 30 seconds before the Alert becomes active (above s/n 100-5000).
  • Page 6: Buttons

    • Press the Off/On Power Button once to turn on the Rugby 100 at • Pressing the arrow buttons will 10 rps. move the head in small increments.
  • Page 7 LED's will flash twice to indicate that the H.I. function has been enabled or disabled. The laser must be in automatic to enable/disable the H.I. Alert Function. (Incorporated on units with serial numbers 100-5000 and above) Rugby 100-1.5.0en Buttons...
  • Page 8: Led Indicators

    LED Indicators Elevation Alert (H.I.) Indication: The H.I. Alert function will automatically turn on when the Rugby 100 is powered up. All three LED's will flash twice to indicate that the automatic H.I. AUTO H.I. ALERT Alert function is enabled. Thirty seconds after the Rugby has leveled, the H.I.
  • Page 9 LED’s will turn on at the same time. The operating temperature range for the Rugby is -4° to +122 °F (-20 ° to 50 °C). Rugby 100-1.5.0en LED Indicators...
  • Page 10: Basic Operation

    Basic operation Automatic Operation Manual Operation • Set up the Rugby 100 on a 5/8”-11 Tripod or flat level surface. • Press the Off/On Power Button once to turn on the laser at 10 rps or twice at 5 rps.
  • Page 11: Using Manual Operation With Grade

    Rod-Eye receiver. • Adjust the manual grade until the center bar and/or solid tone is heard from the receiver. Rugby 100-1.5.0en Basic operation...
  • Page 12: Nimh Battery Pack

    AC adapter into the • Refer to your Rugby User Manual appropriate wall outlet. The NiMH for proper operation. Battery Pack can also be charged • Contact the nearest authorized separately from the laser. service center. Rugby 100-1.5.0en NiMH Battery Pack...
  • Page 13: Technical Data

    Technical Data Rugby 100 Operating Range ........... 1000’ (300 meters) Diameter Self-Leveling Accuracy ....± 1/16” at 100 feet (± 1.5 mm at 30 meters)* Self-Leveling Range ..................± 5° Manual Grade ..................Up to 10% Height ................... 7.8” (197 mm) Width.....................
  • Page 14: Warranty

    Warranty Leica Geosystems warrants the Rugby The user of the Rugby 100 is expected 100 to be free if defects in materials to follow all operating instructions, and workmanship under normal use periodically checking the instrument and service for a period of 24 months, and the work as it progresses.
  • Page 15: Calibration

    Align the second axis of the Rugby by rotating it 90° so that this axis is now square with the wall. Allow the unit to self-level completely, and then mark the position of the beam (position 3). Rugby 100-1.5.0en Calibration...
  • Page 16 1. When the arrow button is pressed, the top laser emission indicator LED will turn off for one half second to indicate that a key has been pressed. Rugby 100-1.5.0en Calibration...
  • Page 17: Troubleshooting

    10 rps. Press a third time to turn the unit off. The Rugby 100 is working, The Rugby 100 must be in automatic mode to but it does not self-level. self-level. •...
  • Page 18 Symptom Possible Causes and Solutions The Laser Emission, Low The Rugby 100 has reached a servo limit or is Battery and Manual Mode outside of its self-leveling range. Indicators are flashing • In automatic mode the Rugby 100 must be set sequentially.
  • Page 19: Care And Transport

    When dispatching the Temperature Limits (-40° to instrument, always use the complete 70°C / -40° to 158°F) Respect the original Leica Geosystems packaging temperature limits when storing the (case and cardboard box). instrument, particularly in summer if the instrument is inside the vehicle.
  • Page 20: Safety Directions

    Intended Use of Instruments • Use with accessories from other manufacturers without the prior Permitted uses express approval of Leica The Rugby 100 is designed and Geosystems. suitable for the following applications, • Inadequate safeguards at the within the limits of is intended measuring station (e.g.
  • Page 21: Responsibilities

    • To inform Leica Geosystems Responsibilities immediately if the equipment Responsibility for the manufacturer becomes unsafe. of the original equipment Leica Hazards of Use Geosystems AG, Heerbrugg (hereinafter referred to as Leica Main hazards of use Geosystems): Leica Geosystems is responsible for...
  • Page 22 Avoid subjecting instructions. the equipment to mechanical shock. Never position the instrument on the tripod baseplate without securely tightening the central fixing screw. If the screw is loosened, always remove the instrument immediately from the tripod. Rugby 100-1.5.0en Safety Directions...
  • Page 23 Always prevent access to the product by unauthorized personnel. Product specific treatment and waste management information can be downloaded from the Leica Geosystems home page at http:// www.leica-geosystems.com/treatment or received from your Leica Geosystems dealer. Rugby 100-1.5.0en Safety Directions...
  • Page 24: Laser Classification

    Beam Only Leica Geosystems authorized workshops are entitled to repair these products. The rotating laser Rugby 100 produces a visible red laser beam which emerges from the rotating head. The product is a Class 2 laser product in accordance with: •...
  • Page 25: Electromagnetic Compatibility (Emc)

    Although the laser meets the strict Electromagnetic regulations and standards which are in Compatibility (EMC) force in this connection, Leica Geosystems cannot completely The term "electromagnetic exclude the possibility that the laser compatibility" is taken to mean the unit may be disturbed by very intense capability of the laser unit to function electromagnetic radiation, e.g.
  • Page 26 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. WARNING: Changes or modifications not expressly approved by Leica Geosystems could void the user's authority to operate the equipment. Rugby 100-1.5.0en Safety Directions...
  • Page 27 Rugby 100-1.5.0en Safety Directions...
  • Page 28 9001) and Environ- mental Management Systems (ISO standard 14001). Leica Geosystems AG 727261-1.5.0en CH-9435 Heerbrugg (Switzerland) Printed in Switzerland - Copyright Leica Geosystems AG, Heerbrugg Phone +41 71 727 31 31 Switzerland 2007 Fax +41 71 727 46 73 (Original Text) www.leica-geosystems.com...
