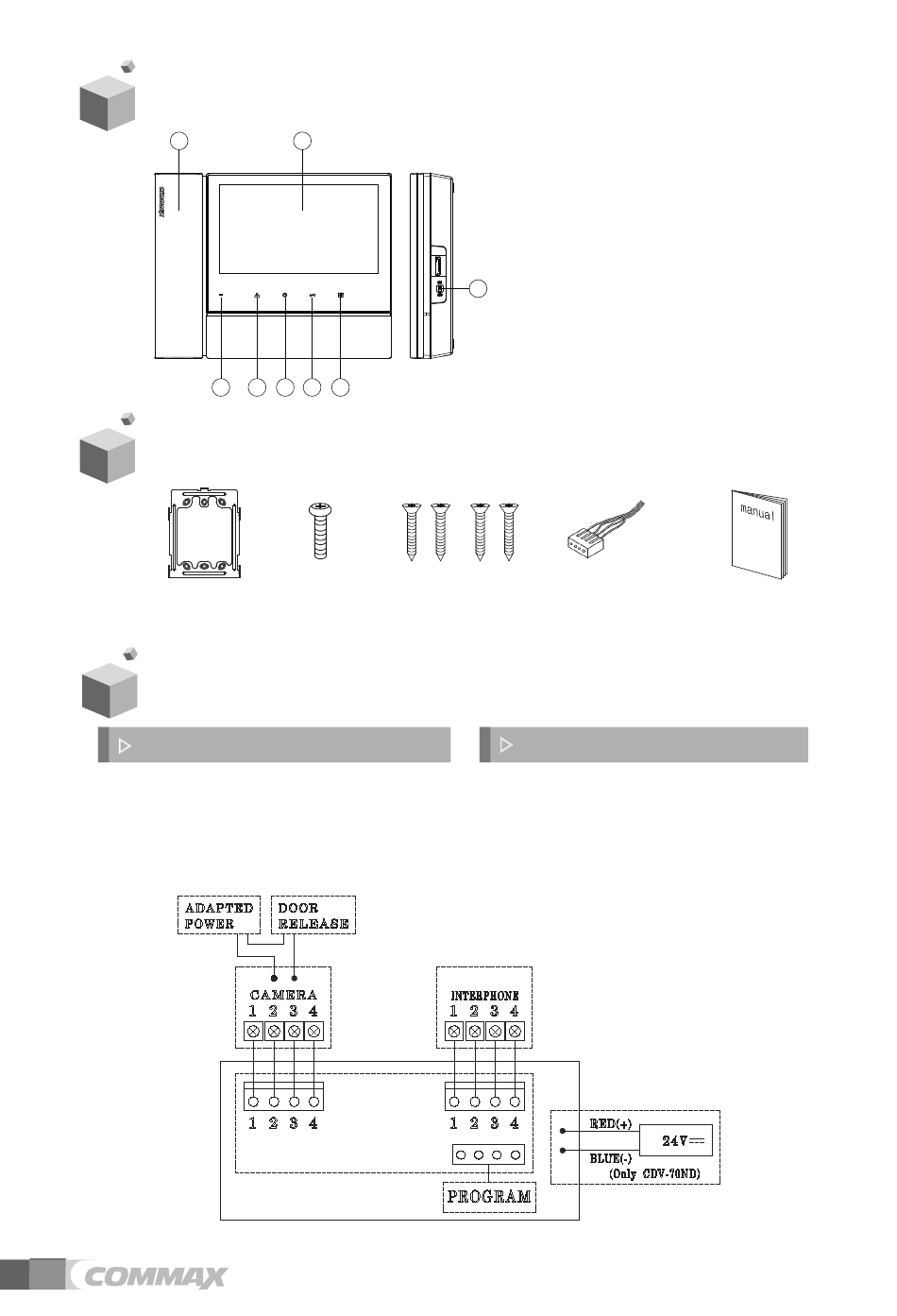

3. Parts Names
1

4. Package Contents

Wall bracket
for monitor

5. Wiring and Connection Instructions

▷ Polarity of the camera connector
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+12V)
4. White: Video
4
2
3 4 5 6 7
Monitor fixing
screw
(1EA)
(1EA)
① HANDSET
② TFT-LCD
③ POWER LED
④ MONITORING BUTTON
⑤ INTERPHONE BUTTON
8
⑥ DOOR OPEN BUTTON
⑦ MENU BUTTON
⑧ POWER SWITCH
Wall bracket mounting Connector
screw
(4EA)
▷ Polarity of interphone connector
1. Red: Talk (Audio)
2. Blue: GND
3. Yellow: Power (+14V)
4. White: Call signal
4
User Manual
(1EA)
(1EA)
